Having trouble setting up capstan v2 with new wAP ac / ros 6.35.2

RouterOS Wireless Networking
1

Router - RB850Gx2 - ros 6.35.2
AP1 - wAP ac - ros 6.35.2
AP2 - wAP ac - ros 6.35.2

wireless - cm2 6.35.2
testing on AP2 - 2.4GHz

I cannot find the ssid I defined.
log error: sometime shows: 4-way handshake timeout on router.

router settings:

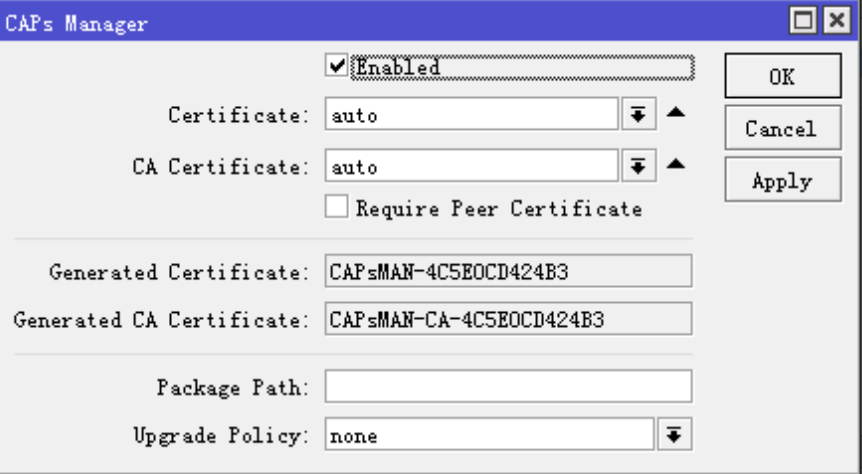

Screen Shot 2016-05-21 at 11.21.48 PM.png

[admin@MikroTik-Router] > caps-man interface print
Flags: M - master, D - dynamic, B - bound,
X - disabled, I - inactive, R - running
 #      NAME                  RADIO-MAC         MASTER-INTERFACE
 0 M  XI CAP-AP1-2.4G          E4:8D:8C:4B:27:73 none
 1 M B  CAP-AP2-2.4G          E4:8D:8C:72:C8:49 none
 2 M  XI CAP-AP2-5G            E4:8D:8C:72:C8:48 none




[admin@MikroTik-Router] > caps-man provisioning print
Flags: X - disabled
 0   radio-mac=E4:8D:8C:4B:27:73 hw-supported-modes="" identity-regexp="" common-name-regexp=""
     ip-address-ranges="" action=create-dynamic-enabled master-configuration=2.4G
     slave-configurations="" name-format=cap name-prefix="2.4G-APs"

 1   radio-mac=E4:8D:8C:72:C8:49 hw-supported-modes="" identity-regexp="" common-name-regexp=""
     ip-address-ranges="" action=create-dynamic-enabled master-configuration=2.4G
     slave-configurations="" name-format=cap name-prefix=""




[admin@MikroTik-Router] > caps-man configuration print
 0 name="2.4G" mode=ap ssid="UNI-MikroTik" country=china security=WAP2-AES
   datapath.bridge=bridge-local channel=2.4GHz




[admin@MikroTik-Router] > caps-man channel print
 0 name="2.4GHz" band=2ghz-onlyn




[admin@MikroTik-Router] > caps-man security print
 0 name="WAP2-AES" authentication-types=wpa2-psk encryption=aes-ccm group-encryption=aes-ccm
   passphrase="password"

NO ACL.

[admin@MikroTik-Router] > caps-man remote-cap print
 # ADDRESS                                                     NAME        STATE            RADIOS
 0 E4:8D:8C:72:C8:47/55454                                     CAP-E48D... Run                   1




[admin@MikroTik-Router] > caps-man radio print
Flags: L - local, P - provisioned
 #    RADIO-MAC         INTERFACE               REMOTE-CAP-NAME              REMOTE-CAP-IDENTITY
 0  P E4:8D:8C:72:C8:49 CAP-AP2-2.4G            CAP-E48D8C72C847             MikroTik-AP2

No registration table.




On wAP ac

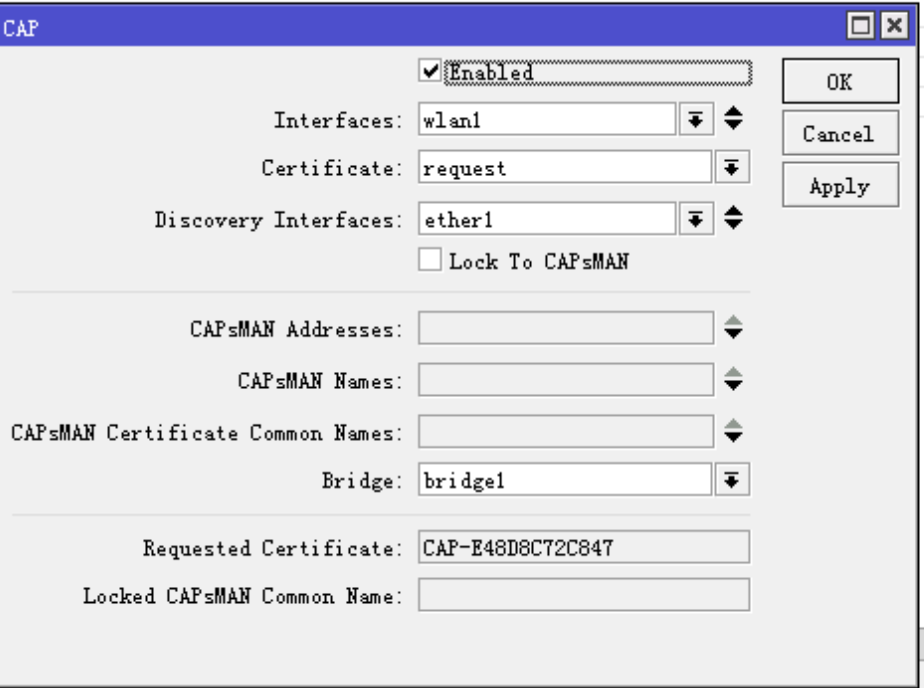

Screen Shot 2016-05-21 at 11.22.59 PM.png
Screen Shot 2016-05-21 at 11.20.27 PM.png

[admin@MikroTik-AP2] /interface wireless> print
Flags: X - disabled, R - running
 0  R ;;; managed by CAPsMAN
      ;;; channel: 2442/20-Ce/gn(20dBm), SSID: UNI-MikroTik, local forwarding
      name="wlan1" mtu=1500 l2mtu=1600 mac-address=00:00:00:00:00:00
      arp=enabled interface-type=Atheros AR9300 mode=ap-bridge
      ssid="UNI-MikroTik" frequency=auto band=2ghz-onlyn
      channel-width=20/40mhz-Ce scan-list=default wireless-protocol=any
      vlan-mode=no-tag vlan-id=1 wds-mode=disabled wds-default-bridge=none
      wds-ignore-ssid=no bridge-mode=enabled default-authentication=yes
      default-forwarding=yes default-ap-tx-limit=0 default-client-tx-limit=0
      hide-ssid=no security-profile=default compression=no

I googled and searched this forum however still cannot solve this problem.

anyone can help?

2

Hmm. Have you tried clearing the CAPs and CAPsMAN configuration and starting from scratch, then slowly add each configuration until you get the error? If you have upgraded, sometimes the previous configuration is not liked by the newer packages etc.. Also, try using the new wireless-rep packages on both before trying what I said above as this may solve it.

Hope this helps,

TonyJr

3

Same problem! ROS 6.34.6 bugfix. CAPsMAN RB2011iL-IN + 2x wAP ac. On WLAN 5GHz - NO PROBLEMS! On 2GHz - we have 2 errors in log:

  1. disconnected, 4-way handshake timeout
  2. disconnected, received disassoc unspecified

OMG! WTF!
