Help me with Layout and setup please

RouterOS Forwarding Protocols
1

Hi there

I am stuck, and my mind is standing still.

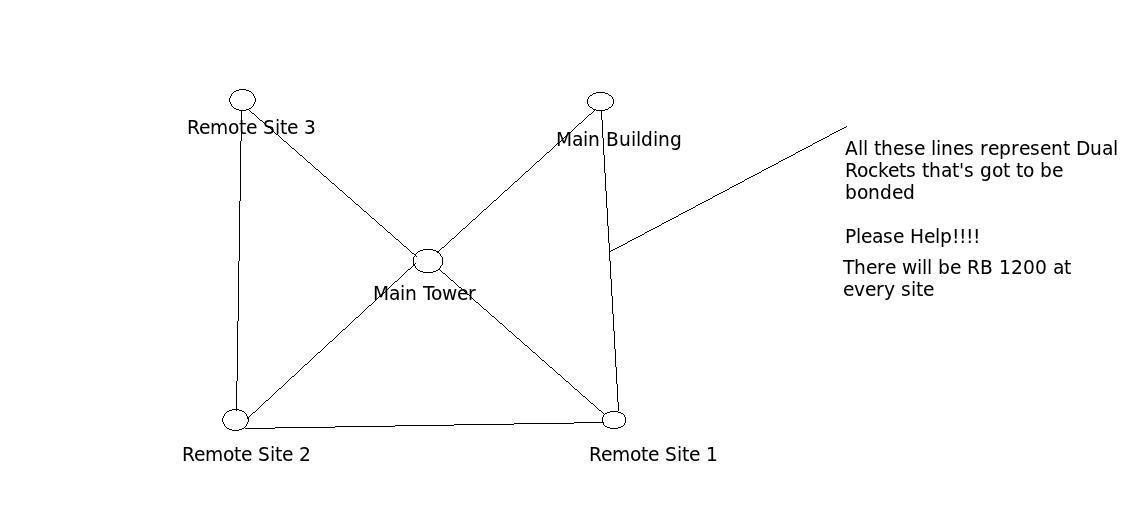

Cant you please help me with the setup on the attached layout please.

I really need your help here.

I will be using the 172.20.0.0/24 range.

Please I am asking you guys very nicely to help me with the layout and setup on the mikrotiks.

There will be routerboard 1200’s at all sites and the main tower.

each line represents dual ubnt rockets, so each line represents a full duplex link.

There must be auto failover as well for all of these lines.

Again.Please can you help me. I would really appreciate it if you guys can help me with this layout. Pretty pretty please.

Thanks

JP

2

Hi!

It’s very easy.

Create a bridge in each board, add all interfaces in the bridge, active RSTP in ip/bridge and read about RSTP to configure cost on each interface in ip/bridge/port. Change priority of the bridges too.
