Help needed to setup mgmt 1G network and 10G network for storage traffic

RouterOS General
1

Hi,

At first, I’m not a network guy, just a server guy, who is building Hyperconverged (virtualization hosts with local clustered storage / node (RHHI)) setup of 3 servers that have 2x 1GiB nics and 2x10GiB nics.
I just bought following MikroTik switches:
1xCRS317-1G-16S (for Storage net, vlan22)
1xCRS326-24G-2S (for MGMT net, vlan21)
6x SFP+ DAC
2x S+RJ10

Already have 3 DAC cables from C…

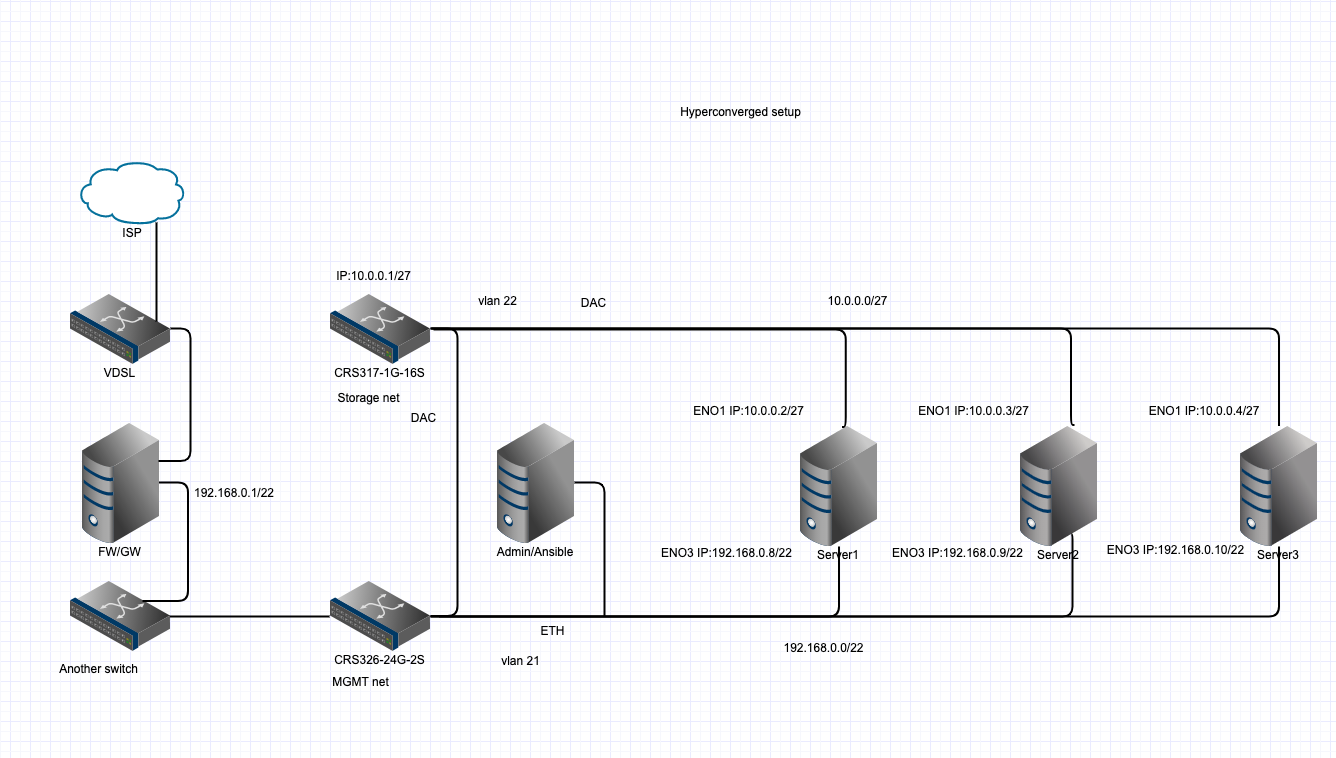

I draw a quick sketch for the network that I need to setup, but as I’m new with Mikrotik equipment and setting up networking stuff as My self at homelab.

Server side is pretty ready, just waiting switches to arrive from the supplier later this week.
Servers are running RedHat Virtualization hosts + GFS clustered storages and when ready they will be running around 15 or more VMs

Any suggestions for configuring such a setup as I draw?
Willing to learn RouterOS:)

  1. Need to learn how these are configured to be accessed CLI/WEB interface. (Knowledge gained:))
  2. Linking them together. (Trunk?)
  3. Connect servers to MGMT net (Vlans, routes?)
  4. Connect servers to Storage net (Vlans, Routes?) (Bonding requires second switch)
  5. Secure the setup, there is no direct access to internet, there is firewall/gateway machine between that first switch and VDSL router to internet.

Updated picture with VDSL & FW/GW
Regards
SJo

2

Got the gear to hands and cabled them.

Link between:
328 sfp+P1 to 317 sfp+P1 with 1m DAC, speed set to 10G on both ends.
Setted passwords for both.
From gw/fw pings to ip of 328, but not ip of 317

Do I have to reset configuration for both, before starting as there is bridge on all the ports?

Any suggestions for the FW version?
On 317 fw/ver:6.46.2(stable)
On 326 fw/ver:6.46.2(stable)

At the moment, no working network:/

Any ideas/ suggestion for getting things rolling, I have tried to read wiki for routing and initial settings.
