hello guys,
i sorry that im disturbing here, but i did not find working examples over the internet…
i bought CCR1036 as my main router and i need to get tagged VLAN through it…

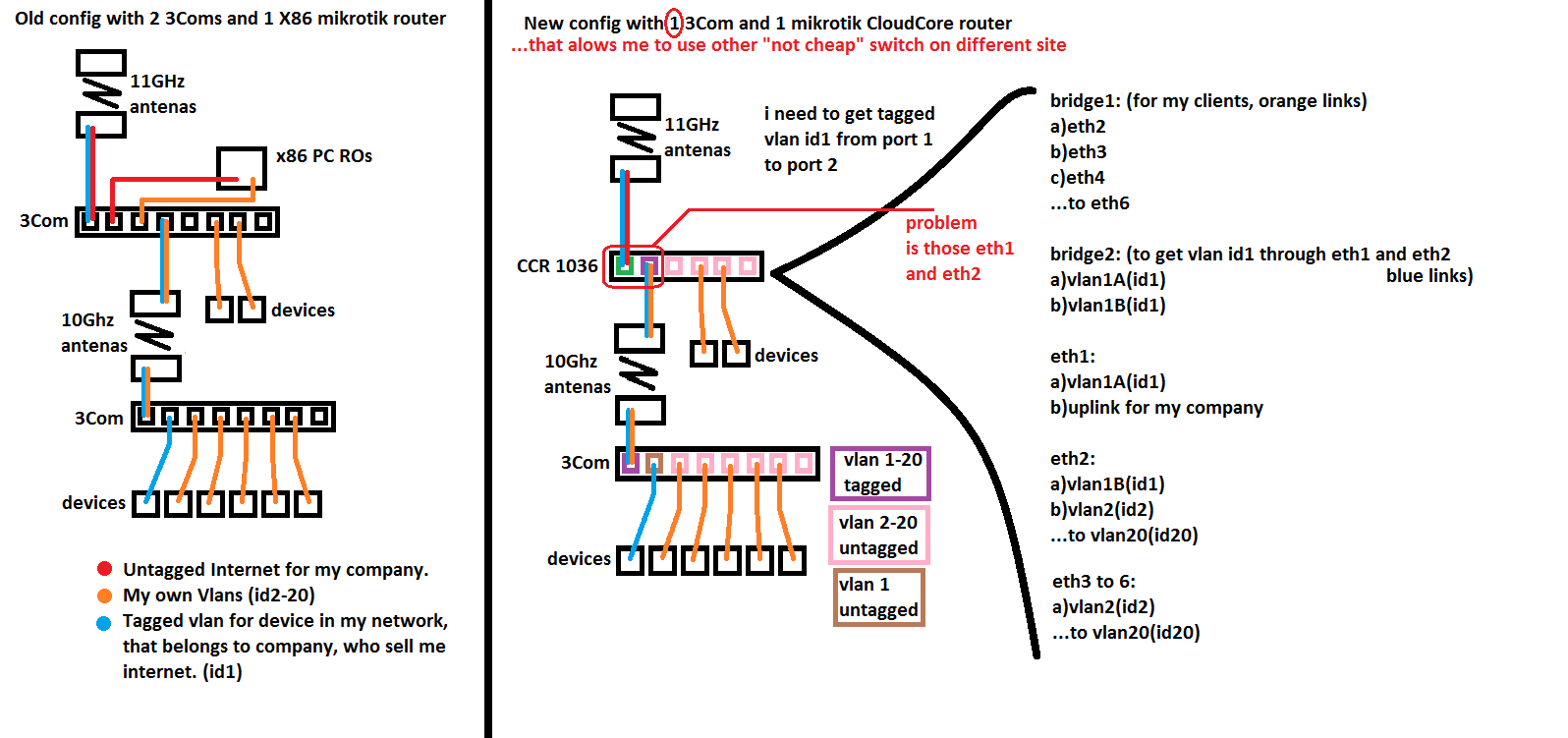

here is what i have and what i want to have:
IMAGE HAS ERROR, NOW ITS OK:
Post your export.
Sent from my SCH-I545 using Tapatalk
i am sorry, i am not able to post it, because i needed to change x86 Atom with CCR very fast so for now CCR works the same way like Atom - only 2 ethernets online (WAN, LAN)
but is is the 12GE ports, i need to use 1/0/1 to uplink (tagged, id76) + vlan id185 directly to port 2, where is 10G antena to other place where is the device which need vlan id185 + my vlans
BUT! on port 2-12+4spf i need bridge (LAN - speed regulations)
so config was like this:
Bridges: 2
bridge1 has 2 items:
vlan185-1
Vlan185-2
bridge2 has X items:
port2
port3
port4
port5
port6
port7
sfp1
sfp2
sfp3
sfp4
ports:
port1:
vlan76(id76) - my uplink
vlan185-1(id185)
port2:
vlan185-2(id185)
vlan2970-2985 (my vlans)
(bridge2 was for 185s, and both was on the right ports, but in office i tried to use 2 tagged notebooks on vlan185 to port 1 and 2 and they could not work together, i just need some way to get 3Com from that site and let the 2nd company manage and ping their device on their vlan185
hope this helps…
I guess I’m confused. Do you have it configured at all? I.e. do you need help fixing a broken config or do you need to configure it from scratch?
i dont wat to put ccr down, but i can use rb751 to make it that way what i tryed with ccr and i will put the config here, i think its the best way, thanks a lot!
If the CCR is running why don’t you just post its config?
it is, but with old config (left picture), that means i use only WAN and LAN and vlans managed by 3Com Switch, and i cant just play with it, cuz i have homes and offices and buildings connected to internet
i am only not able to get tagged vlan through it, just as layer3 comunication
i needed to instal CCR fast after buy cuz x86 was weak for my traffic, thats why i have to put it there with old config (2ethernets used)
Ah… Ok.. I’ll look at the config after you post what you got.
