HELP Using Vlans and Loopback IP in RB

RouterOS General
1

Hello everyone

I am new in mikrotik, and i have a little issue

My scenario as below

i got PTP 172.16.2.2/30 from ISP with Public IP 41.74.100.1/24 and i just seperate these IP to the customers as needs and every thing is just fine, every customer using the desired subnet and VLAN.

i just create another Vlan to serve home users with IP 10.170.10.1/23 and add PPPoe Server with profiles and secrets and IP POOL (10.170.10.2-10.172.11.254)
the connection between the clients and the PPPoE service it’s just fine too

My problem is i Can’t get internet in this Router AS Gateway to NAT these PPPoe Users

is that possible to create Loopback IP or something else to get internet in the router as a gateway to PPPoE Users

i need help

Thanks
mikrotik scenario.png

2

I just create Bridge with Public IP 41.74.100.100/32
i can access the router from outside and ping the router with bridge IP

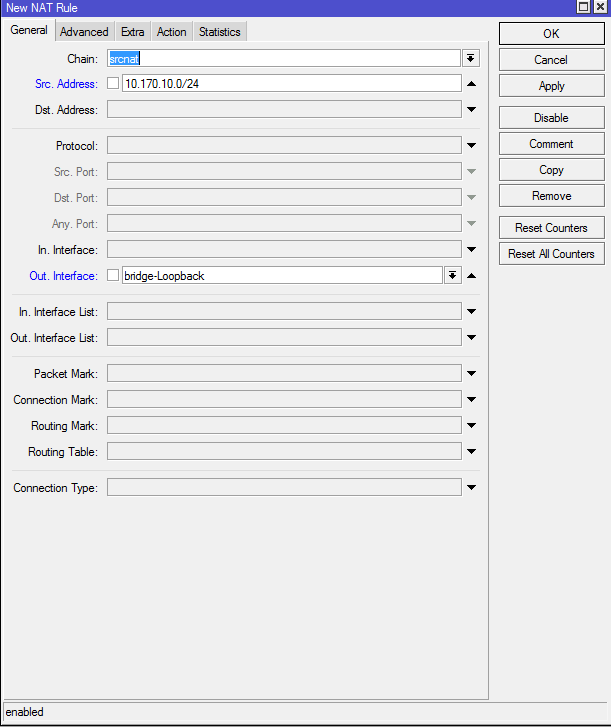

i just add ip Firewall/NAT and masquerade, as below

But still i can’t get internet
:confused: :confused:

3

Show us your /ip firewall nat print

4

Hello

5

Do not masquerade. Instead, add the src-nat rule on out-interface = your physical WAN interface, with action=src-nat and to-addresses the public one assigned to the loopback interface.

6

:smiley: :smiley: :smiley:
yes it’s working Now, but without using out-interface

thanks a lot pukkita for your help
