Hi all i readed all info about i can about the trunks and vlans for my mikrotik 750 and i’m really frusted i never had problems with pfsense or other linux versions with cisco .. i dont know what im doing wronk…
I created the vlan(s) in either1 (1,5,21) , i created the bridged for assign the ports 2 (for vlan1) 3(for vlan5) 4(for vlan21) , and in anyone doesnt detect the bridge … and not assigned the ip for vlans by dhcp …

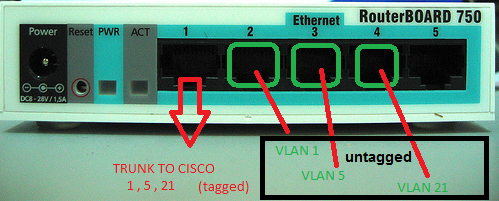

[cisco catalyst 2960] -G2 in trunk mode → port 1 routerboard 750 (1,5,21) bridge for all.
If anyone have any configuration or faq (not in wiki and google top 10) im very happyness for read it .
Thanks everyone.
Cisco–
1 default
5 VLAN_VIDEO
21 VLAN0021
!
interface GigabitEthernet0/2
description -Test Port-
switchport mode trunk
spanning-tree portfast trunk ( i tried to use vlan allowed 1,5,21 and doesnt work too.. .)
!

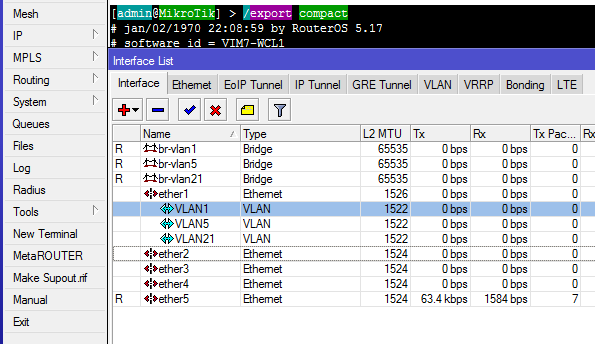

Mikrotik
Flags: D - dynamic, X - disabled, R - running, S - slave
NAME TYPE MTU L2MTU MAX-L2MTU
0 ether1 ether 1500 1526 1526
1 ether2 ether 1500 1524 1524
2 ether3 ether 1500 1524 1524
3 ether4 ether 1500 1524 1524
4 R ether5 ether 1500 1524 1524
5 VLAN1 vlan 1500 1522
6 VLAN5 vlan 1500 1522
7 VLAN21 vlan 1500 1522
8 R br-vlan1 bridge 1500 65535
9 R br-vlan5 bridge 1500 65535
10 R br-vlan21 bridge 1500 65535
[admin@MikroTik] /interface>
[admin@MikroTik] /ip address> print
Flags: X - disabled, I - invalid, D - dynamic
ADDRESS NETWORK INTERFACE
0 172.16.XXX.2/24 172.16.XXX.0 VLAN21
1 172.16.YYY.132/24 172.16.YYY.0 VLAN5
2 172.16.ZZZ.32/24 172.16.ZZZ.0 VLAN1
[admin@MikroTik] /interface vlan> print
Flags: X - disabled, R - running, S - slave
NAME MTU ARP VLAN-
0 VLAN1 1500 enabled
1 VLAN5 1500 enabled
2 VLAN21 1500 enabled
[admin@MikroTik] /interface bridge> print
Flags: X - disabled, R - running
0 R name=“br-vlan1” mtu=1500 l2mtu=65535 arp=enabled
mac-address=00:00:00:00:00:00 protocol-mode=stp priority=0x8000
auto-mac=no admin-mac=00:00:00:00:00:00 max-message-age=20s
forward-delay=15s transmit-hold-count=6 ageing-time=5m
1 R name=“br-vlan5” mtu=1500 l2mtu=65535 arp=enabled
mac-address=00:00:00:00:00:00 protocol-mode=stp priority=0x8000
auto-mac=yes admin-mac=00:00:00:00:00:00 max-message-age=20s
forward-delay=15s transmit-hold-count=6 ageing-time=5m
2 R name=“br-vlan21” mtu=1500 l2mtu=65535 arp=enabled
mac-address=00:00:00:00:00:00 protocol-mode=stp priority=0x8000
auto-mac=yes admin-mac=00:00:00:00:00:00 max-message-age=20s
forward-delay=15s transmit-hold-count=6 ageing-time=5m
