Dear Friends,
After days of troubleshooting I need to confess that I am unable to spot the issue related to the WireGuard VPN configuration on my Mikrotik. I am able to ping the devices while connected to my home Wi-Fi where my Mikrotik is connected to, I can access those devices, but I cannot do the above while connected via iPhone (mobile 5G Internet) or external WiFi, I have noticed in logs that the handshake cannot be completed and I have no clue how to sort it out.
I have attached the following:
- Logs from iPhone 14 Pro Max, 1st connection was on WiFi - success, 2nd connection was on mobile 5G - handshake failed. My public IP has been changed with <MY_PUBLIC_IP>.

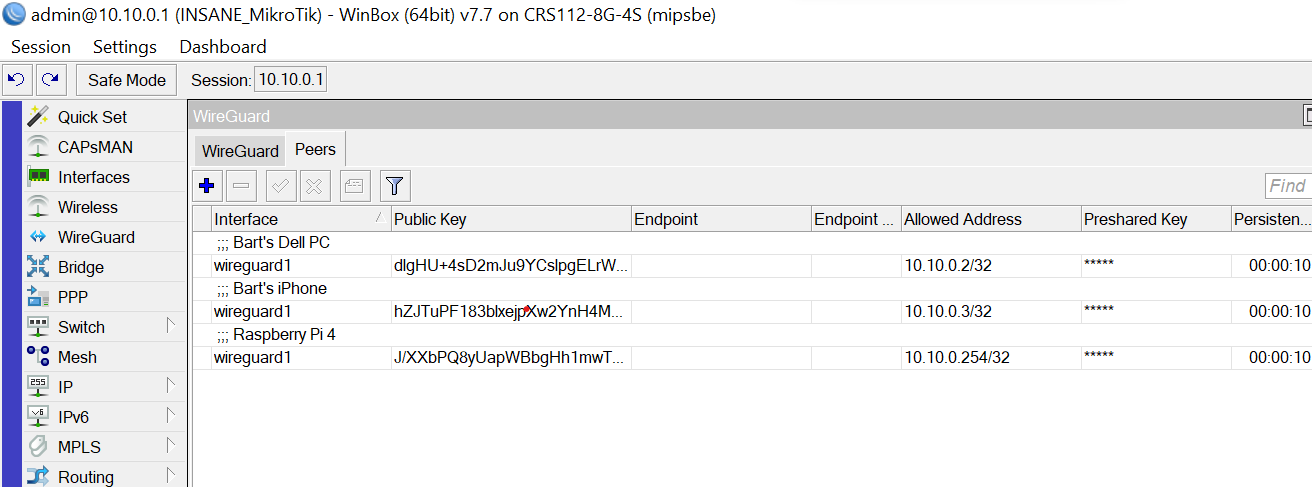

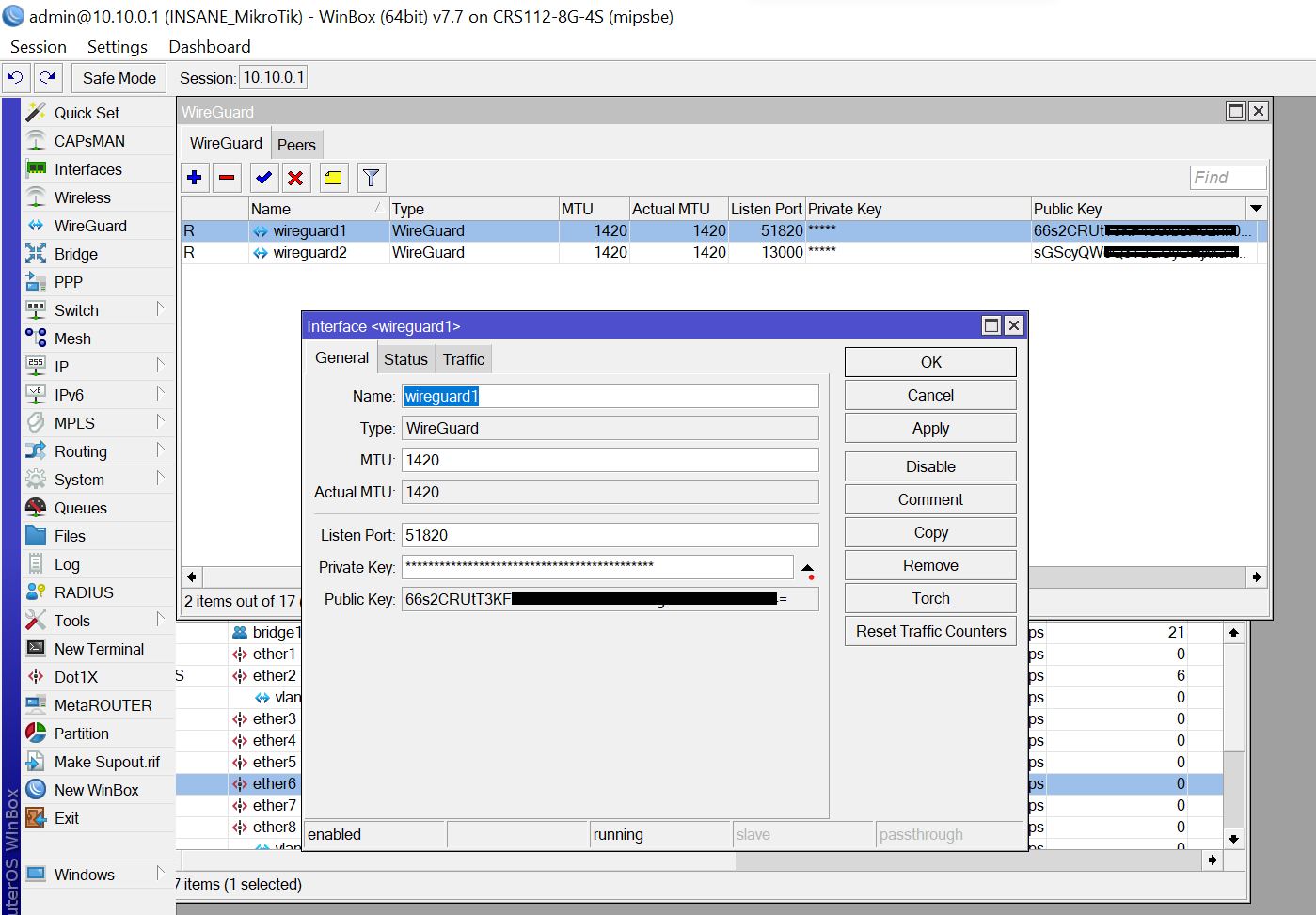

- Mikrotik WireGuard Peers

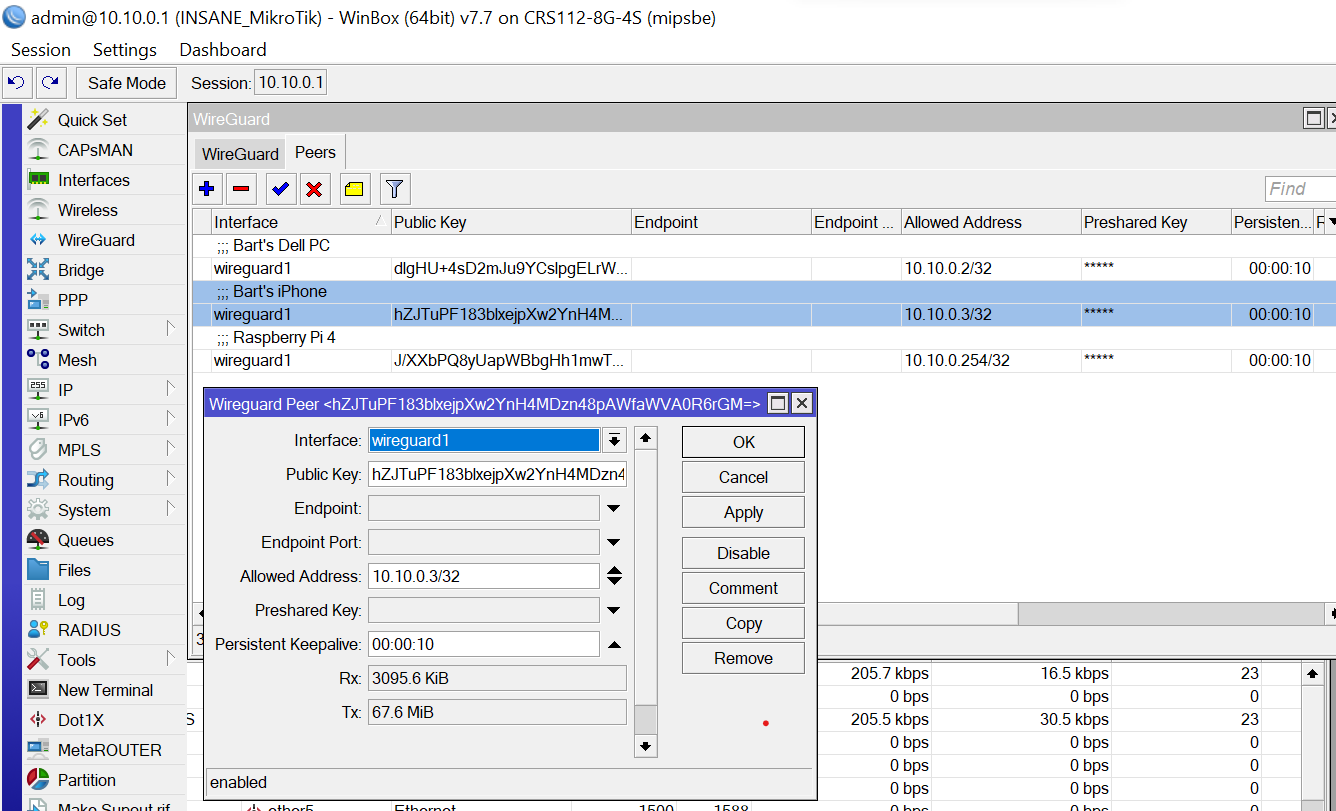

- Mikrotik WireGuard Peer - iPhone config

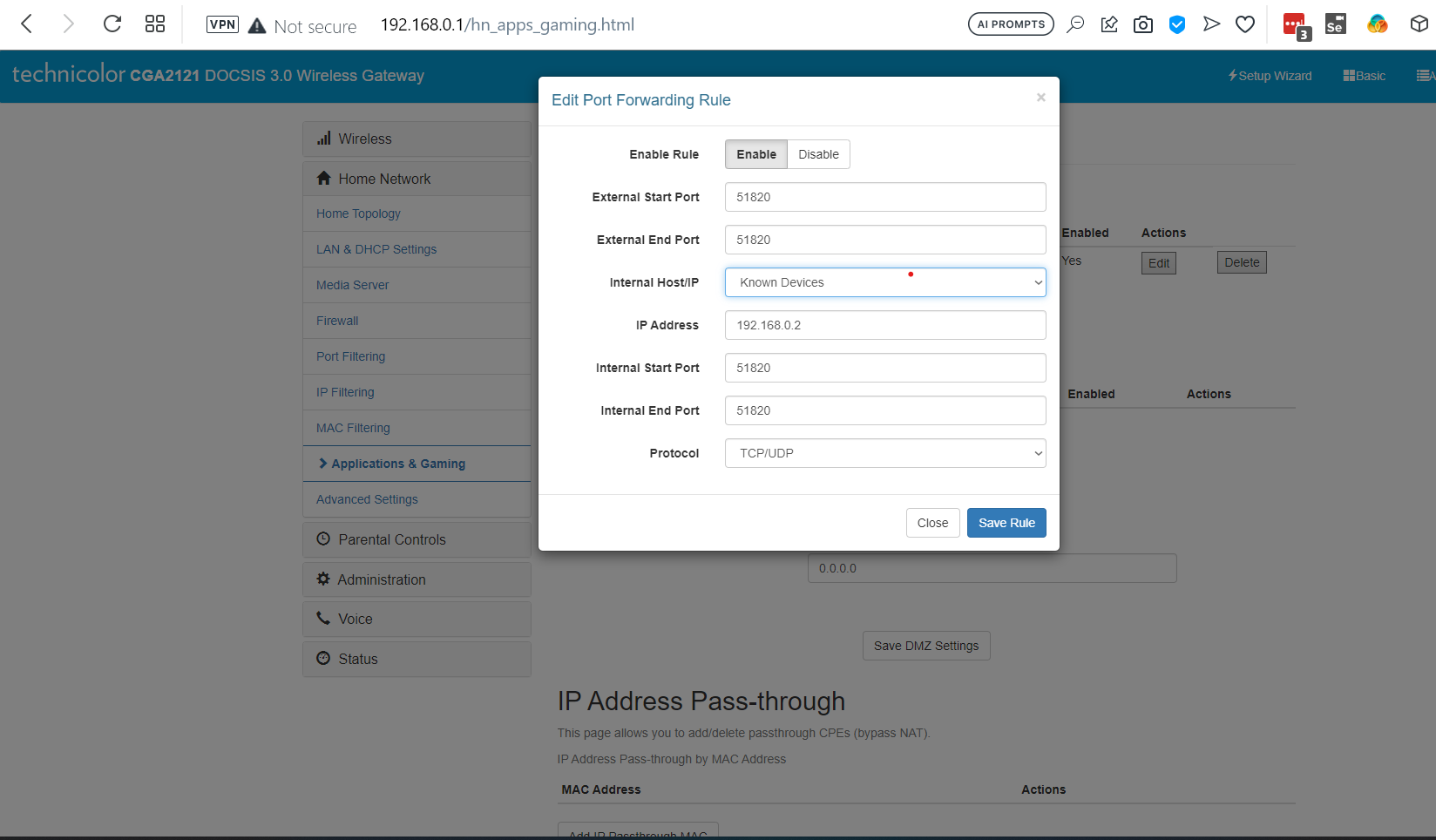

- Home router - port forwarding on port 51820 for Mikrotiks local IP on home network 192.168.0.2

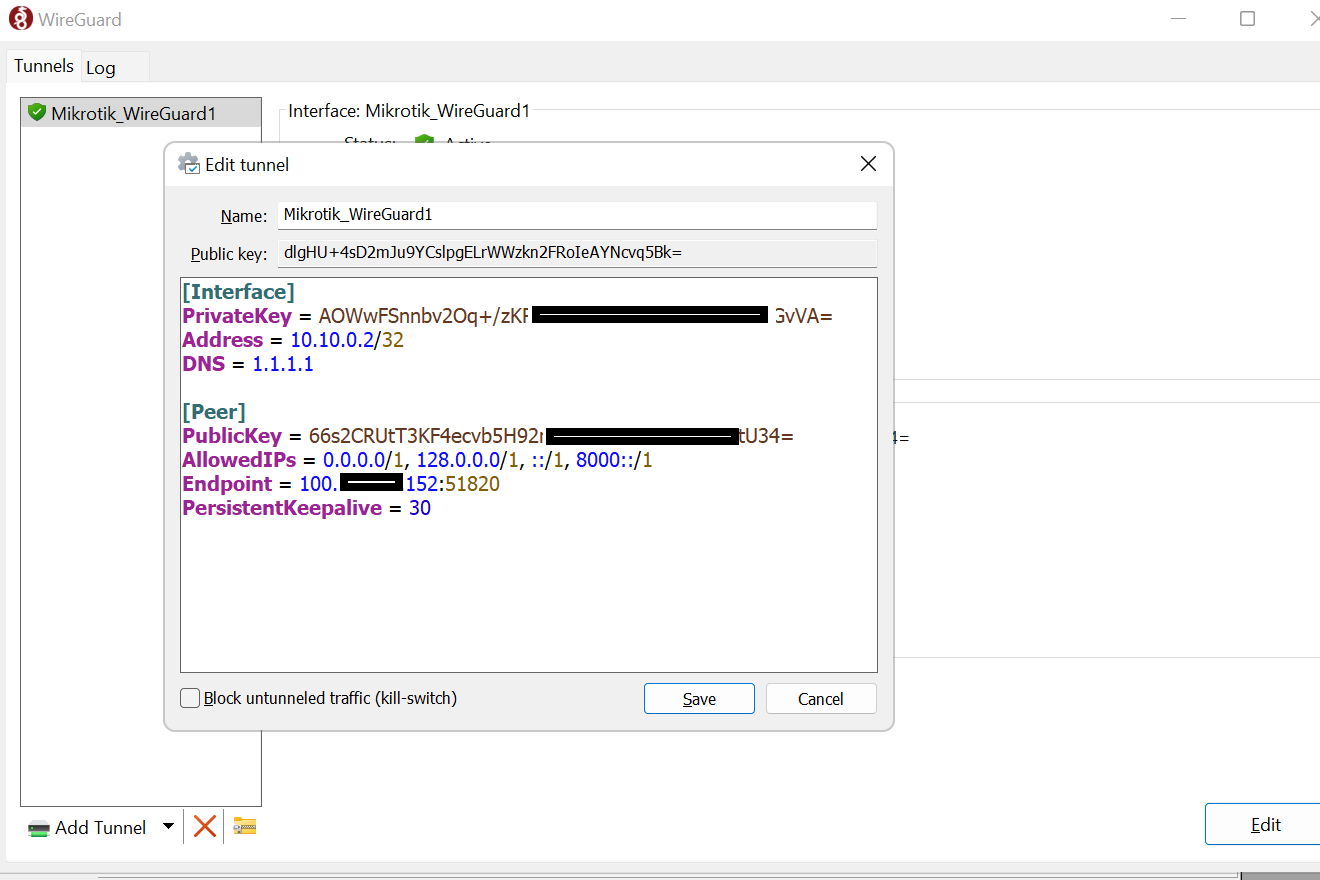

- Windows 11 - WireGuard profile
- Mikrotik WireGuard Peers

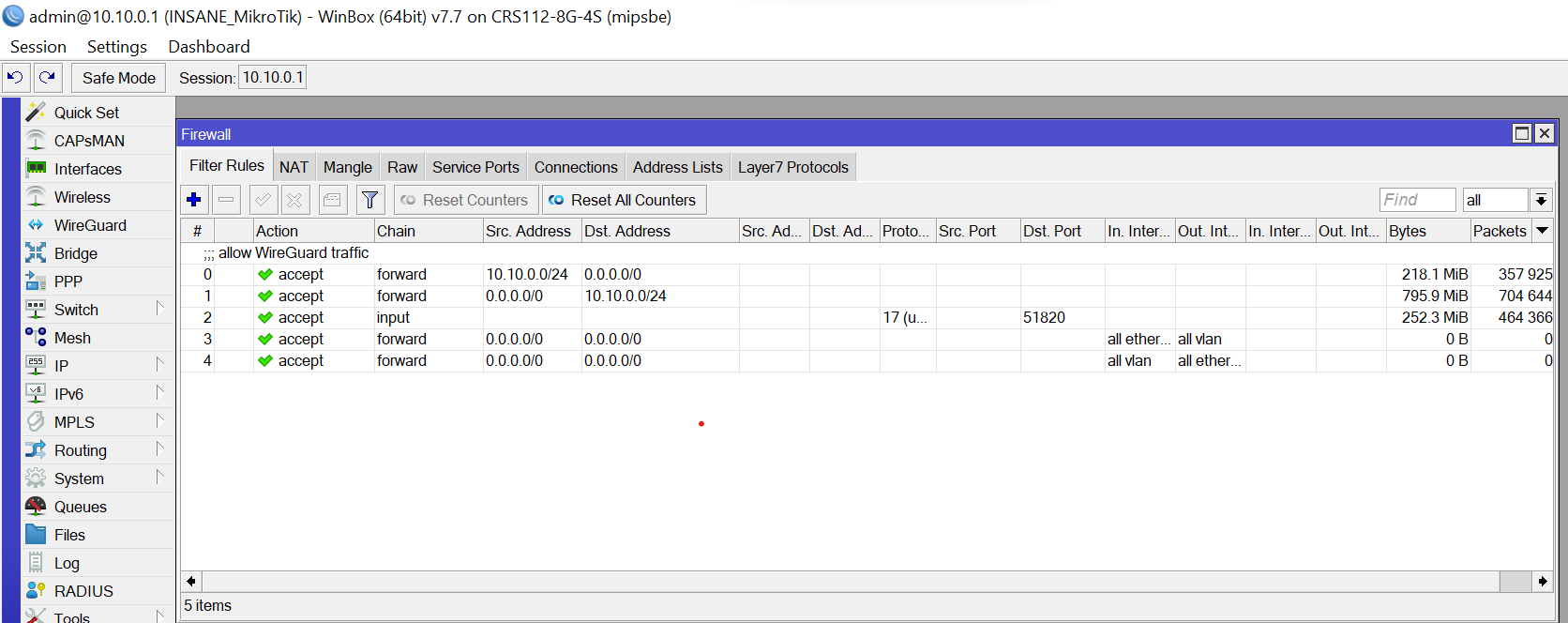

- Mikrotik Firewall Rules

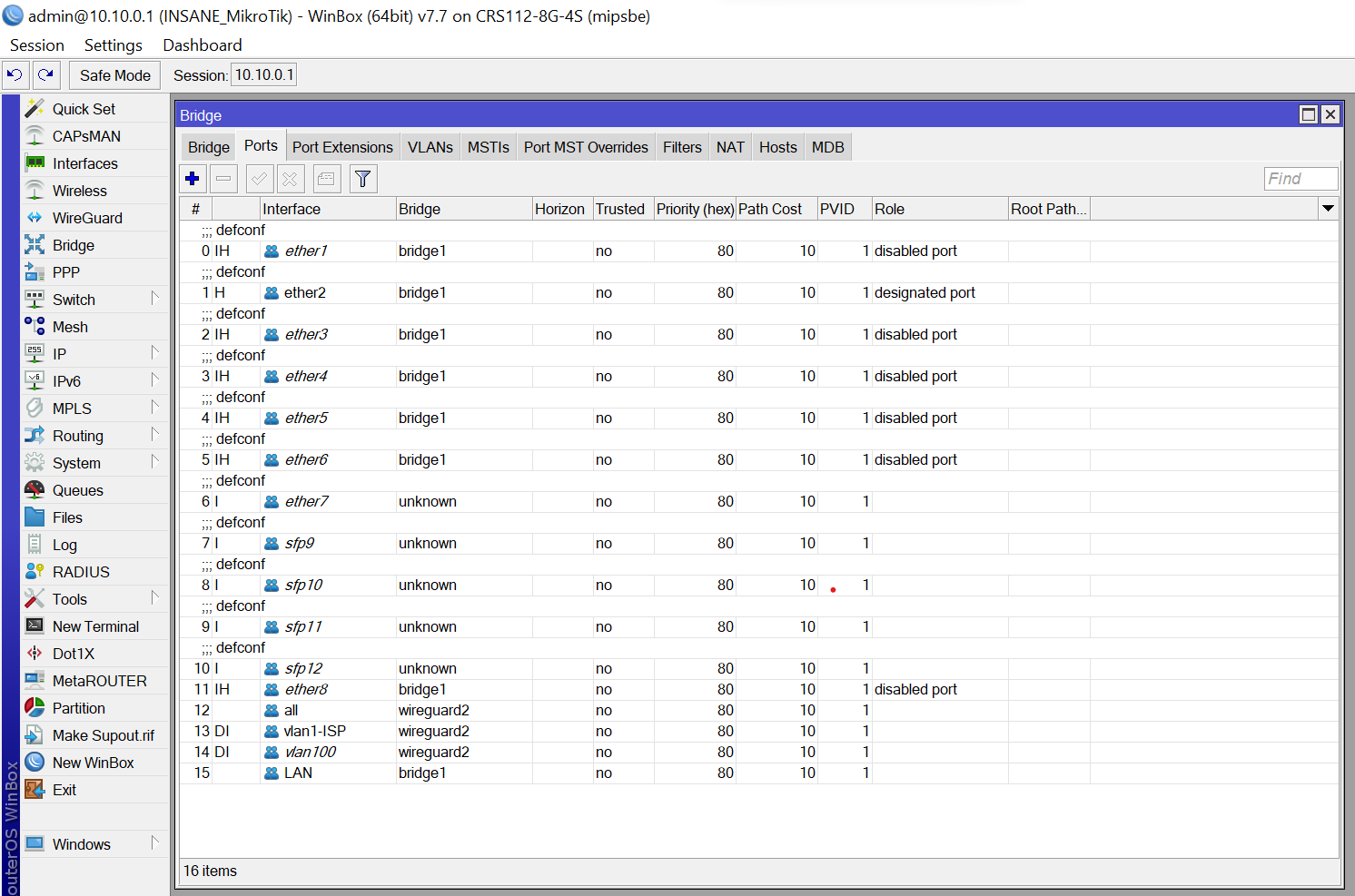

- Mikrotik Interface & Interface List
The Network Diagram is not necessary as there is a Home Router (ISP: Play Mobile Network 300Mbps/50Mbps)
Home network: 192.168.0.0/24 // GW: *.1 - home router; // Mikrotik interface *.2
WireGuard interface: 10.10.0.0/24 // GW: *.1 - Mk interface
PLEASE HELP!
Many Thanks for any attempt of help, I really need to have it sorted.
Kind Regards,
Bart
wireguard-log-2023-06-20T175821Z.txt (21.2 KB)
