Hotspot Exclamation sign (!) just before Hotspot server

tombee79 · August 14, 2010, 4:30am

Hi

Can some one explain me why i got the Exclamation sign (!) just before hotspot server configuration icon?

I changed ISP from Cable to DSL and i change my gateway from Static IP to Dinamic IP ( PPPoE client on my Gateway Eth1 port MT 750G RB. And even all the server profiles got eh Exclamation sign (!) just before the names? I just noticed that all the configuration in /ip Hotspot are with Exclamation sign (!) yellow one on icons.

It works but it scares me something might be wrong or something?

Thanks for you INPUT guys

fewi · August 14, 2010, 4:32am

Are they red? That’s an I for invalid. Make sure that the interface names still refer to valid configuration items. If in doubt, post the output of:
/interface print
/ip hotspot export

tombee79 · August 15, 2010, 4:07am

[admin@MikroTik] > /interface print
Flags: D - dynamic, X - disabled, R - running, S - slave

NAME TYPE MTU L2MTU

0 R ether1-gateway ether 1500 1524
1 R ether2-local-master ether 1500 1524
2 ether3-local-slave ether 1500 1524
3 ether4-local-master ether 1500 1524
4 ether5-local-master ether 1500 1524
5 R pppoe-out1 pppoe-out 1480
[admin@MikroTik] > /ip hotspot export

aug/15/2010 00:02:21 by RouterOS 4.10

software id = MYAW-559U

/ip hotspot profile
set default dns-name="" hotspot-address=0.0.0.0 html-directory=hotspot http-proxy=0.0.0.0:0 login-by=http-chap name=
default rate-limit="" smtp-server=0.0.0.0 split-user-domain=no use-radius=no
/ip hotspot user profile
set default idle-timeout=none keepalive-timeout=2m name=default shared-users=1 status-autorefresh=1m transparent-proxy=no
add address-pool=pool55 idle-timeout=none keepalive-timeout=2m name=uprof-ser5 shared-users=1 status-autorefresh=1m
transparent-proxy=no
add address-pool=pool44 idle-timeout=none keepalive-timeout=2m name=uprof-ser44 rate-limit=1120000/1120000 shared-users=1
status-autorefresh=1m transparent-proxy=no
/ip hotspot profile
add dns-name=wireless.skynetisp.com hotspot-address=192.168.44.1 html-directory=hotspot http-proxy=0.0.0.0:0 login-by=
http-chap,trial name=skynetisp4.com nas-port-type=ethernet radius-accounting=yes radius-default-domain=""
radius-interim-update=received radius-location-id="" radius-location-name="" radius-mac-format=XX:XX:XX:XX:XX:XX
rate-limit="" smtp-server=206.190.36.18 split-user-domain=no trial-uptime=30m/1d trial-user-profile=uprof-ser44
use-radius=yes
add dns-name=wireless.skynetisp.com hotspot-address=192.168.55.1 html-directory=hotspot http-proxy=0.0.0.0:0 login-by=
http-chap,trial name=skynetisp5.com nas-port-type=ethernet radius-accounting=yes radius-default-domain=""
radius-interim-update=received radius-location-id="" radius-location-name="" radius-mac-format=XX:XX:XX:XX:XX:XX \

radius-interim-update=received radius-location-id="" radius-location-name="" radius-mac-format=XX:XX:XX:XX:XX:XX
rate-limit="" smtp-server=0.0.0.0 split-user-domain=no trial-uptime=30m/1d trial-user-profile=default use-radius=yes
/ip hotspot
add disabled=no idle-timeout=5m interface=ether5-local-master keepalive-timeout=none name=hotspot55 profile=
skynetisp5.com
add disabled=yes idle-timeout=5m keepalive-timeout=none name=Hotspot44 profile=skynetisp4.com
/ip hotspot service-port
set ftp disabled=no ports=21
/ip hotspot user
add comment="" disabled=no name=admin password=baranows profile=uprof-ser5
/ip hotspot walled-garden
add action=allow comment="place hotspot rules here" disabled=yes
add action=allow comment="" disabled=no dst-host=":^www\.paypal\.com$" dst-port=443
add action=allow comment="" disabled=no dst-host=":^content\.paypalobjects\.com$" dst-port=443
add action=allow comment="" disabled=no dst-host=*.akamaiedge.net
add action=allow comment="" disabled=no dst-host=paypal.112.2O7.net
add action=allow comment="" disabled=no dst-host=skynetisp.com src-address=192.168.55.1
add action=allow comment="" disabled=yes dst-host:808=skynetisp.com/user
add action=allow comment="" disabled=yes dst-host:808=skynetisp.com/userman
add action=allow comment="" disabled=no src-address=69.165.220.163
[admin@MikroTik] >

fewi · August 15, 2010, 4:12am

That seems OK. Can you post a screenshot of the error you’re seeing?

tombee79 · August 15, 2010, 4:53am

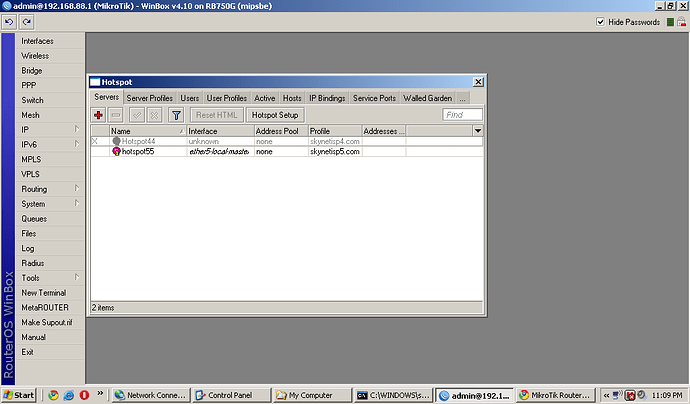

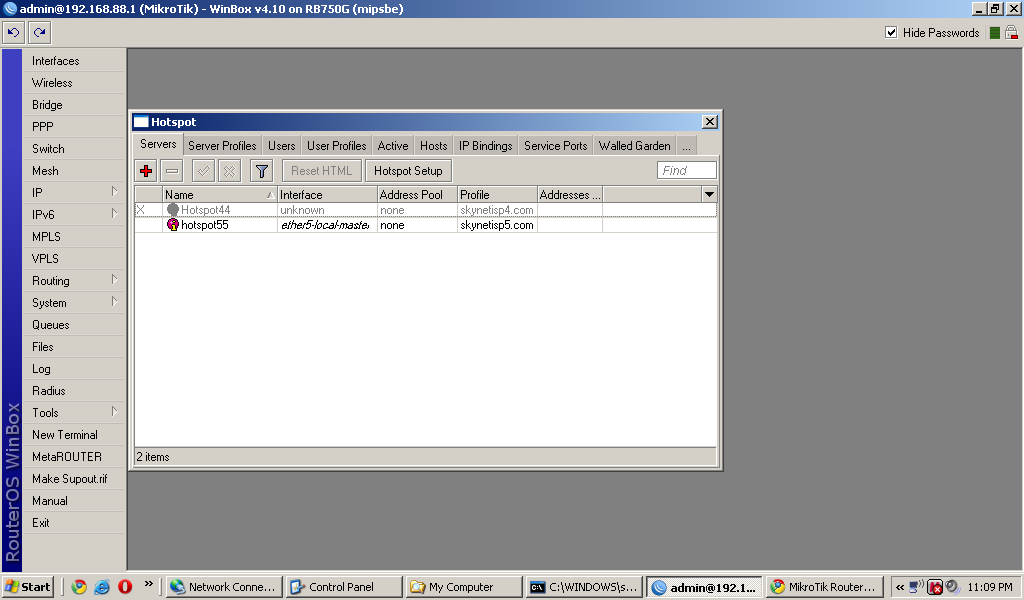

Everthing work like it should. I just change config setting on modem switched from Cable to DSL and now i had to configure PPPoE client with Static IP in Mikrotik RB 750G on the Eathernet0 interface. Everything work OK, the hotspot etc, so fare, but i noticed that all the ICONS in hotspot under each tub in hotspot configuration window, get the funny RED circle with Exclamation sign.

I didn’t have that before. Must be a resone why is there? Why?

thanks for help
