Hotspot proper config issues

[schiele]

Hi there,

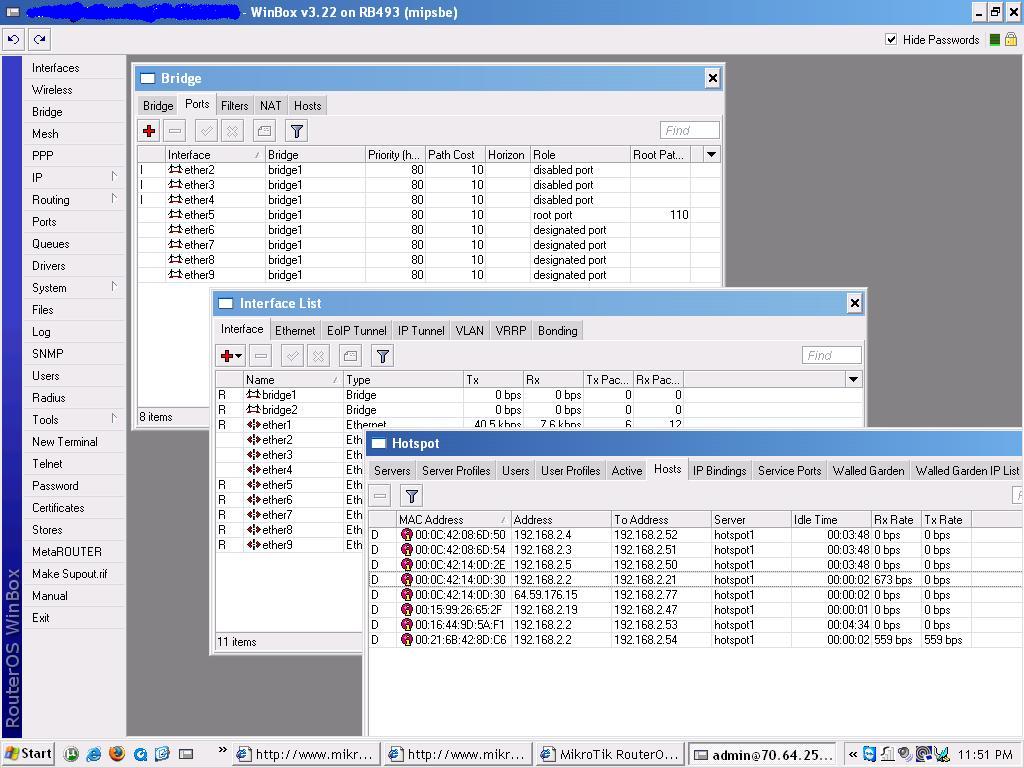

I am trying to sort out some problems with a newly created hotspot server, as you can see from the screenshot below under the ‘hosts’ tab, all AP’s(192.168.2.2,3,4 and 5) are showing up as “D” flags, I have not yet setup binding but will soon, even so once I have done this I dont understand why other host have the ‘D’ flag as well, sometime 2 clients are able to login and become ‘AH’ but they seem to loose the connection after a few minutes, this tells me that i have not properly setup the hotspot but would like to know what i might be doing wrong, I would like to see ‘H’ and not ‘D’ flag showing up, then it should work fine! Any suggestions are truely welcome and appreciated.

Thanks

[schiele]

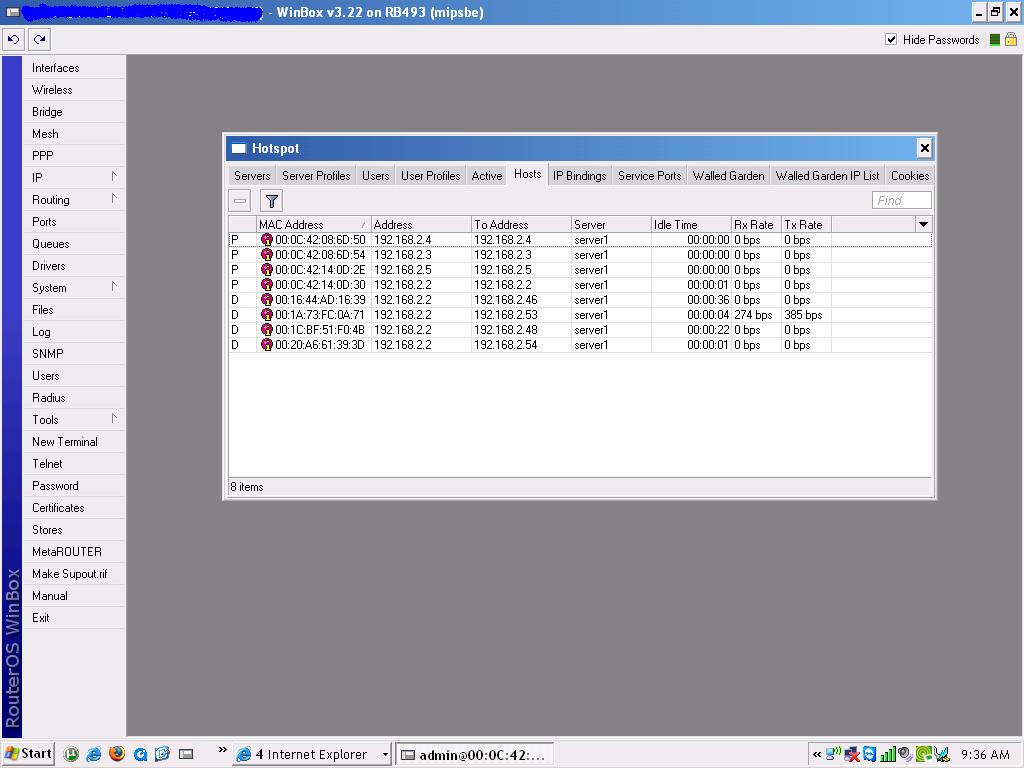

As you can see the Master AP(192.168.2.2) that has ethernet wired to it from the RB493 is showing up in the hosts multiple times, I have tried up’ing the ‘addresses per MAC’ this has not changed anything, you can see below I have binding setup for the 4 AP’s, and I am still seeing the ‘D’ flags for clients, telling me that the Hotspot does not know where these clients are coming from, correct?

Thanks for your input people.

[omega-00]

Hello schile, are you able to paste some more of your hotspot server setup details?

Specifically the config for the hotspot server profile and hotspot server themselves.
