I want to setup hotspot with dhcp server that distributes “public ip” to the client
My provider gives me 32 ip.
[ProviderETH] <----> [MyETH1][MyWLAN1] ))))) Many clients
For example:
[ProviderETH] : 82.94.12.1/27
[MyETH1] : 82.94.12.2/27
DHCP range for hotspot 82.94.12.4 - 82.94.12.30
How to do this?
you just will have to nat the wlan interface and eventually masquarade it, that’s all.
i hope it does u good
thanks for your interest.
Sorry, if I run the NAT with Masquerading, the public ip that is given to clients is useless because it is masked by IP of the ethernet.
I would like that if the user is assigned the IP “x”, he exit in internet with that ip
Is possibile or the hotspot runs only with the nat ??
I reset the Hotspot and remade with masqueranding (192.168.1.1), and everything works (after authentication successfully navigate) but all clients with ONE public ip
Then..
I tried to comment on masquerading and create the two rules (dst and src-nat-nat) with netmap (NAT 1:1) , but does not seem to navigate.
I try also to assign all range of public ip to my ether1 but after the authentication successfully I can’t navigate.
anyone help me?
I post an example of configuration but the Hotspot with NAT 1:1 don’t work
[admin@MikroTik] > ip address print
Flags: X - disabled, I - invalid, D - dynamic
0 82.94.12.44/27 ether1
1 ;;; hotspot network
192.168.1.1/24 wlan1
2 82.94.12.1/27 ether1
3 82.94.12.2/27 ether1
4 82.94.12.3/27 ether1
5 82.94.12.4/27 ether1
6 82.94.12.5/27 ether1
7 82.94.12.6/27 ether1
8 82.94.12.7/27 ether1
9 82.94.12.8/27 ether1
10 82.94.12.9/27 ether1
11 82.94.12.10/27 ether1
12 82.94.12.11/27 ether1
13 82.94.12.12/27 ether1
[admin@MikroTik] > ip firewall nat print
chain=srcnat action=netmap to-addresses=82.94.12.2-82.94.12.12 to-ports=0-65535 src-address=192.168.1.2-192.168.1.12
chain=dstnat action=netmap to-addresses=192.168.1.2-192.168.1.12 to-ports=0-65535 dst-address=82.94.12.2-82.94.12.12
DHCP server Ip pool 192.168.1.2-192.168.1.12
With this configuration when I login to the hotspot I can ping google.it but i can’t navigate
Why??

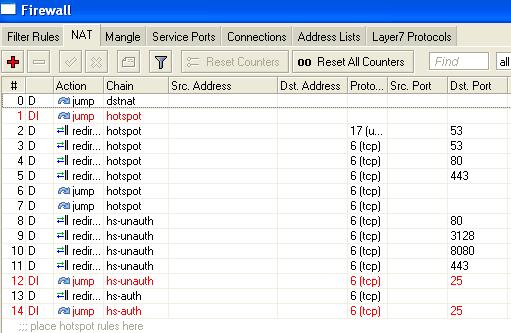

How many NATs do you ve there, remember when creating hotspot NAT is automatically setup, so u sld disable the former NAT you have. and make sure u are mascurading behing the public. like 192…behind ur 82…network and not vise versa.
How many NATs do you ve there, remember when creating hotspot NAT is automatically setup, so u sld disable the former NAT you have. and make sure u are masqurading behing the public. like 192…behind ur 82…network and not vise versa.
u sld disable the former NAT you have
I have to remove everything from the various NAT rules?
Exactly what should I set in here?
And the Pool IP for the DHCP server and the pool for the hotspot profile:
I have to put the public or private?
And sorry..
and make sure u are masqurading behing the public
You mean with netmap?
I tried to recreate the hotspot with a masquerading rule and it works.
But when I try to disable it to create a “masquerading made by hand” that is with the 2 rules of nat and ip manually specified .. the logic is the same!!! .. these do not work.
Same thing with the netmap
I think that HotSpot work ONLY with masquerading rule.
NAT with src and dst: DON’t WORK
1 chain=srcnat action=src-nat to-addresses=MyPublicIp to-ports=0-65535
src-address=192.168.1.4
2 chain=dstnat action=dst-nat to-addresses=192.168.1.2 to-ports=0-65535
dst-address=MyPublicIp
NAT with netmap: DON’t WORK
1 chain=srcnat action=netmap to-addresses=MyPublicIpStart to-ports=0-65535
src-address=192.168.1.2-192.168.1.4
2 chain=dstnat action=netmap to-addresses=192.168.1.2 to-ports=0-65535
dst-address=MyPublicIpStart-MyPublicIpEnd
NAT with masquerading: WORK
1 ;;; masquerade hotspot network
chain=srcnat action=masquerade src-address=192.168.1.0/24
Why???
I tried to search the forum but there are no clear and definitive answers on how to nat one-to-one
Mikrotik please please give us an answer
Here, other people who ask:
http://forum.mikrotik.com/t/nat-1-1-not-working-with-hotspot/19836/1
http://forum.mikrotik.com/t/netmap-and-hotspot/7668/1
Hello
I have same problem and I have post same question yesterday in this forum.
Do you have already solved?
