how can i access to NSM2 devices have Vlan from computer ?

RouterOS Beginner Basics
1

i have searched a lot about the way that i can access my nsm2 devices from my laptop and i failed , really i feel bad .

Is there anyone can help me in this point please ?

2

is there anyone can help me ?

3

is there anyone can help me pz

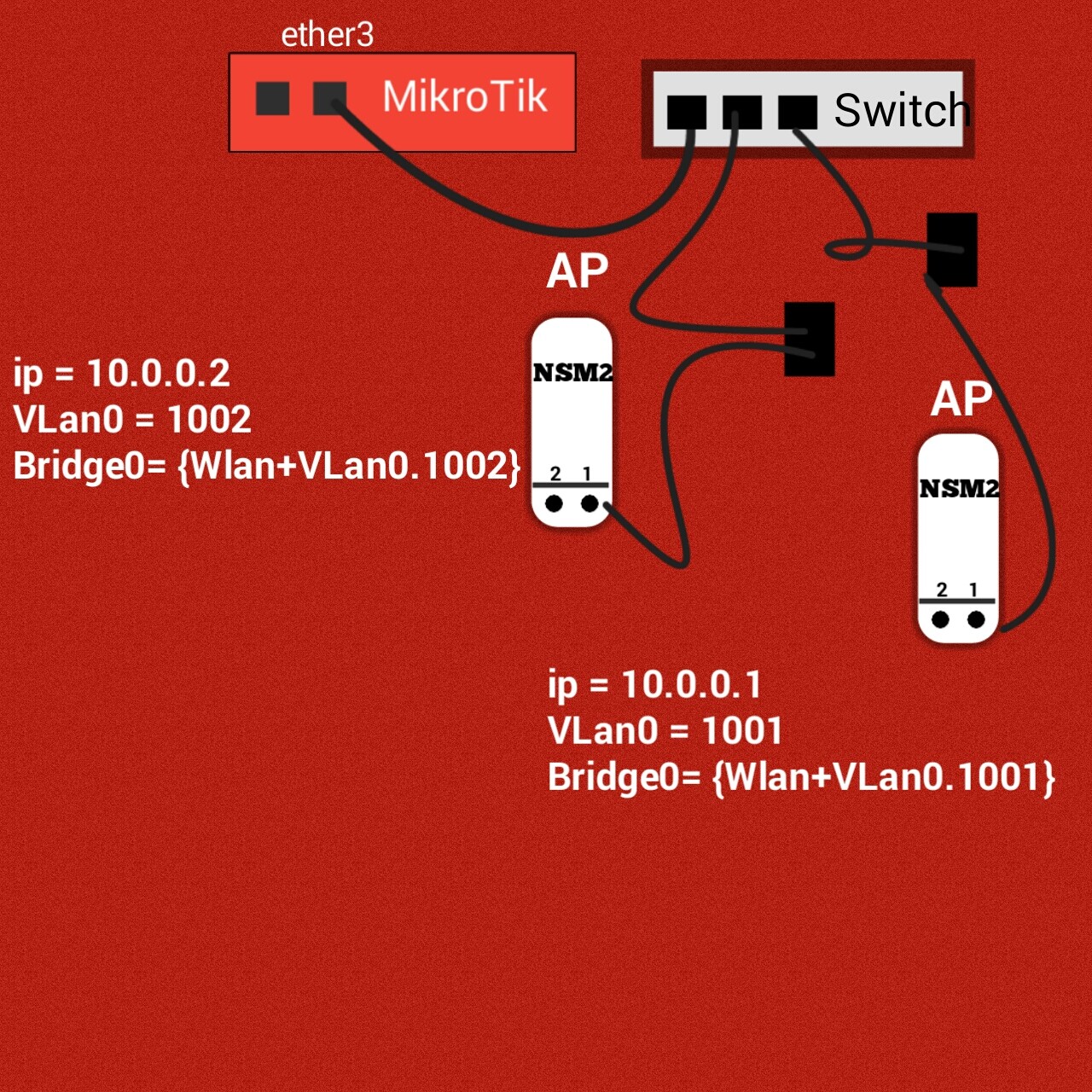

my computer connect to switch and obtain ip : 10.0.0.200. the blue box in picture





my setting in mikrotik .


\

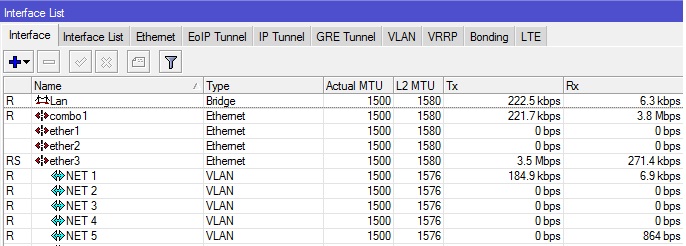

  • all Vlans under ether3

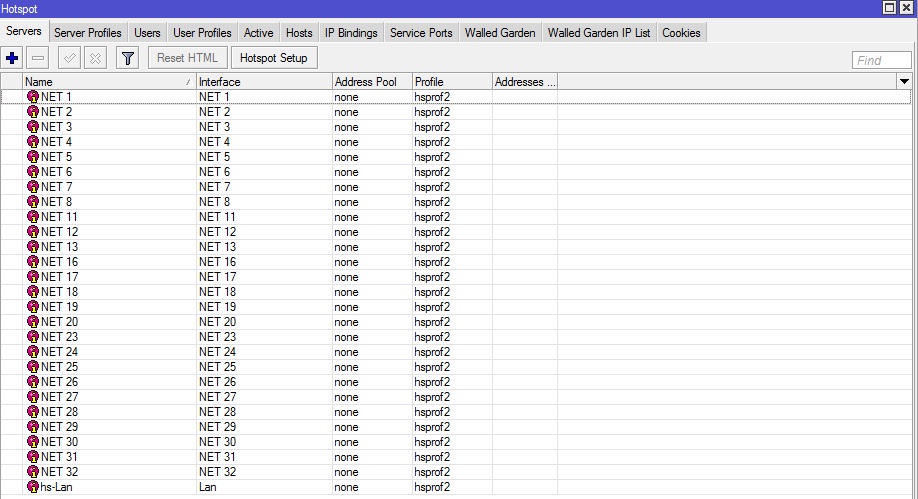

  • i created a bridge with rang 10.0.0.1/24 and made hotspot for it

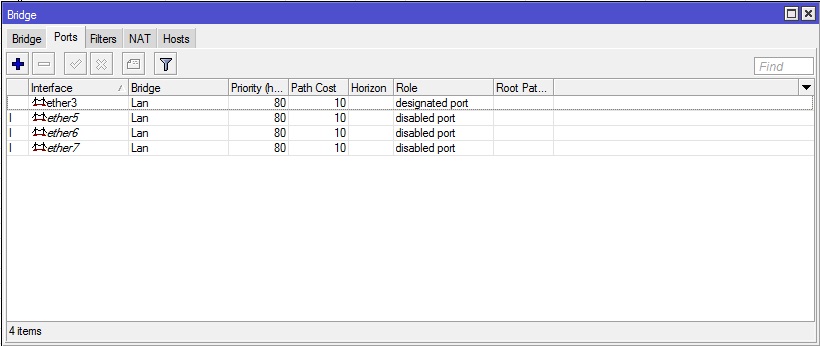

  • i put ether3 on bridge ports

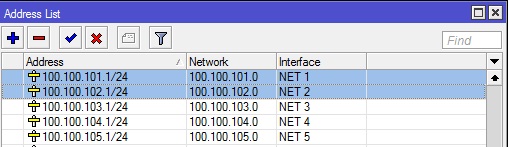

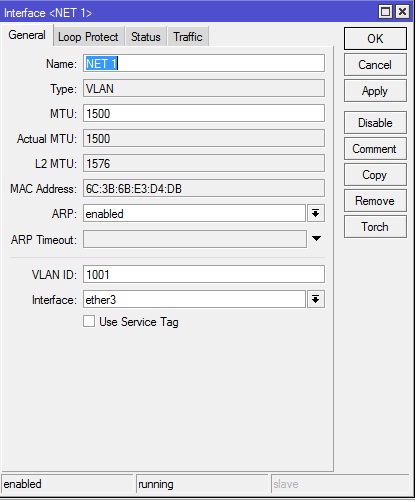

  • i put vlan1 with rang 100.100.101.1/24 and made hotspot for it

  • i put vlan2 with rang 100.100.102.1/24 and made hotspot for it



    so

how i can access to NSM2 ?
my computer.jpg
