How to achieve this goal?

Michael12345 · January 4, 2010, 4:21pm

I want to set up a speed limitation to ethernet 192.168.1.0/24 except several IP address 219.136.245.128 etc. In other words, when I access 219.136.245.128, it’s no speed limitation.

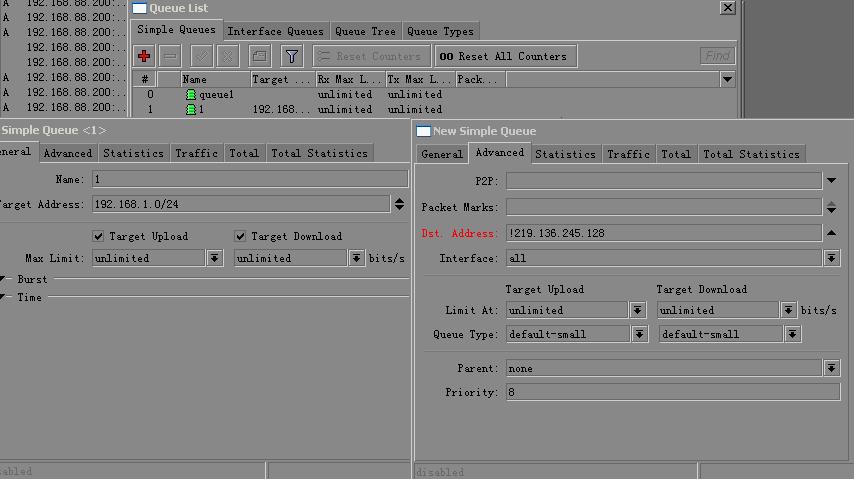

But when I use “!219.136.245.128”,notice there is an exclamation sign,it can be set in simple queue,how to do?

DannyZ · January 4, 2010, 11:33pm

U wanna add queues to all ethernet users, but queue should not limit traffic from several IP’s? Or u wanna setup queues for all ethernet users except those who have ect. 219.136.245.128 IP ?

Michael12345 · January 5, 2010, 6:26am

I want to add queues to all ethernet users, but queue should not limit traffic to 219.136.245.128.

JJOliver998 · January 5, 2010, 12:11pm

Have a look at this wiki article.

Whilst it’s not pretty it worked for me (I wrote the wiki).

http://wiki.mikrotik.com/wiki/Lan2lan

Just change the IP’s to suit what you are after.

Josh.

Michael12345 · January 5, 2010, 2:52pm

Thank you Josh, it seems work for me as well,I can’t try now,I will test it about next month, and I will report the result by then,please pay attention.
