How to merge all VLAN in a unique interface ?

RouterOS Beginner Basics
1

Hello,

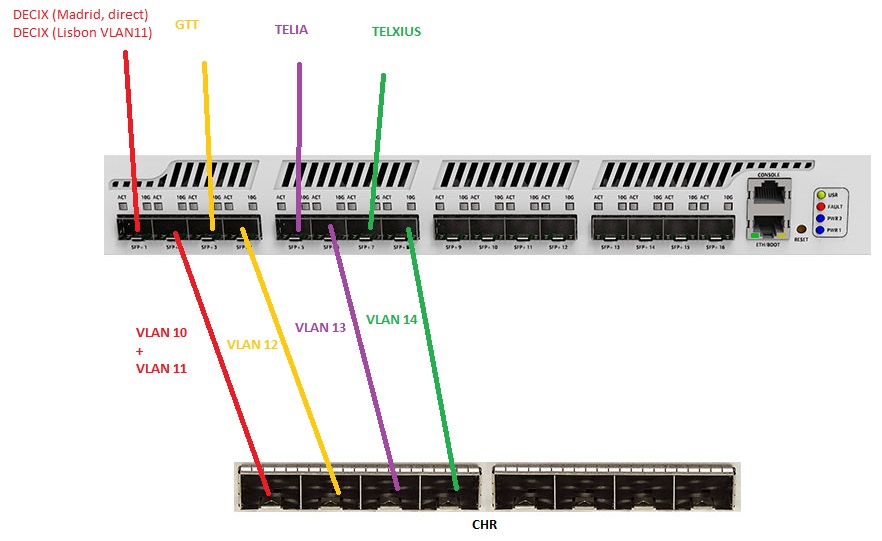

Currently, this is the switch configuration I use for my upstream input.




/interface bridge port
add bridge=BR1 interface=sfp01-DECIX-IN pvid=10
add bridge=BR1 interface=sfp02-DECIX-OUT pvid=10
add bridge=BR1 interface=sfp03-GTT-IN pvid=12
add bridge=BR1 interface=sfp04-GTT-OUT pvid=12
add bridge=BR1 interface=sfp05-Telia-IN pvid=13
add bridge=BR1 interface=sfp06-Telia-OUT pvid=13
add bridge=BR1 interface=sfp07-Telxius-IN pvid=14
add bridge=BR1 interface=sfp08-Telxius-OUT pvid=14

/interface bridge vlan
add bridge=BR1 tagged=sfp02-DECIX-OUT untagged=sfp01-DECIX-IN vlan-ids=10
add bridge=BR1 tagged=sfp01-DECIX-IN,sfp02-DECIX-OUT vlan-ids=11
add bridge=BR1 tagged=sfp04-GTT-OUT untagged=sfp03-GTT-IN vlan-ids=12
add bridge=BR1 tagged=sfp06-Telia-OUT untagged=sfp05-Telia-IN vlan-ids=13
add bridge=BR1 tagged=sfp08-Telxius-OUT untagged=sfp07-Telxius-IN vlan-ids=14

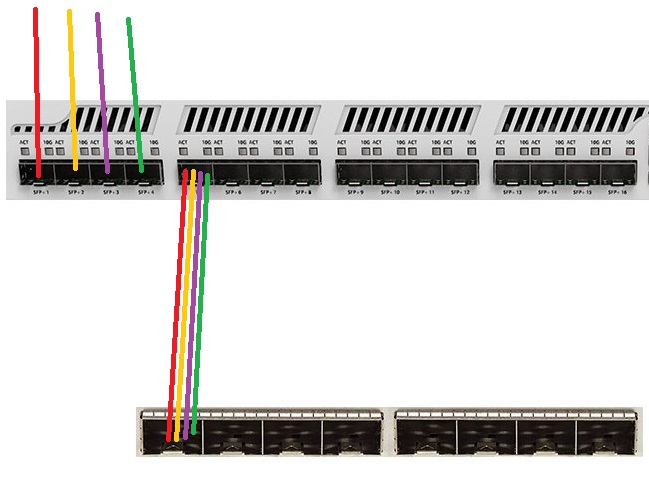

But now I want to migrate to this configuration

But I can’t get it to work. Can you please help me?

Thank you!

2

Hello,

This is how I would configure the switch for such scenario:

/interface bridge port
add bridge=BR1 interface=sfp01-DECIX pvid=10
add bridge=BR1 interface=sfp02-GTT pvid=12
add bridge=BR1 interface=sfp03-Telia pvid=13
add bridge=BR1 interface=sfp04-Telxius pvid=14
add bridge=BR1 interface=sfp05-CHR-trunk

VLAN 11 is tagged on sfp01-DECIX and all VLANs (10,11,12,13,14) are tagged on sfp05-CHR-trunk.

/interface bridge vlan
add bridge=BR1 tagged=sfp05-CHR-trunk untagged=sfp01-DECIX vlan-ids=10
add bridge=BR1 tagged=sfp05-CHR-trunk,sfp01-DECIX vlan-ids=11
add bridge=BR1 tagged=sfp05-CHR-trunk untagged=sfp02-GTT vlan-ids=12
add bridge=BR1 tagged=sfp05-CHR-trunk untagged=sfp03-Telia vlan-ids=13
add bridge=BR1 tagged=sfp05-CHR-trunk untagged=sfp04-Telxius vlan-ids=14

And do not forget to enable VLAN filtering on the bridge.

3

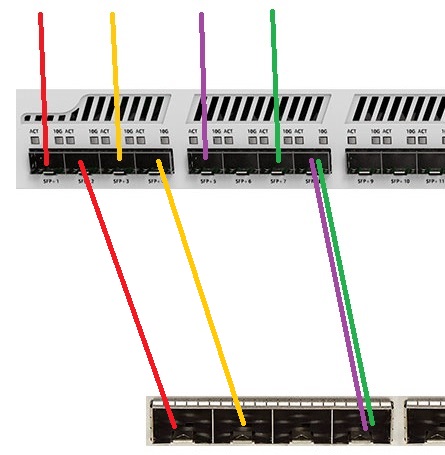

Hey, thanks, but it’s not working for me.

I’ve changed Telia’s output on the switch and on the CHR. After the change I don’t have a ping on Telia.

Here’s what I got:

On the CRS:

/interface bridge
add name=BR1 protocol-mode=none vlan-filtering=yes

/interface bridge port
add bridge=BR1 interface=sfp01-DECIX-IN pvid=10
add bridge=BR1 interface=sfp02-DECIX-OUT pvid=10
add bridge=BR1 interface=sfp03-GTT-IN pvid=12
add bridge=BR1 interface=sfp04-GTT-OUT pvid=12
add bridge=BR1 interface=sfp05-Telia-IN pvid=13
add bridge=BR1 interface=sfp07-Telxius-IN pvid=14
add bridge=BR1 interface=sfp08-Telxius-OUT

/interface bridge vlan
add bridge=BR1 tagged=sfp02-DECIX-OUT untagged=sfp01-DECIX-IN vlan-ids=10
add bridge=BR1 tagged=sfp01-DECIX-IN,sfp02-DECIX-OUT vlan-ids=11
add bridge=BR1 tagged=sfp04-GTT-OUT untagged=sfp03-GTT-IN vlan-ids=12
add bridge=BR1 tagged=sfp08-Telxius-OUT untagged=sfp05-Telia-IN vlan-ids=13
add bridge=BR1 tagged=sfp08-Telxius-OUT untagged=sfp07-Telxius-IN vlan-ids=14

On the CHR:

/interface vlan
add interface=vmbr3-DECIX name=vlan-DECIX-Madrid vlan-id=10
add interface=vmbr3-DECIX name=vlan-DECIX-Lisbon vlan-id=11
add interface=vmbr1-GTT name=vlan-GTT vlan-id=12
add interface=vmbr4-Telxius name=vlan-Telia vlan-id=13
add interface=vmbr4-Telxius name=vlan-Telxius vlan-id=14
4

Ok, I found the issue.

For some reason (I think because in the past I was “playing” with SwOS)

I have the port isolation configured like this:

/interface ethernet switch port-isolation> print
Flags: I - invalid
 0   name="sfp01-DECIX-IN" switch=switch1 forwarding-override=sfp02-DECIX-OUT
 1   name="sfp02-DECIX-OUT" switch=switch1 forwarding-override=sfp01-DECIX-IN
 2   name="sfp03-GTT-IN" switch=switch1 forwarding-override=sfp04-GTT-OUT
 3   name="sfp04-GTT-OUT" switch=switch1 forwarding-override=sfp03-GTT-IN
 4   name="sfp05-Telia-IN" switch=switch1 forwarding-override=sfp06-Telia-OUT
 5   name="sfp06-Telia-OUT" switch=switch1 forwarding-override=sfp05-Telia-IN
 6   name="sfp07-Telxius-IN" switch=switch1 forwarding-override=sfp08-Telxius-OUT
 7   name="sfp08-Telxius-OUT" switch=switch1 forwarding-override=sfp07-Telxius-IN

After disabling with this, it’s working :slight_smile::

/interface ethernet switch port-isolation unset numbers=0 forwarding-override
/interface ethernet switch port-isolation unset numbers=1 forwarding-override
/interface ethernet switch port-isolation unset numbers=2 forwarding-override
/interface ethernet switch port-isolation unset numbers=3 forwarding-override
/interface ethernet switch port-isolation unset numbers=4 forwarding-override
/interface ethernet switch port-isolation unset numbers=5 forwarding-override
/interface ethernet switch port-isolation unset numbers=6 forwarding-override
/interface ethernet switch port-isolation unset numbers=7 forwarding-override
