How to open R B from any internet line far away local N.W

RouterOS General
1

Dear Amin&friends after Regards

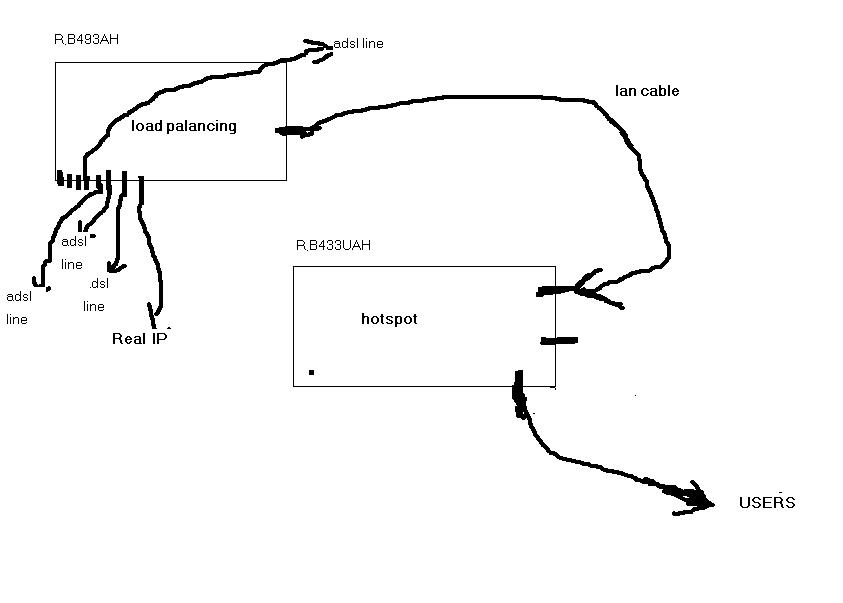

firstly I have 2 Router Board … first R.B (493 AH) socend R.B (433UAH) >on R.B 493 load balancing 5 ADSL line and there 1 line real IP > socend .. on R.B 433… control mean> hotspot and users … i can open R.B 493 from any internet line far away local network but the problem that can’t open the most important R.B 433 . knowing that on RB493 load balancing 5 ADSL line and take cable from this board to socend board 433 and on this board hotspot & users … Please help me I want to open socend R.B 433 from any internet line far away local network … i didn’t want to open 493 because the most important board (433) i hope u understand me sorry 4 my bad language iam waiting your Solution >>>> see the pic maybe understand

2
/ip firewall nat add chain=dstnat action=dst-nat dst-address=REAL_IP_ON_493 protocol=tcp dst-port=8292 to-port=8291 to-address=IP_ADDRESS_OF_433

Then connect to the real IP and port 8291 to administrate the 493, and the real IP and port 8292 to administrate the 433. If you’re not using Winbox adjust the destination ports accordingly.

On a sidenote, it’s better to call it a global or public IPs. Private IPs are real, too.

3

i posted /ip firewall nat add chain=dstnat action=dst-nat dst-address=196.202.28.110 protocol=tcp dst-port=8292 to-port=8291 to-address=10.5.50.253

ON R.B 493 only but not work.. iam still cant’t open R.B 433 from any line far away L.N.W

must be to post any thing on R.B 433 same as (/ip firewall nat add chain=dstnat action=dst-nat dst-address=196.202.28.110 protocol=tcp dst-port=8292 to-port=8291 to-address=10.5.50.253 ) or not please explain simply

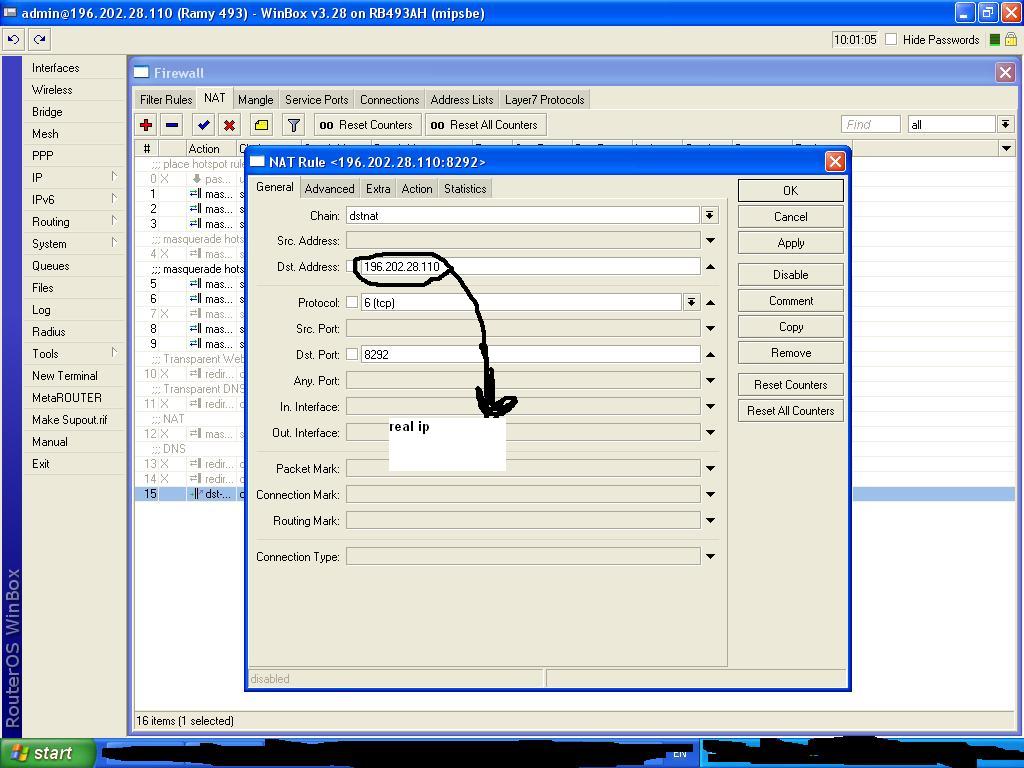

see this pics

4

Just to verify: when you tried to connect via Winbox, you told it to use port 8292 instead of the default of 8291? In the example I gave you’re using an alternative port so that 8291 stays available to connect to the internet facing router. So you’d use 196.202.28.110:8292 as the address to connect to 10.5.50.253.

5

Thanx very very very much to you succeed :smiley: :smiley: :smiley:

6

**after this all now i can open Rb 433 from Rb493 by using winbox but by webfig when i write to real Ip not log in Rb433 only log in Rb 493

Please guys how to open RB 433 from493 by using Webfig like as winbox or ( how to open port to webfig )**

7

Please reply me pleaaaase :confused:

8

I don’t understand what you are asking. Can you try again?

9

thank you for reply :sunglasses:

if you read from first post to end you will understand every thing

if you don’t understand i will explain to again
