How to PCC Load balancing of 2 PPPOE Client from one ISP

RouterOS General
1

Hello friends
I try to load balance as PCC on two PPPoE Client with my Routerboard (for can use both speed on one PC) but just one of PPPoE client just work .

Each PPPoE Connection provide 10Mb bandwidth .
Two PPPoE Connection connect over Ether5 .
Two PPPoE Connection are from same ISP with same Gateway

All of my Configuration : /ip address
add address=192.161.16.1/24 interface=ether2 network=192.161.16.0

/ip firewall address-list
add address=192.161.16.0/24 list=GW01_LAN

/ip firewall mangle
add chain=prerouting dst-address-list=GW01_LAN src-address-list=GW01_LAN
add action=mark-connection chain=forward connection-mark=no-mark in-interface=pppoe-1 new-connection-mark=ISP1_conn
add action=mark-connection chain=forward connection-mark=no-mark in-interface=pppoe-2 new-connection-mark=ISP2_conn
add action=mark-connection chain=prerouting connection-mark=no-mark in-interface=pppoe-1 new-connection-mark=ISP1_conn
add action=mark-connection chain=prerouting connection-mark=no-mark in-interface=pppoe-2 new-connection-mark=ISP2_conn
add action=jump chain=prerouting connection-mark=no-mark in-interface=ether2 jump-target=policy_routing
add action=mark-connection chain=prerouting connection-mark=ISP1_conn new-connection-mark=ISP1_traffic src-address-list=GW01_LAN
add action=mark-connection chain=prerouting connection-mark=ISP2_conn new-connection-mark=ISP2_traffic src-address-list=GW01_LAN
add action=mark-connection chain=output connection-mark=ISP1_conn new-connection-mark=ISP1_traffic
add action=mark-connection chain=output connection-mark=ISP2_conn new-connection-mark=ISP2_traffic
add action=mark-connection chain=policy_routing dst-address-type=!local new-connection-mark=ISP1_conn per-connection-classifier=both-addresses-and-ports:2/0
add action=mark-connection chain=policy_routing dst-address-type=!local new-connection-mark=ISP2_conn per-connection-classifier=both-addresses-and-ports:2/1

/ip firewall nat
add action=masquerade chain=srcnat out-interface=pppoe-1
add action=masquerade chain=srcnat out-interface=pppoe-2

/ip route
add check-gateway=arp distance=1 gateway=pppoe-1 routing-mark=ISP1_traffic
add check-gateway=arp distance=1 gateway=pppoe-2 routing-mark=ISP2_traffic
add check-gateway=arp distance=2 gateway=pppoe-1
add check-gateway=arp distance=3 gateway=pppoe-2My Route list(has problem !!) :

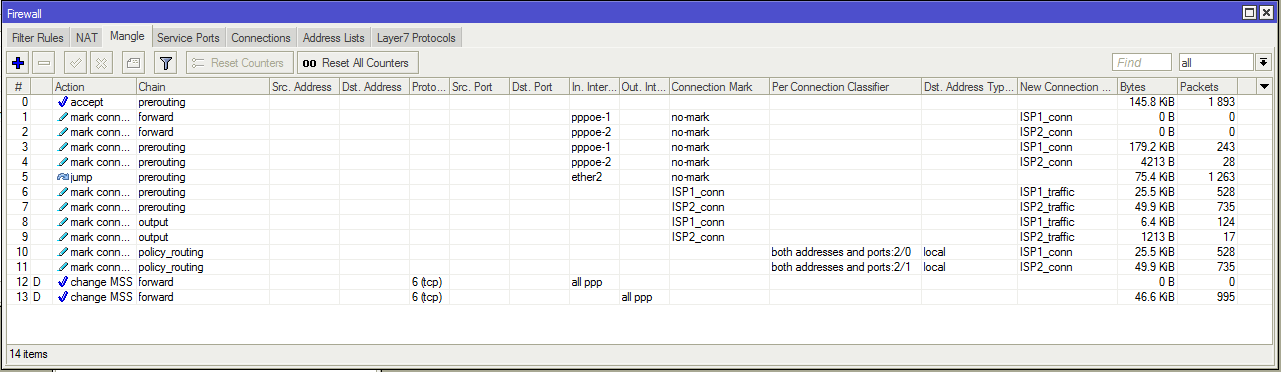

Mangle:
Who know where’s the problem ? :confused:

2

Hello,
your problem would be to:

/ip route

add check-gateway=arp distance=2 gateway=pppoe-1 - change with 1
add check-gateway=arp distance=3 gateway=pppoe-2 - change with 2

3

this configuration work fine for me just try it and let me know

the best test tool is IDM (internet download Manager)
download here: http://www.mutazhakmi.com/
WAN2:cable Modem
pppoe-out:adsl line

/ip route
add check-gateway=ping disabled=no distance=1 dst-address=0.0.0.0/0 gateway=pppoe-out1 routing-mark=to_pppo-out1 scope=30 target-scope=10
add check-gateway=ping disabled=no distance=1 dst-address=0.0.0.0/0 gateway=WAN2 routing-mark=to_wan2 scope=30 target-scope=10
add check-gateway=ping disabled=no distance=1 dst-address=0.0.0.0/0 gateway=pppoe-out1 scope=30 target-scope=10
add check-gateway=ping disabled=no distance=1 dst-address=0.0.0.0/0 gateway=WAN2 scope=30 target-scope=10

4

Dear mikroman11, could you please show me your mangle rules, too? As I’ve understood from above, you have marked your ISP connections twice, so that’s why I need to show me your mangle rules.
I have the same problem with PPPoE connections.

5

i’m facing this issue and no one answered on my thread.. likely to be the same question

http://forum.mikrotik.com/t/merge-2-pppoe-wans/112760/1 but on different ports

6

I know. There’s no any ‘action=mark-routing’ rule in your config. You mark only connections, not routing, that’s why all your packets go to ‘main’ routing table.

Here’s an example: https://wiki.mikrotik.com/wiki/Manual:PCC#Application_Example_-_Load_Balancing
