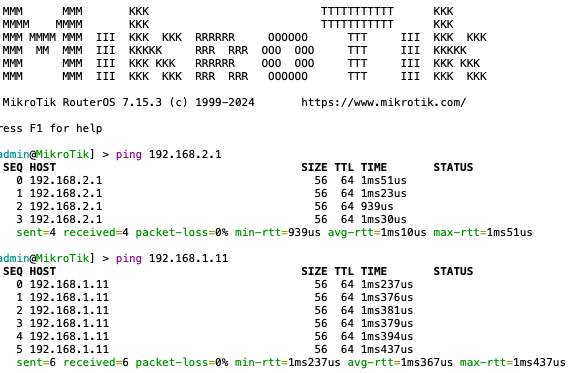

I 've assigned an IP to the SFP port and removed sap port from bridge ;in the routers console I’m able to ping the PC from I need to ping the gpon module and the sfp module .
I 'm not able to ping from the PC to the gpon module.
You should freddle the gruntbug, or maybe try foonting the turlingdromes.
Or - possibly better - follow the instructions here:
http://forum.mikrotik.com/t/forum-rules/173010/1
and post your complete configuration and a description of your network topology and of the issue you are having.
If you are using a configuration based on MikroTik’s defconf (that comes with non CCR/CRS models), then what you need to do is to add the sfp1/sfp-sfpplus1 interface to the interface list “WAN”. This will assure that connections from LAN to 192.168.2.1 will be “masqueraded”.
If you are not using the defconf firewall configuration then you can try to add an explicit srcnat masquerade rule:
/ip firewall nat
add action=masquerade chain=srcnat out-interface=sfp-sfpplus1
(change the out-interface accordingly).
Hi, thanks for the initial tip … I need to reach the Gpon module (sfp port) from a PC linked to an ethernet port (Dhcp ranges=192.168.1.10-192.168.1.99 ).
Now I’m not able to ping the Gpon module in the sfp port.
thanks again
# 2024-08-16 13:15:10 by RouterOS 7.15.3
# software id =
#
# model = RB5009UPr+S+
# serial number =
/interface bridge
add admin-mac= auto-mac=no comment=defconf name=bridge \
port-cost-mode=short
/interface ethernet
set [ find default-name=ether1 ] poe-out=off
set [ find default-name=ether2 ] poe-out=off
set [ find default-name=ether3 ] poe-out=off
set [ find default-name=ether5 ] poe-out=off
set [ find default-name=ether8 ] poe-out=off
set [ find default-name=sfp-sfpplus1 ] auto-negotiation=no rx-flow-control=\
auto speed=2.5G-baseX tx-flow-control=auto
/interface vlan
add interface=sfp-sfpplus1 name=vlan1 vlan-id=835
/interface pppoe-client
add add-default-route=yes disabled=no interface=vlan1 name=pppoe-out1 \
use-peer-dns=yes user=timadsl
/interface list
add comment=defconf name=WAN
add comment=defconf name=LAN
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip pool
add name=default-dhcp ranges=192.168.88.10-192.168.88.254
add name=Dhcp ranges=192.168.1.10-192.168.1.99
/ip dhcp-server
add address-pool=default-dhcp disabled=yes interface=bridge lease-time=10m \
name=defconf
add address-pool=Dhcp interface=bridge name=server1
/queue type
add kind=fq-codel name=Fq_Codel
/queue simple
add disabled=yes dst=ether1 max-limit=800M/2G name=Fq_codel queue=\
Fq_Codel/Fq_Codel target=ether1,ether1 total-queue=Fq_Codel
/interface bridge port
add bridge=bridge comment=defconf interface=ether2 internal-path-cost=10 \
path-cost=10
add bridge=bridge comment=defconf interface=ether3 internal-path-cost=10 \
path-cost=10
add bridge=bridge comment=defconf interface=ether4 internal-path-cost=10 \
path-cost=10
add bridge=bridge comment=defconf interface=ether5 internal-path-cost=10 \
path-cost=10
add bridge=bridge comment=defconf interface=ether6 internal-path-cost=10 \
path-cost=10
add bridge=bridge comment=defconf interface=ether7 internal-path-cost=10 \
path-cost=10
add bridge=bridge comment=defconf interface=ether8 internal-path-cost=10 \
path-cost=10
add bridge=bridge comment=defconf interface=ether1 internal-path-cost=10 \
path-cost=10
add bridge=bridge disabled=yes interface=sfp-sfpplus1 unknown-unicast-flood=\
no
/ip firewall connection tracking
set udp-timeout=10s
/ip neighbor discovery-settings
set discover-interface-list=LAN
/interface list member
add comment=defconf interface=bridge list=LAN
add comment=defconf interface=pppoe-out1 list=WAN
/ip address
add address=192.168.88.1/24 comment=defconf disabled=yes interface=bridge \
network=192.168.88.0
add address=192.168.1.2/24 interface=bridge network=192.168.1.0
add address=192.168.2.2/24 comment="modulo Gpon" interface=sfp-sfpplus1 \
network=192.168.2.0
/ip dhcp-client
# DHCP client can not run on slave or passthrough interface!
add comment=defconf interface=ether1
/ip dhcp-server network
add address=192.168.1.0/24 comment="Configurazione personal" gateway=\
192.168.1.2
add address=192.168.88.0/24 comment=defconf gateway=192.168.88.1
/ip dns
set allow-remote-requests=yes
/ip dns static
add address=192.168.88.1 comment=defconf name=router.lan
/ip firewall filter
add action=accept chain=input comment=\
"defconf: accept established,related,untracked" connection-state=\
established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
invalid
add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
add action=accept chain=input comment=\
"defconf: accept to local loopback (for CAPsMAN)" dst-address=127.0.0.1
add action=drop chain=input comment="defconf: drop all not coming from LAN" \
in-interface-list=!LAN
add action=accept chain=forward comment="defconf: accept in ipsec policy" \
ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" \
ipsec-policy=out,ipsec
add action=fasttrack-connection chain=forward comment="defconf: fasttrack" \
connection-state=established,related hw-offload=yes
add action=accept chain=forward comment=\
"defconf: accept established,related, untracked" connection-state=\
established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" \
connection-state=invalid
add action=drop chain=forward comment=\
"defconf: drop all from WAN not DSTNATed" connection-nat-state=!dstnat \
connection-state=new in-interface-list=WAN
/ip firewall nat
add action=masquerade chain=srcnat comment="defconf: masquerade" \
ipsec-policy=out,none out-interface-list=WAN
/ip service
set telnet disabled=yes
set ftp disabled=yes
set ssh disabled=yes
set api disabled=yes
set api-ssl disabled=yes
/ipv6 firewall address-list
add address=::/128 comment="defconf: unspecified address" list=bad_ipv6
add address=::1/128 comment="defconf: lo" list=bad_ipv6
add address=fec0::/10 comment="defconf: site-local" list=bad_ipv6
add address=::ffff:0.0.0.0/96 comment="defconf: ipv4-mapped" list=bad_ipv6
add address=::/96 comment="defconf: ipv4 compat" list=bad_ipv6
add address=100::/64 comment="defconf: discard only " list=bad_ipv6
add address=2001:db8::/32 comment="defconf: documentation" list=bad_ipv6
add address=2001:10::/28 comment="defconf: ORCHID" list=bad_ipv6
add address=3ffe::/16 comment="defconf: 6bone" list=bad_ipv6
/ipv6 firewall filter
add action=accept chain=input comment=\
"defconf: accept established,related,untracked" connection-state=\
established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
invalid
add action=accept chain=input comment="defconf: accept ICMPv6" protocol=\
icmpv6
add action=accept chain=input comment="defconf: accept UDP traceroute" port=\
33434-33534 protocol=udp
add action=accept chain=input comment=\
"defconf: accept DHCPv6-Client prefix delegation." dst-port=546 protocol=\
udp src-address=fe80::/10
add action=accept chain=input comment="defconf: accept IKE" dst-port=500,4500 \
protocol=udp
add action=accept chain=input comment="defconf: accept ipsec AH" protocol=\
ipsec-ah
add action=accept chain=input comment="defconf: accept ipsec ESP" protocol=\
ipsec-esp
add action=accept chain=input comment=\
"defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=input comment=\
"defconf: drop everything else not coming from LAN" in-interface-list=\
!LAN
add action=accept chain=forward comment=\
"defconf: accept established,related,untracked" connection-state=\
established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" \
connection-state=invalid
add action=drop chain=forward comment=\
"defconf: drop packets with bad src ipv6" src-address-list=bad_ipv6
add action=drop chain=forward comment=\
"defconf: drop packets with bad dst ipv6" dst-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: rfc4890 drop hop-limit=1" \
hop-limit=equal:1 protocol=icmpv6
add action=accept chain=forward comment="defconf: accept ICMPv6" protocol=\
icmpv6
add action=accept chain=forward comment="defconf: accept HIP" protocol=139
add action=accept chain=forward comment="defconf: accept IKE" dst-port=\
500,4500 protocol=udp
add action=accept chain=forward comment="defconf: accept ipsec AH" protocol=\
ipsec-ah
add action=accept chain=forward comment="defconf: accept ipsec ESP" protocol=\
ipsec-esp
add action=accept chain=forward comment=\
"defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=forward comment=\
"defconf: drop everything else not coming from LAN" in-interface-list=\
!LAN
/system clock
set time-zone-name=Europe/Rome
/system note
set show-at-login=no
/tool graphing interface
add interface=ether8
add interface=ether5
add interface=ether3 store-on-disk=no
add interface=ether1 store-on-disk=no
add interface=ether2 store-on-disk=no
add interface=ether4 store-on-disk=no
/tool mac-server
set allowed-interface-list=LAN
/tool mac-server mac-winbox
set allowed-interface-list=LAN
thanks !.. now I’m able to ping the SFP port from the PC on another ip class address
Nothing important, but since you have ether1 added to the bridge, the default DHCP client on it is invalid, you should disable it to avoid the red message:
/ip dhcp-client
# DHCP client can not run on slave or passthrough interface!
add comment=defconf interface=ether1
ok, noticed
thanks
