How to Setup Hotspot? Under the this circumstances

RouterOS Beginner Basics
1

Hi Everybody,

I want to setup Hotspot but i can not. I read lots of document about installation hotspot but general hotspot settings not working for me.

I am trying recieve internet connection with Wlan1 and i want to share under the wlan2 , eth1 , eth2 etc. I recieve connection and i use normally with ethernet or wireless. When i try to setup hotspot my connection lost under the wlan2 and ethernet.

What is the problem ? I am a new user and sorry for my ignorance.

My routerboard model: RB153

Thank you

2

Once you have the router set up correctly, the hotspot is easy to install. Before I install the hotspot, I insure that the following entries are correct:
/ip address (WAN and LAN)
/ip route (default route)
/ip firewall nat (srcnat or masquerade)
/ip dns (primary, secondary and allow-remote-requests=yes)
/ip dhcp-server (install on interfaces that will have a hotspot)

Then connect to one of the localnet interfaces and see if you have internet access. If not, DO NOT CONTINUE! Get the router working as a router before installing the hotspot.

If you have questions about any of these, post the output of that section.

3

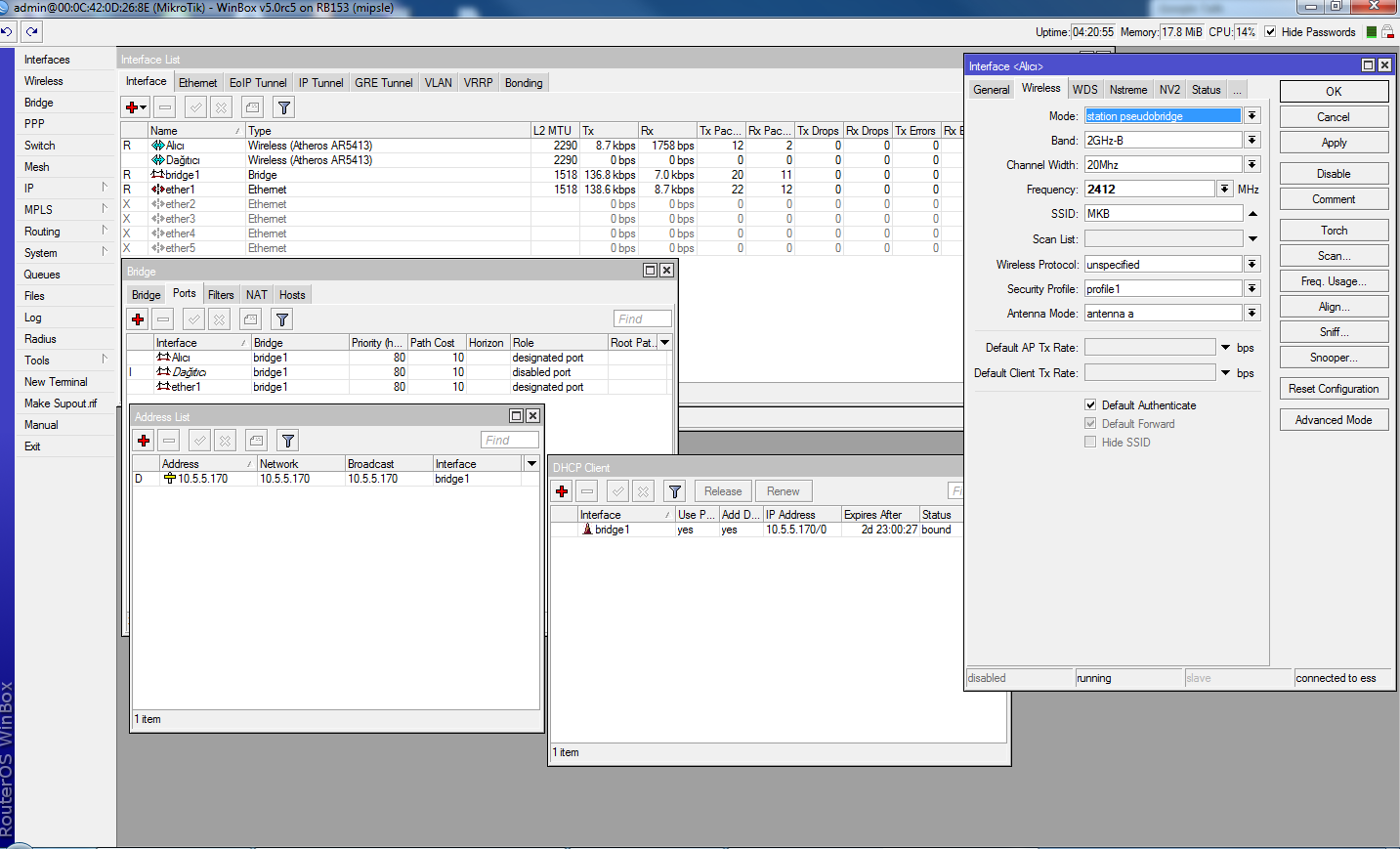

Than you for explanation. This is my configuration. I think my problem is related routing and ip adress.Because i dont do anything for routing also i dont know.

4

I think you should remove the gateway from the bridge. Then assign a different network to the bridge so that the wlan(your internet) and the local lan are on a different network. Check to see you get an internet connection when plugging into a port or over wireless (you need to setup DHCP or a static ip on your test computer). If the internet works then add the hotspot to the bridge.

5

jtroybailey is correct. Remove the gateway (WAN) interface from the bridge. Which interface is the WAN inteface?

The ip/subnet assigned to the bridge is not correct. It is a /32 subnet. I use /24, like this:

/ip address
add address=10.0.0.1/24 interface=bridge1

I see you have “dhcp-client” on the bridge. Remove that. That should be “dhcp-server”. Don’t install the dhcp-server until the rest is set correctly.

6

Thank you so much, i will try your suggestion.

7

If you remove the WAN interface from the bridge, and it gets its ip by dhcp, you should set up the dhcp-client on the WAN interface only. Then set the dhcp-server on the bridge once the ip, route, and dns are set.
