O I AM USING 450G WITH SIMPLE QUEUES . ROUTER O/S VERSION 5.13 AND I NEEED SOLUTION THAT ALL LOCAL LAN PORTS SHOULD ACCESS PUBLIC WHICH ARE FREE ON WAN IS IT POSSIBLE IF SO PLS GIVE SOLUTION I AM BIGINER
sorry for my poor explanation

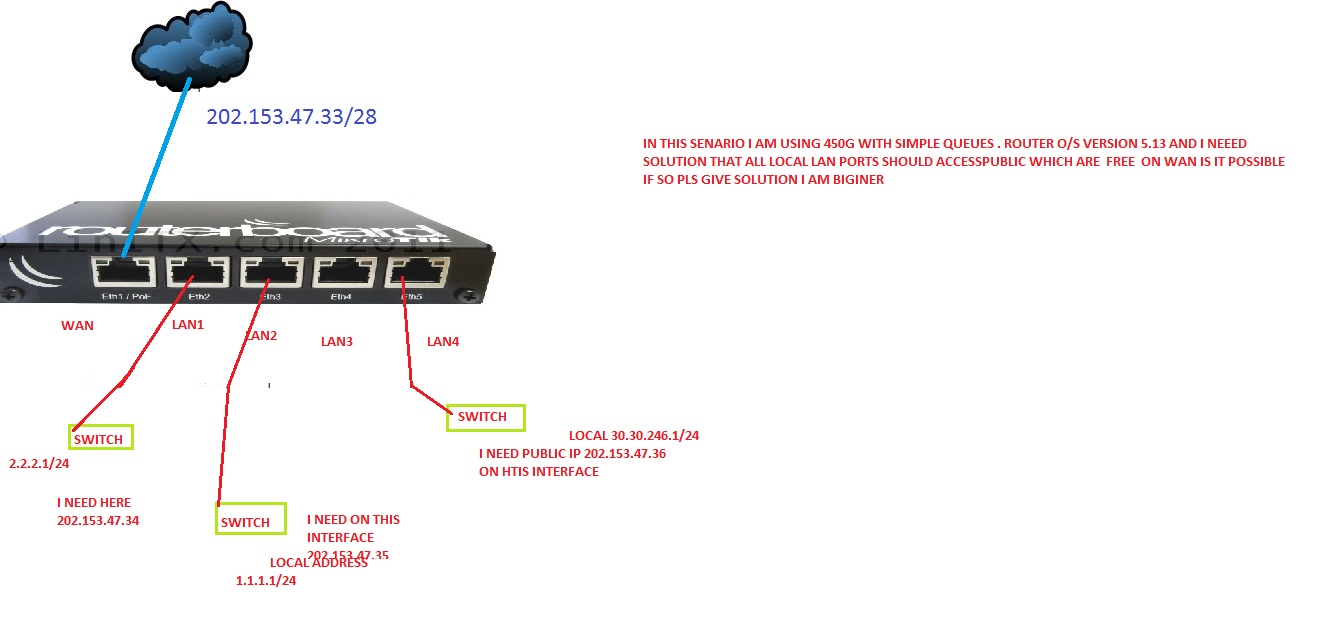

PLZ CHECK THE JPEG FILE ATTACHED BELOW
Hello,
You can make this with NAT. set all IPs to wan port (ether1) and create nat rules to the priate networks.
Read about NAT in the wiki.
Can u pls explai clearly i have added to wan interface and what should be done next what nat rule should be ritten ther pls help me
you can try this,
/ip firewall nat add chain=srcnat src-address=2.2.2.0/24 action=src-nat to-addresses=202.153.47.34
/ip firewall nat add chain=srcnat src-address=1.1.1.0/24 action=src-nat to-addresses=202.153.47.35
/ip firewall nat add chain=srcnat src-address=30.30.246.0/24 action=src-nat to-addresses=202.153.47.36
hello vik thanks for your reply i have done which u written but it is not working
Do you have a route to 0.0.0.0? With the correct gateway?
yes i did
Hello Hari,
have you checked internet on 2.2.2.0/24 pool.
or you can post your “export” data here…
yes i have checked net its comming. i should keep gateway as router ip
