Hi,
I have a RB433AH with 2 CM9 radios. Wlan1 is sector antenna on 5ghz for P2M, and wlan2 is a dish for P2P.
Internet is comming from ether1. Wlan1 and wlan2 are in WDS-Bridge. Clients on the sector antenna are with NanoStation5, they are in station-wds mode. When there is a traffic about 3-4Mbps, it start to lose packets. I try to change the channels, with no success.
I have several setups with wds on p2p links, there is no problem. But in P2M links, somethings wrong with the WDS…
Configuration is like this…
/interface bridge
add admin-mac=00:00:00:00:00:00 ageing-time=5m arp=enabled auto-mac=yes comment=“” disabled=no forward-delay=15s max-message-age=20s mtu=1500 name=wds-bridge priority=0x8000 protocol-mode=stp transmit-hold-count=6
/interface ethernet
set 0 arp=enabled auto-negotiation=yes comment=“” disabled=no full-duplex=yes mac-address=00:0C:42:3B:C1:02 mtu=1500 name=ether1 speed=100Mbps
set 1 arp=enabled auto-negotiation=yes bandwidth=unlimited/unlimited comment=“” disabled=no full-duplex=yes mac-address=00:0C:42:3B:C1:03 master-port=none mtu=1500 name=ether2 speed=100Mbps
set 2 arp=enabled auto-negotiation=yes bandwidth=unlimited/unlimited comment=“” disabled=no full-duplex=yes mac-address=00:0C:42:3B:C1:04 master-port=none mtu=1500 name=ether3 speed=100Mbps
/interface wireless security-profiles
set default authentication-types=“” eap-methods=passthrough group-ciphers=“” group-key-update=5m interim-update=0s mode=none name=default radius-eap-accounting=no radius-mac-accounting=no radius-mac-authentication=
no radius-mac-caching=disabled radius-mac-format=XX:XX:XX:XX:XX:XX radius-mac-mode=as-username static-algo-0=none static-algo-1=none static-algo-2=none static-algo-3=none static-key-0=“” static-key-1=“”
static-key-2=“” static-key-3=“” static-sta-private-algo=none static-sta-private-key=“” static-transmit-key=key-0 supplicant-identity=MikroTik tls-certificate=none tls-mode=no-certificates unicast-ciphers=“”
wpa-pre-shared-key=“” wpa2-pre-shared-key=“”
/interface wireless
set 0 ack-timeout=dynamic adaptive-noise-immunity=none allow-sharedkey=no antenna-gain=0 antenna-mode=ant-a area=“” arp=enabled band=5ghz basic-rates-a/g=6Mbps basic-rates-b=1Mbps burst-time=disabled comment=“”
compression=no country=no_country_set default-ap-tx-limit=0 default-authentication=yes default-client-tx-limit=0 default-forwarding=yes dfs-mode=none disable-running-check=no disabled=no disconnect-timeout=3s
frame-lifetime=0 frequency=5300 frequency-mode=manual-txpower hide-ssid=no hw-retries=4 mac-address=00:0B:6B:DB:0D:34 max-station-count=2007 mode=ap-bridge mtu=1500 name=wlan1 noise-floor-threshold=default
on-fail-retry-time=100ms periodic-calibration=default periodic-calibration-interval=60 preamble-mode=both proprietary-extensions=post-2.9.25 radio-name=000B6BDB0D34 rate-set=default scan-list=default
security-profile=default ssid=NET55T station-bridge-clone-mac=00:00:00:00:00:00 supported-rates-a/g=6Mbps,9Mbps,12Mbps,18Mbps,24Mbps,36Mbps,48Mbps,54Mbps supported-rates-b=1Mbps,2Mbps,5.5Mbps,11Mbps
tx-power-mode=default update-stats-interval=disabled wds-cost-range=50-150 wds-default-bridge=wds-bridge wds-default-cost=100 wds-ignore-ssid=no wds-mode=dynamic wmm-support=disabled
set 1 ack-timeout=dynamic adaptive-noise-immunity=none allow-sharedkey=no antenna-gain=0 antenna-mode=ant-a area=“” arp=enabled band=5ghz-turbo basic-rates-a/g=6Mbps basic-rates-b=1Mbps burst-time=disabled comment=
“” compression=no country=no_country_set default-ap-tx-limit=0 default-authentication=yes default-client-tx-limit=0 default-forwarding=yes dfs-mode=none disable-running-check=no disabled=no disconnect-timeout=
3s frame-lifetime=0 frequency=5800 frequency-mode=manual-txpower hide-ssid=no hw-retries=4 mac-address=00:0B:6B:DB:0D:37 max-station-count=2007 mode=station-wds mtu=1500 name=wlan2 noise-floor-threshold=default
on-fail-retry-time=100ms periodic-calibration=default periodic-calibration-interval=60 preamble-mode=both proprietary-extensions=post-2.9.25 radio-name=000B6BDB0D37 rate-set=default scan-list=default
security-profile=default ssid=PPL station-bridge-clone-mac=00:00:00:00:00:00 supported-rates-a/g=6Mbps,9Mbps,12Mbps,18Mbps,24Mbps,36Mbps,48Mbps,54Mbps supported-rates-b=1Mbps,2Mbps,5.5Mbps,11Mbps tx-power-mode=
default update-stats-interval=disabled wds-cost-range=50-150 wds-default-bridge=wds-bridge wds-default-cost=100 wds-ignore-ssid=no wds-mode=dynamic wmm-support=disabled
/interface wireless manual-tx-power-table
set wlan1 comment=“” manual-tx-powers=“1Mbps:17,2Mbps:17,5.5Mbps:17,11Mbps:17,6Mbps:17,9Mbps:17,12Mbps:17,18Mbps:17,24Mbps:17,36Mbps:17,48Mbps:17,54Mbps:17,HT20-1:0,HT20-2:0,HT20-3:0,HT20-4:0,HT20-5:0,HT20-6:0,HT20-
7:0,HT20-8:0,HT40-1:0,HT40-2:0,HT40-3:0,HT40-4:0,HT40-5:0,HT40-6:0,HT40-7:0,HT40-8:0”
set wlan2 comment=“” manual-tx-powers=“1Mbps:17,2Mbps:17,5.5Mbps:17,11Mbps:17,6Mbps:17,9Mbps:17,12Mbps:17,18Mbps:17,24Mbps:17,36Mbps:17,48Mbps:17,54Mbps:17,HT20-1:0,HT20-2:0,HT20-3:0,HT20-4:0,HT20-5:0,HT20-6:0,HT20-
7:0,HT20-8:0,HT40-1:0,HT40-2:0,HT40-3:0,HT40-4:0,HT40-5:0,HT40-6:0,HT40-7:0,HT40-8:0”
/interface wireless nstreme
set wlan1 comment=“” disable-csma=no enable-nstreme=no enable-polling=yes framer-limit=3200 framer-policy=none
set wlan2 comment=“” disable-csma=no enable-nstreme=no enable-polling=yes framer-limit=3200 framer-policy=none
/interface bridge port
add bridge=wds-bridge comment=“” disabled=no edge=auto external-fdb=auto horizon=none interface=ether1 path-cost=10 point-to-point=auto priority=0x80
add bridge=wds-bridge comment=“” disabled=no edge=auto external-fdb=auto horizon=none interface=wlan1 path-cost=10 point-to-point=auto priority=0x80
add bridge=wds-bridge comment=“” disabled=no edge=auto external-fdb=auto horizon=none interface=wlan2 path-cost=10 point-to-point=auto priority=0x80
add bridge=wds-bridge comment=“” disabled=no edge=auto external-fdb=auto horizon=none path-cost=10 point-to-point=auto priority=0x80
/interface bridge settings
set use-ip-firewall=no use-ip-firewall-for-vlan=no
/interface ethernet mirror
set mirror-port=none source-port=none
/interface l2tp-server server
set authentication=pap,chap,mschap1,mschap2 default-profile=default-encryption enabled=no max-mru=1460 max-mtu=1460 mrru=disabled
/interface ovpn-server server
set auth=sha1,md5 certificate=none cipher=blowfish128,aes128 default-profile=default enabled=no keepalive-timeout=60 mac-address=FE:53:41:7C:88:8A max-mtu=1500 mode=ip netmask=24 port=1194
require-client-certificate=no
/interface pptp-server server
set authentication=mschap1,mschap2 default-profile=default-encryption enabled=no keepalive-timeout=30 max-mru=1460 max-mtu=1460 mrru=disabled
/interface wireless align
set active-mode=yes audio-max=-20 audio-min=-100 audio-monitor=00:00:00:00:00:00 filter-mac=00:0E:8E:0D:0E:9A frame-size=300 frames-per-second=25 receive-all=no ssid-all=no
/interface wireless sniffer
set channel-time=200ms file-limit=10 file-name=“” memory-limit=10 multiple-channels=no only-headers=no receive-errors=no streaming-enabled=no streaming-max-rate=0 streaming-server=0.0.0.0
/interface wireless snooper
set channel-time=200ms multiple-channels=yes receive-errors=no
[admin@Home RB433AH] /interface>

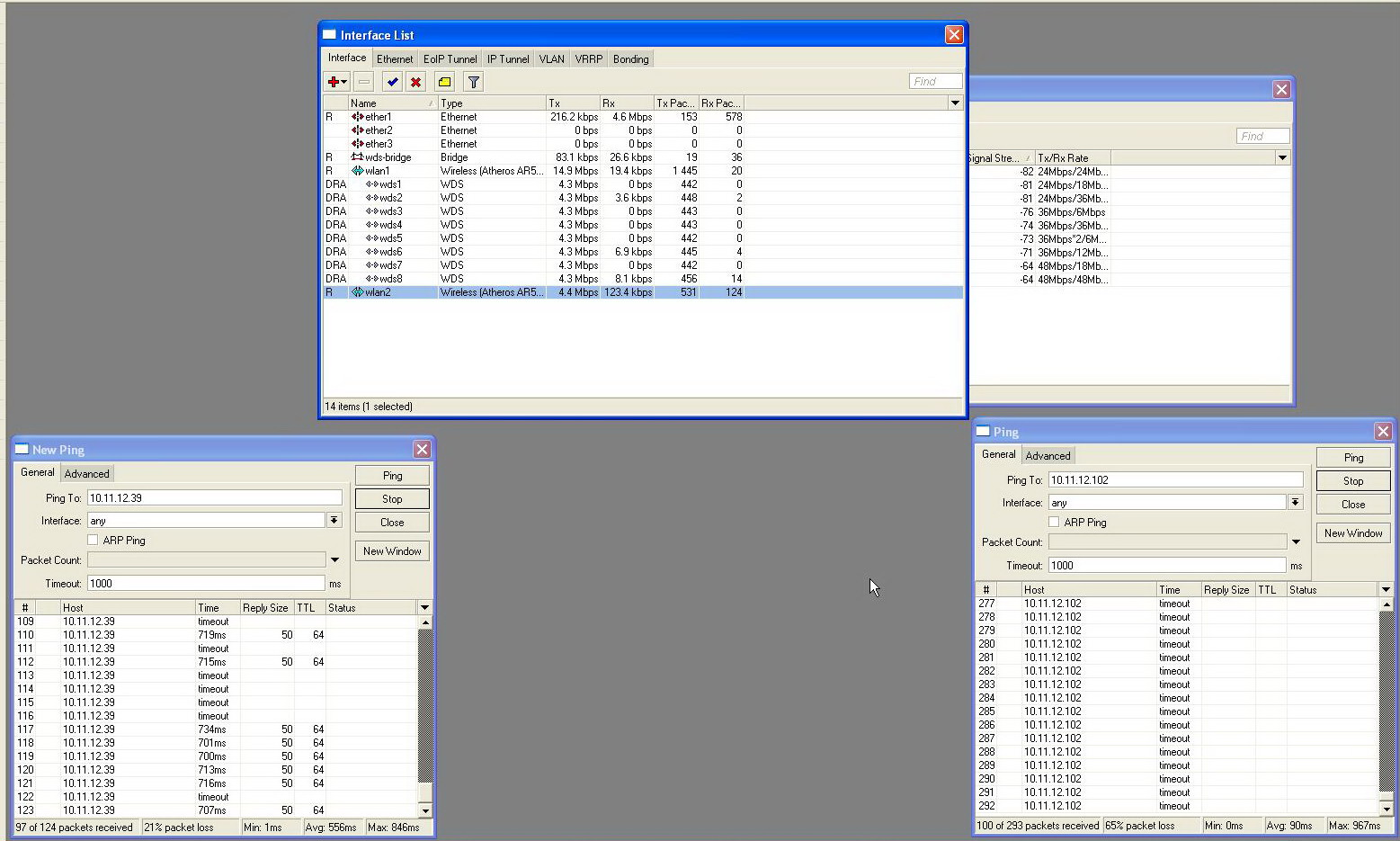

Sometimes there is a very strange problem. Here is a screen…
what is due this?
