hi all
i have problem in mikrotik rb 912 p2p 6 km with dish antenna 30 dbi the CCQ is not good some time CCq is go to 50% i tray Change frequency but its same any 1 can hellp me pls coz its make me crazy
Thank you
Hi
Use Spectrum analyzer to get best (clear) frequency.
please read this article:http://wiki.mikrotik.com/wiki/Manual:Spectrum_analyzer
i tray the good 1 and now its 44-
but the ccq not good any 1 have Information About installation RB 912 or can hellp me in teamviewer
Regards for all
Hi.
Can you post your PTP configurations. and your antennas brand and model.
hi
yes my friend
antennas is dish ubnt 30 dbi

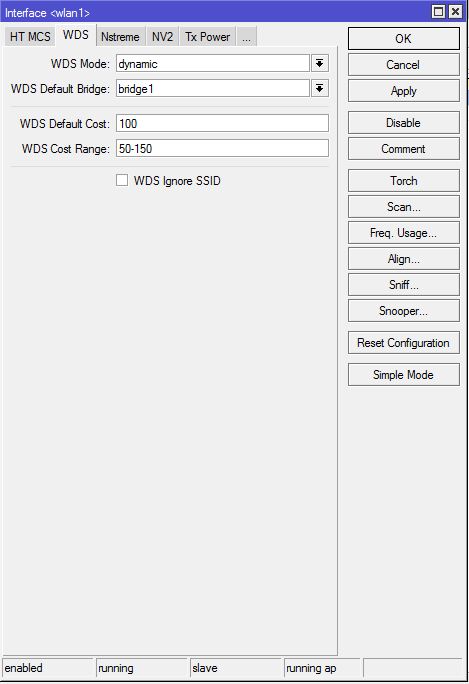

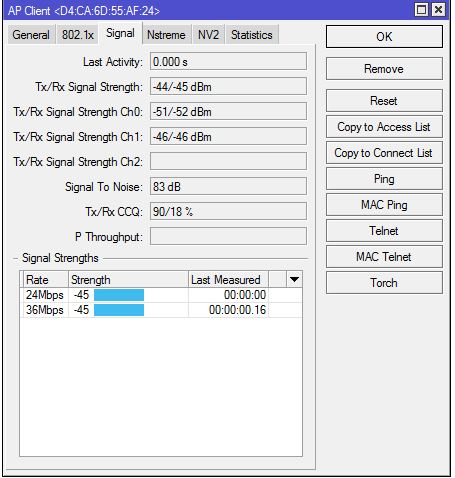

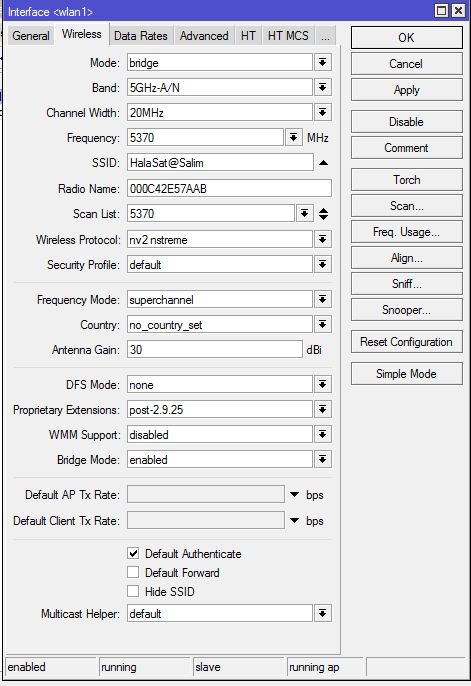

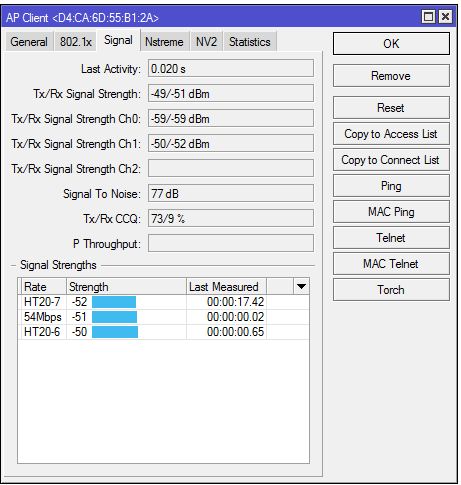

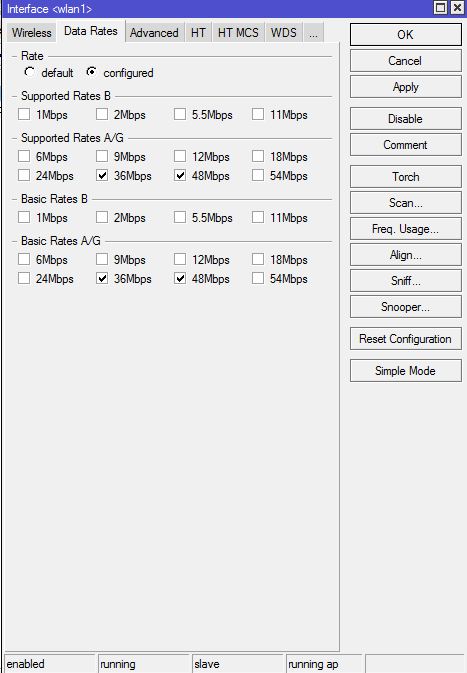

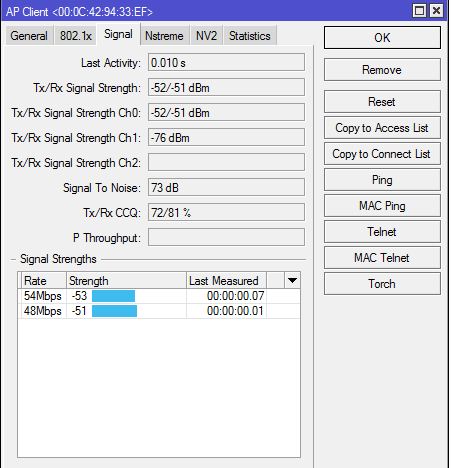

this is configurations in pic
i tray many configurations but its same ccq bad and net bad this configurations The distance its 9 km
Is there a video programming RB912 p2p ?
no 1 can hellp me ? is this RB912 have problem ?
DECREASE THE POWER!!!
-43 is too high!
30dB dish for 9 Km is excessive.
[My P2P with 28dBm dish, dual polarized, RB433AH + RB52Hn at 23,5Km do 180Mb/s effective with NV2 and 20MHz + 20MHz channel]
For link less than 10Km I use Sextant…
For link less than 5Km I use SXT…
The signal strength must float between -66 to -63 for optimal performance, or you obtain more ROS (return of signal) than 1:1
DO NOT USE WPA or TKIP as CRYPTOGRAPHIC PROFILE, but only WPA2 AES-CCM
Also, I see some error in wireless config, use my example for max throughput:
http://forum.mikrotik.com/t/2-sxt-ppp-one-way-signal-is-bad/74620/1
YOUR DISH ARE DUAL POLARIZED?
IF ARE DUAL POLARIZED HT must transmit and receive on both channel 0 and 1
IF ARE SINGLE POLARIZED HT must transmit and receive only on channel 0 and NOT on 1 [and also the module must be properly internal connected]
Remember to set: country=italy with your country!
Hi
Hi Thanks for the DUal Polarized information.
I was unaware with this and that is why my CCQ float too much. Thanks for the information.
so bad i dont like RB912
[…]
this is my dish
and i have other link 30 km but its ubnt rocket m5 ccq is 99% and its so good
why this Mikrotik is like this bad ?
re-read my previous post.
my frind i have other link 25 km its same ccq is so bad in same dish 30 dbi and RB912
u have skype ?
Yes, I do support by skype, teamviewer and so on in free time.
My skype ID: vahid.shahbazian
Email address: vahid.shahbazian@gmail.com
