Please guys I want to add another range IP on the same lan card i’m useing R.B433 (UAH) version 3.30 … for example (192.168.1.1 and 192.168.7.1) on the same lan card because ((the ip pool is empty ))the client is over 255
just add it
You should rather increase your subnet mask on the existing IP address. It’s private IP address space, so there’s no issue with that. Grow the mask, adjust existing DHCP pools and server network configuration, make sure you change the subnet mask everywhere else it’s referred to (firewall filters, NAT, mangle etc.) and you’re good to go. If you plan it right there’s zero downtime.

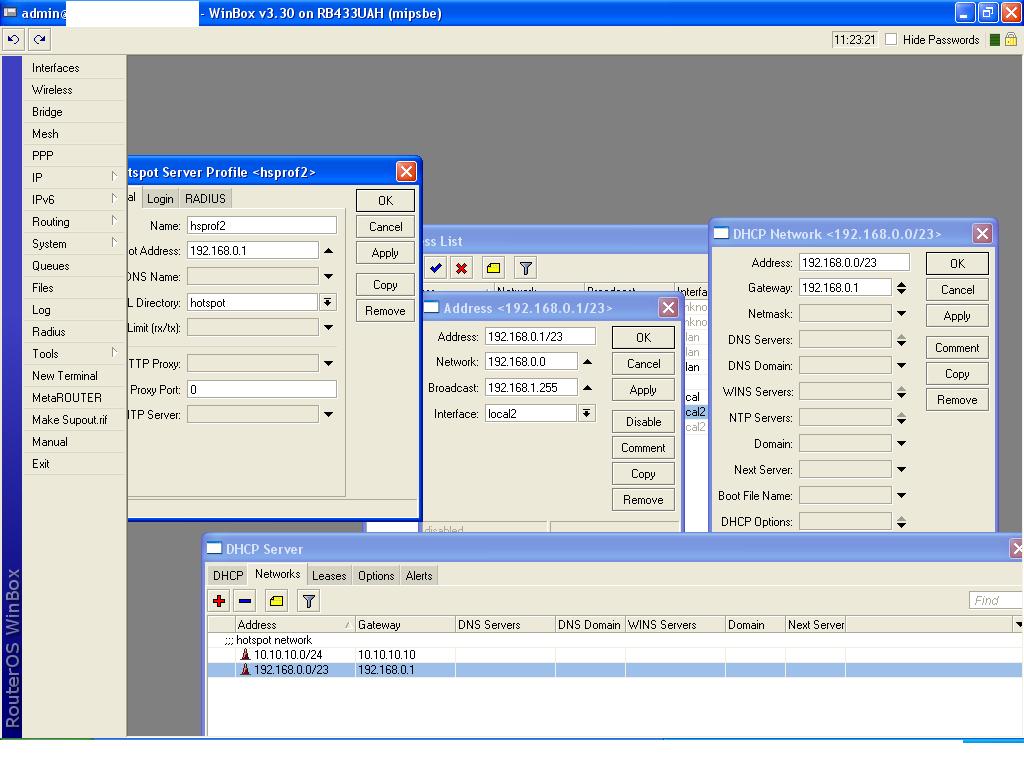

look this pic and Please simply explain because i tried alot but all the time fails … am very sorry for disturbance
To double the number of IPs on that network change the address to 192.168.0.1/23, the network address to 192.168.0.0 and the broadcast address to 192.168.1.255. At that point the network has usable IP addresses from 192.168.0.1 to 192.168.1.254 and can accommodate 509 users.
You’ll have to change all other settings in the router that refer to the old address and the old subnet mask - you’ll have to change the gateway handed out via DHCP from 192.168.1.1 to 192.168.0.1, for example, and possibly other settings.
It would probably be a good idea to read up on subnetting to properly understand how it works. It’s a very fundamental network thing that is important to understand if you’re going to operate network equipment. You can use Google to find tutorials and explanations.

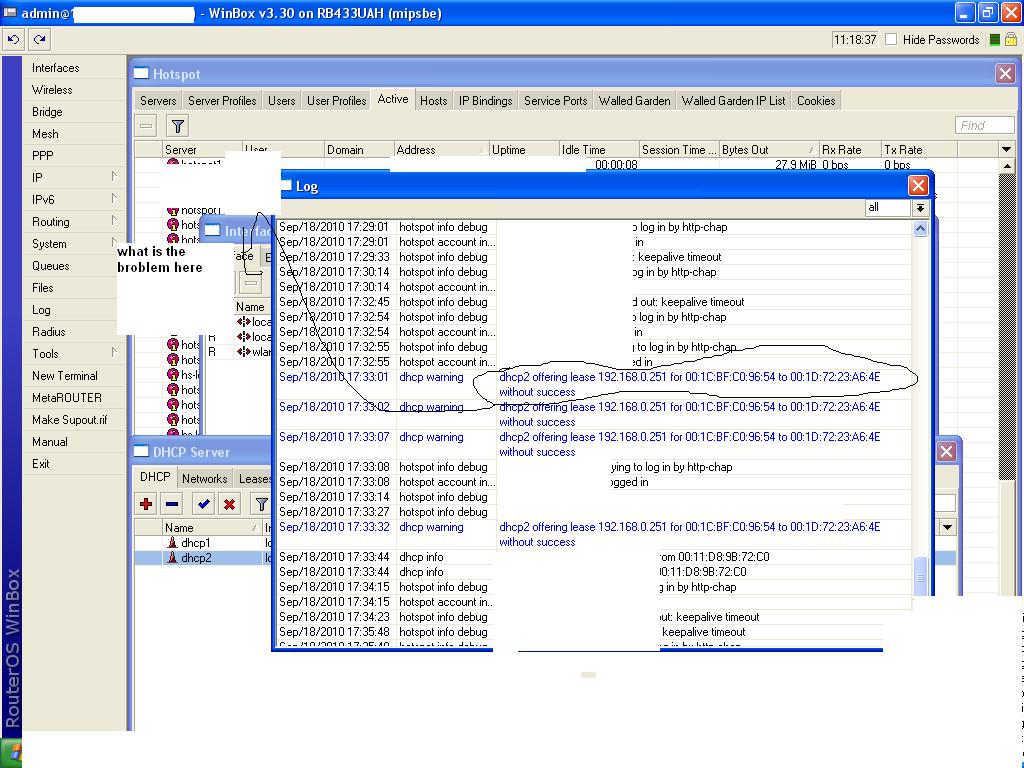

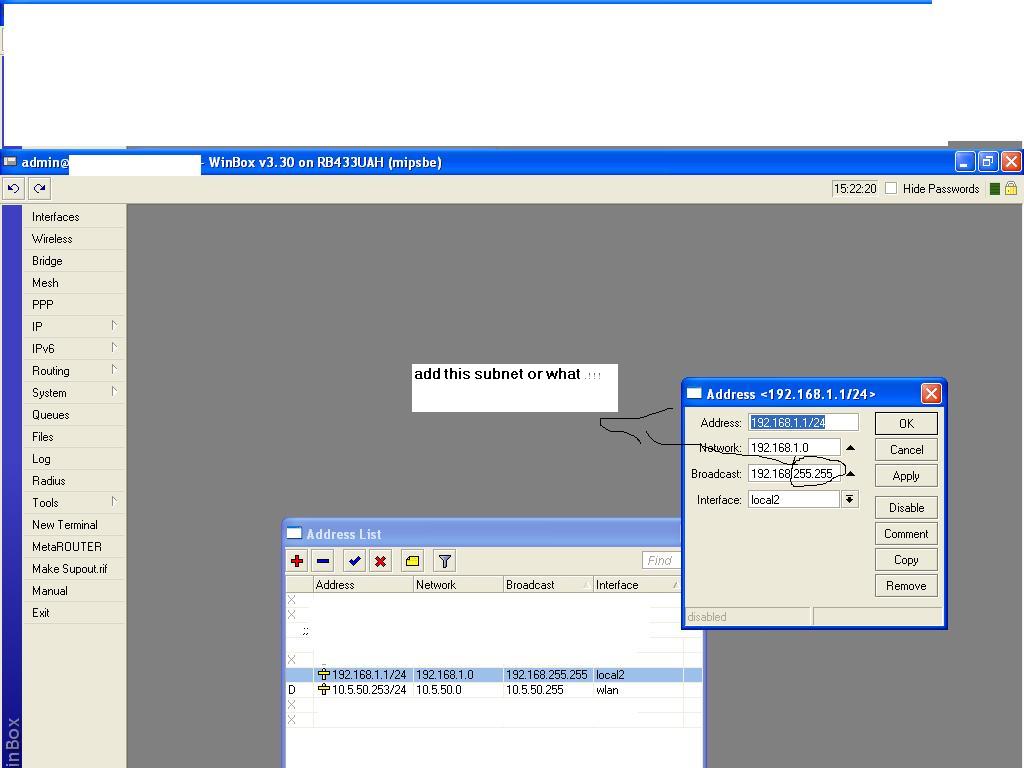

look this pics and please tell me what to do… we are close to solving the problem
