Using the i40e driver, bring an interface up with a DAC already inserted and linked. The interface does not register “link ok”. The DAC must be removed and plugged again to get the port to link.
/interface ethernet
set [ find default-name=ether6 ] mtu=9100 name=ether6
I have noticed a problem using the i40e driver. My adapter is an Intel X710-DA4. With a DAC in the SFP+ port, the interface does not register “link ok” when it is brought up. The DAC must be removed and plugged again to get the port to link. I also have a LR module (Edimax MG-10GAS1) and interestingly this does not have any problem. The problem occurs both on boot of the router and also if I manually disable and enable the interface.
The port shows it is receiving bytes, but there is no transmit. No surprise because it thinks the link is down.
# NAME RX-BYTE TX-BYTE RX-PACKET TX-PACKET R T TX-QU R T
7 RS ether6 3 972 0 66 0 0 0 0 0 0
I have also tried a couple different SFP+ to copper transceivers. They also have this problem.
My theory is that there is a race condition with the link status. When using the LR fiber transceiver (the one which works fine) the link is a bit slower to come up. This additional time delay allows for the Mikrotik software to register the link up status. With the DAC and copper transceivers, the link comes up faster. This causes the Mikrotik software to miss the link transition.
I noticed that 7.8beta2 has the following updates:
*) x86 - added support for TP-Link TG-3468;
*) x86 - fixed SR-IOV support for Intel X710 series NIC;
*) x86 - improved Intel 500 series 10G SFP module support;
*) x86 - improved stability for Intel X550 series NIC with SR-IOV;
But unfortunately when I pass through the x710 network card to chr on the pve 7.3-3 platform, I still have the same problem.
I noticed that 7.8beta2 has the following updates:
*) x86 - added support for TP-Link TG-3468;
*) x86 - fixed SR-IOV support for Intel X710 series NIC;
*) x86 - improved Intel 500 series 10G SFP module support;
*) x86 - improved stability for Intel X550 series NIC with SR-IOV;
But unfortunately when I pass through the x710 network card to chr on the pve 7.3-3 platform, I still have the same problem.
Minisforum Ms-01 with the X710 has the same issue. Disabling / enabling the interface on the X86 ROS box does nothing, but disabling/enabling on the CRS326 will bring it back up. Works fine until the X86 box is rebooted again. Really frustrating. Was hoping to build a killer routerOS box out of this thing but it looks like it’s going to have to go to OpnSense or something.
Having the same issue with MS-01 and X710 on latest Proxmox and passthrough.
I have to disable/enable the interface on the switch or unplug and plug back the DAC.
Tried two DACs and two SPF+ RJ45 modules. No difference,
Using CRS312-4C+8XG as switch and Mikrotik XS+DA0001 DAC. Mikrotik S+RJ10 also not working.
Contacted Mikrotik support and they advised to upgrade to a 7.15.something beta. Same issue.
So, 7.14.2, still same issue.
Machine was just started.
SSH to Proxmox host and do an ip a to show the interface is there.
Login to Proxmox web.
Start Mikrotik CHR VM.
Open VM’s console and check ethernet for link.
Result: no link.
Reboot machine.
SSH to Proxmox host and issue ethtool enp3s0f0 (with or without watch -n1 does not matter)
Login to Proxmox web.
Start Mikrotik CHR VM.
Open VM’s console and check ethernet for link.
Result: link.
I have repeated this multiple times to make sure it was not just a fluke.
Now, I have absolutely no clue why just issuing ethtool enp3s0f0 before starting the VM fixes this problem.
There is nothing changed on the nic, just displaying some info about it.
Issuing the command after the VM has been started will throw some error that it cannot find the interface and does not fix the issue.
How to automate it until a fix will be available (if ever):
Edit /etc/network/interfaces file and add pre-up /usr/sbin/ethtool like:
auto enp3s0f0
iface enp3s0f0 inet manual
pre-up /usr/sbin/ethtool enp3s0f0
auto enp3s0f1
iface enp3s0f1 inet manual
pre-up /usr/sbin/ethtool enp3s0f1
Need auto enp3s0f0 and auto enp3s0f1 or else the pre-up command is not executed.
Maybe anyone more versed can shed a light on this?
Forget all the stuff above.
Just setting RX and TX flow control on the CHR interface to auto fixed my issue. (off by default)
Strangely, off or auto is still off when doing a
/interface/ethernet/monitor 0
, but somehow it works. I guess setting to auto changes something else also.
i guess something´s up on with new ixge drivers intel running on the routerOS V7.1XX
I am running bare metal x86_64 on server BGP with Mellanox Connect-x4 CX4121 2 Ports and a Intel X710da4 mezzanine card with 4 portas sfp+
and on the other server PPPOE server with Mellanox 2 ports and intel i5xx with 2 ports sfp+ and 2 ports 1gb
and plugged intel port i5xx and on the other bgp side intel x710.. bought intel gbic 850nm and patch cord multimode 3mts..

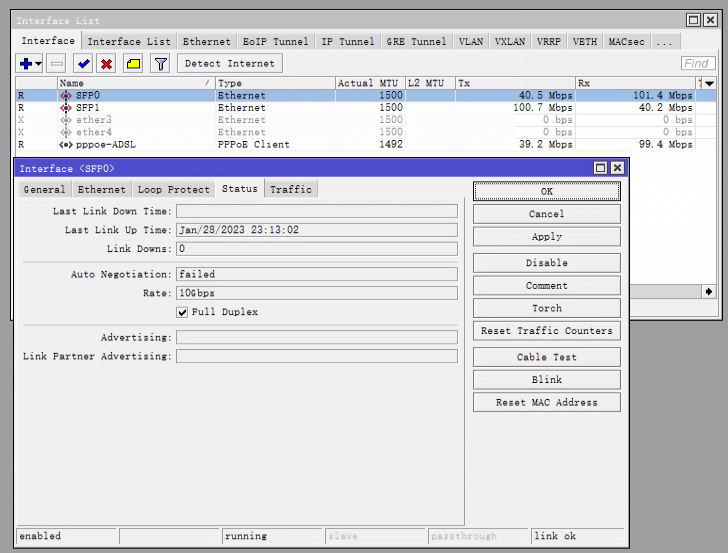

on the PPPOE server side intel i5xx i get auto negotiation done 10gbps.. but on the Intel x710da4 port i see connected but autonetogiation failed 10gbps..
connected and traffic passing by around 2gbps.. but throus errors on the tx queue drops rx-errors..
i have changed queues to multi-ethernet with queue-size packets 5000 on both servers.. but still get also errors..
which is stange enough.. in the mean time BGP server Mellanox connect-x4 ports and on PPPOE server OLTs connected on Mellanox ports .. we don´t get any errors.. so its something on the Ixgbe drivers for shure..
even do i was told my intel nic cards has firmwares outdated.. so i wen to intel website and have upgraded both cards with latest 2024 igxbe firmwares.. plugged them back in the servers.. and still get the same errors.. around 5k to 200000 rx-errors every 24h… aldo traffic total troughput on the nics.. around 100000,00 GiB passed through.. i also received some chelsio quadcard T540 will make some testing on them with the latest v7 stable versions.. to see if i get any better
One other thing do..is on the ethernet interface… it does not detect the ports as sfp-plus.. it detects them all as ethernet, and therefore we cannot see diagonstics on the gbics..
even do i had 2 different models of gbics.. from intel… and tested them also and still throws rx-errors..
whats funny about it is we left a ping and trouceroute running on the BGP server to external domain IP and we did not loose any packets on ping.. and traceroute.. which makes me wonder where are those RX-errors being lost os discarded inside the local network for shure..
