I'm Stuck here and need help

RouterOS Beginner Basics
1

I’m running on two separate mikrotik 333 and rb 52 systems on one high site with 2 Horizontal, 90 degress, 16Dbi Sectors on each RB

Each MiniPci has been configured to issue IP’s (DHCP) and I’ve tested all, working fine.

I have WDS on every router interphase but not on same frequencies cause I thought the’ll overlap.

Same SSID on all.

Now I want to create a PPPOE server, How do I go about. I’ve read PPPOE instructions but what puzzles me is, the PPPOE server will issue IP’s and the RB’s are also issuing IP’s. Which should I stop or will they work in that setup

Guys, I need any comments and sugestions I can get.

Another thing, The internet connection centre and where the PPPOE server will be located is on a remote area so I also installed 1 More minipci on each and configured as a bridge where on my servers I configured one AP Brigde. how do I route all traffik to that one AP Bridge in my Office.

Again, I can reconfigure that whole thing if you guys believe it won’t work, just give me feedback and where to change what.

Kind Regards

Sanele

2

if you will use PPPoE, you don’t need DHCP

3

thank you

So how will the clients know where the PPPOE server is.

and do I connect my PPPOE server on a bridge or client (configurations)

4

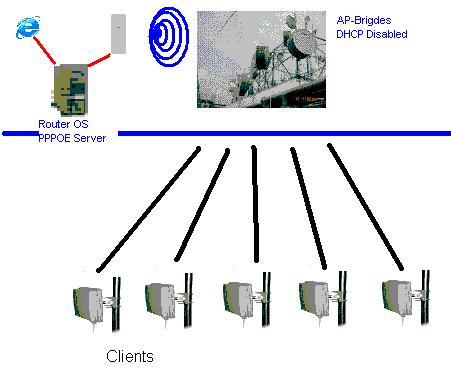

Based on the pic attached, How will the clients know where the server is located. Say the AP routes them, How do I configur the AP’s to do that or will they automatically know. Another Q

what do I configure my PPPOE Radio as, Brigde, Ap, or Client

5

there must be a bridge in between the client and the server, then they will know. PPPoE server doesn’t need an IP, clients discover it by service name.

you can’t have the server in some other network, it must be either direcly on the same network, or at least the inbetween device must be a bridge

6

Or use PPPoE relay.
