Please explain why inconsistencies in the Graphs? Graphs is work 3 days.

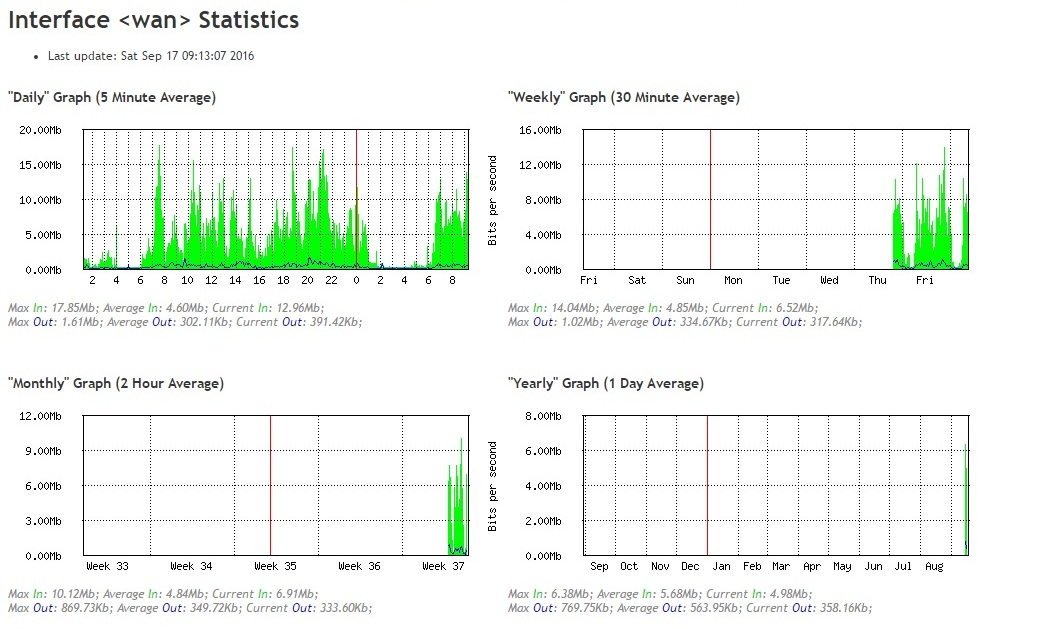

“Daily” Graph
Max In: 17.85Mb; Average In: 4.62Mb; Current In: 8.83Mb;
Max Out: 1.61Mb; Average Out: 302.78Kb; Current Out: 335.18Kb;
“Weekly” Graph
Max In: 14.04Mb; Average In: 4.85Mb; Current In: 6.52Mb;
Max Out: 1.02Mb; Average Out: 334.67Kb; Current Out: 317.64Kb;
resolution is lower for the weekly and monthly.
You will find the same results if you use a 3rd party rrd utility.
If the functionality is in ROS it should work.
And weekly MAX IN should not be less than a daily MAX IN.
This is expected, as it is from all rrd based graphing. I’m sorry I don’t have a better answer for you.
see this older manual page:
https://www.mikrotik.com/testdocs/ros/2.9/tools/graphing.php
It states:
"
RouterOS generates four graphics for each item:
“Daily” Graph (5 Minute Average)
“Weekly” Graph (30 Minute Average)
“Monthly” Graph (2 Hour Average)
“Yearly” Graph (1 Day Average)
"
If you consider the quoted text, the answer to your original post should become clear.
Kind regards.
