I just got this board in and it is working great!
The Hardware:
1x Intel D945GCLF2
1X 2GB Kingston DDR2 PC-677 Ram
1x Mushkin 32GB SSD SATA

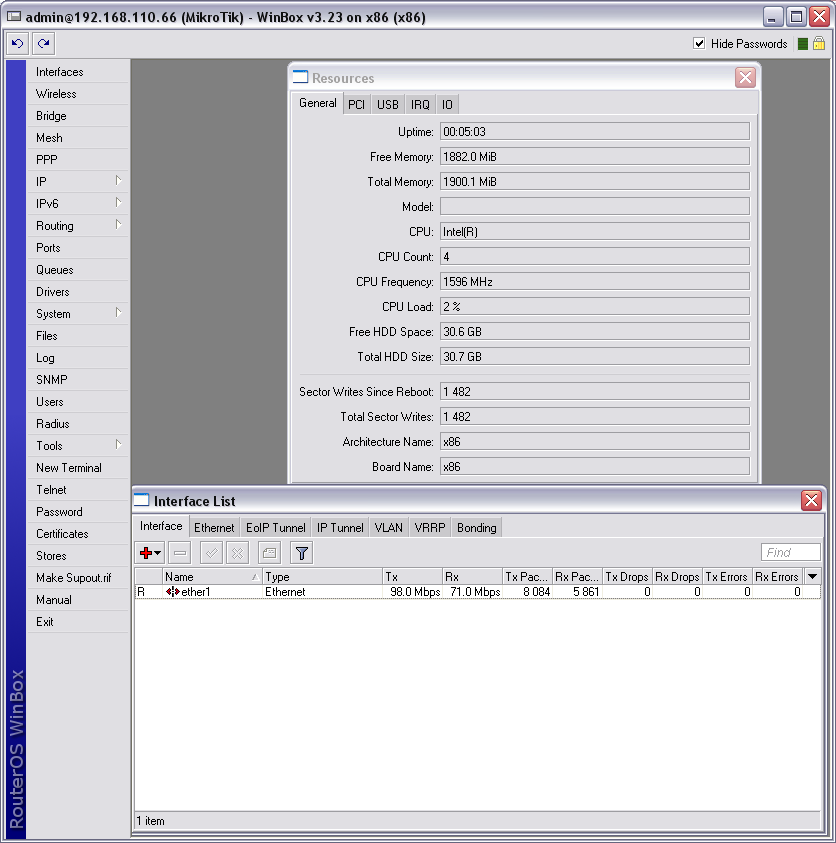

Just some output:
[admin@MikroTik] /system resource> print
uptime: 3m16s
version: "3.23"
free-memory: 1928776kB
total-memory: 1945720kB
cpu: "Intel(R)"
cpu-count: 4
cpu-frequency: 1596MHz
cpu-load: 1
free-hdd-space: 30619064kB
total-hdd-space: 30779004kB
write-sect-since-reboot: 850
write-sect-total: 850
architecture-name: "x86"
board-name: "x86"
[admin@MikroTik] /system resource pci> print
# DEVICE VENDOR NAME IRQ
0 01:00.0 Realtek Semiconductor Co., Ltd. RTL8111/8168B PCI Express Gigabit Ethernet controller (rev: 2) 11
1 00:1f.3 Intel Corporation 82801G (ICH7 Family) SMBus Controller (rev: 1) 11
2 00:1f.2 Intel Corporation 82801GB/GR/GH (ICH7 Family) SATA IDE Controller (rev: 1) 11
3 00:1f.1 Intel Corporation 82801G (ICH7 Family) IDE Controller (rev: 1) 9
4 00:1f.0 Intel Corporation 82801GB/GR (ICH7 Family) LPC Interface Bridge (rev: 1) 0
5 00:1e.0 Intel Corporation 82801 PCI Bridge (rev: 225) 0
6 00:1d.7 Intel Corporation 82801G (ICH7 Family) USB2 EHCI Controller (rev: 1) 10
7 00:1d.3 Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #4 (rev: 1) 11
8 00:1d.2 Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #3 (rev: 1) 9
9 00:1d.1 Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #2 (rev: 1) 11
10 00:1d.0 Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #1 (rev: 1) 10
11 00:1c.3 Intel Corporation 82801G (ICH7 Family) PCI Express Port 4 (rev: 1) 255
12 00:1c.2 Intel Corporation 82801G (ICH7 Family) PCI Express Port 3 (rev: 1) 255
13 00:1c.0 Intel Corporation 82801G (ICH7 Family) PCI Express Port 1 (rev: 1) 255
14 00:1b.0 Intel Corporation 82801G (ICH7 Family) High Definition Audio Controller (rev: 1) 9
15 00:02.0 Intel Corporation 82945G/GZ Integrated Graphics Controller (rev: 2) 11
16 00:00.0 Intel Corporation 82945G/GZ/P/PL Memory Controller Hub (rev: 2) 0
[admin@MikroTik] /system resource usb> print
# DEVICE VENDOR NAME SPEED
0 5:1 UHCI Host Controller 12 Mbps
1 4:1 UHCI Host Controller 12 Mbps
2 3:1 UHCI Host Controller 12 Mbps
3 3:2 USB Keyboard 1.5 Mbps
4 2:1 UHCI Host Controller 12 Mbps
5 1:1 EHCI Host Controller 480 Mbps
[admin@MikroTik] /system resource irq> print
IRQ OWNER
1 [0 0 IO-APIC-edge i8042]
4 [0 0 IO-APIC-edge serial]
8 [0 0 IO-APIC-edge rtc]
9 [0 0 IO-APIC-fasteoi acpi]
12 [0 0 IO-APIC-edge i8042]
14 [0 0 IO-APIC-edge ide0]
16 [0 0 IO-APIC-fasteoi uhci_hcd:usb5]
16 ether1
18 [0 0 IO-APIC-fasteoi uhci_hcd:usb4]
19 [0 0 IO-APIC-fasteoi ata_piix]
19 [uhci_hcd:usb3]
23 [0 0 IO-APIC-fasteoi ehci_hcd:usb1]
23 [uhci_hcd:usb2]
[admin@MikroTik] /system resource io> print
PORT-RANGE OWNER
0x20-0x21 APIC
0x40-0x43 [timer0]
0x50-0x53 [timer1]
0x60-0x60 keyboard
0x64-0x64 keyboard
0x70-0x77 [rtc]
0x80-0x8F DMA
0xA0-0xA1 APIC
0xC0-0xDF DMA
0xF0-0xFF FPU
0x170-0x177 [0000:00:1f.1]
0x170-0x177 [piix]
0x1F0-0x1F7 [0000:00:1f.1]
0x1F0-0x1F7 [piix]
0x376-0x376 [0000:00:1f.1]
0x376-0x376 [piix]
0x3C0-0x3DF VGA
0x3F6-0x3F6 [0000:00:1f.1]
0x3F6-0x3F6 [piix]
0x3F8-0x3FF serial port
0x400-0x47F [0000:00:1f.0]
0x400-0x47F [pnp 00:06]
0x400-0x403 [ACPI PM1a_EVT_BLK]
0x404-0x405 [ACPI PM1a_CNT_BLK]
0x408-0x40B [ACPI PM_TMR]
0x410-0x415 [ACPI CPU throttle]
0x420-0x420 [ACPI PM2_CNT_BLK]
0x428-0x42F [ACPI GPE0_BLK]
0x500-0x53F [0000:00:1f.0]
0x500-0x53F [pnp 00:06]
0x680-0x6FF [pnp 00:06]
0xCF8-0xCFF [PCI conf1]
0x1000-0x1FFF [PCI Bus 0000:01]
0x1000-0x10FF [0000:01:00.0]
0x1000-0x10FF [r8169]
0x2000-0x201F [0000:00:1f.3]
0x2020-0x203F [0000:00:1d.3]
0x2020-0x203F [uhci_hcd]
0x2040-0x205F [0000:00:1d.2]
0x2040-0x205F [uhci_hcd]
0x2060-0x207F [0000:00:1d.1]
0x2060-0x207F [uhci_hcd]
0x2080-0x209F [0000:00:1d.0]
0x2080-0x209F [uhci_hcd]
0x20A0-0x20AF [0000:00:1f.2]
0x20A0-0x20AF [ata_piix]
0x20B0-0x20BF [0000:00:1f.1]
0x20B0-0x20BF [piix]
0x20C0-0x20C7 [0000:00:1f.2]
0x20C0-0x20C7 [ata_piix]
0x20C8-0x20CF [0000:00:1f.2]
0x20C8-0x20CF [ata_piix]
0x20E0-0x20E7 [0000:00:02.0]
0x20E8-0x20EB [0000:00:1f.2]
0x20E8-0x20EB [ata_piix]
0x20EC-0x20EF [0000:00:1f.2]
0x20EC-0x20EF [ata_piix]
Hope this can help some people…
