Invalid forward firewall drops

RouterOS General
1

When my OpenVPN client (phone) connects to rp1, I see a lot of invalid forward drops in my firewall. This happens if connections don’t have a proper connection state. Dropping them is an okay thing to do and is my intention. But they’re not supposed to be invalid. So I suspect I have a network configuration error that causes this. I suspect in either the static routes on rt1/rt2 or in the forwarding on rt2. Can someone double check to find my mistake? I haven’t got wiser with trail and error so far.

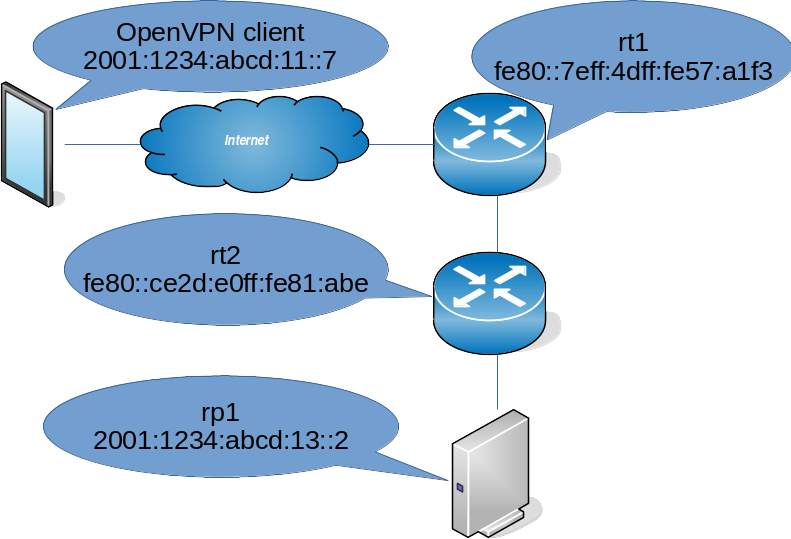

I have the following network:

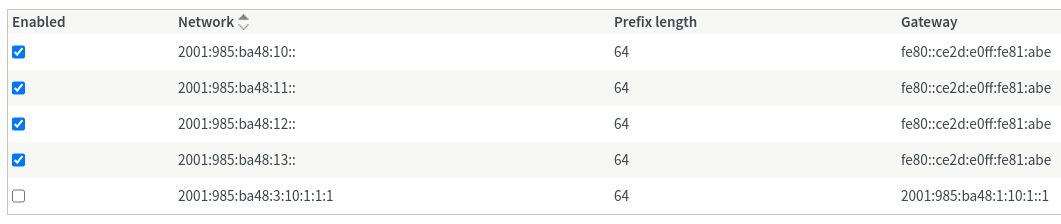

The static routes on rt1:
Screenshot from 2020-12-30 10-51-38.png
Routes on rt2:

[user@rt2] > /ipv6 route print
Flags: X - disabled, A - active, D - dynamic, C - connect, S - static, r - rip, o - ospf, b - bgp, U - unreachable
 #      DST-ADDRESS              GATEWAY                  DISTANCE
 0 ADC  2001:1234:abcd:10::/64    br0                             0
 1 ADC  2001:1234:abcd:11::/64    management                      0
 2 ADC  2001:1234:abcd:12::/64    replication                     0
 3 ADC  2001:1234:abcd:13::/64    public                          0

The OpenVPN connection listens on the public interface (eth0.13) and assigns clients an IP on the management interface (eth0.11).

Routes on rp1:

[user@rp1 ~]$ ip -6 route
::1 dev lo proto kernel metric 256 pref medium
2001:1234:abcd:1::/64 dev eth0 proto kernel metric 256 expires 4562sec pref medium
2001:1234:abcd:11::7 dev tun0 metric 1024 pref medium
2001:1234:abcd:11::/64 dev eth0.11 proto kernel metric 256 pref medium
2001:1234:abcd:11::/64 dev tun0 proto kernel metric 256 pref medium
2001:1234:abcd:12::/64 dev eth0.12 proto kernel metric 256 pref medium
2001:1234:abcd:13::/64 dev eth0.13 proto kernel metric 256 pref medium
fd00::/64 dev eth0 proto kernel metric 256 expires 3943sec pref medium
fe80::/64 dev eth0 proto kernel metric 256 pref medium
fe80::/64 dev eth0.11 proto kernel metric 256 pref medium
fe80::/64 dev eth0.12 proto kernel metric 256 pref medium
fe80::/64 dev eth0.13 proto kernel metric 256 pref medium
fe80::/64 dev tun0 proto kernel metric 256 pref medium
default via fe80::7eff:4dff:fe57:a1f3 dev eth0 proto ra metric 1024 expires 1791sec hoplimit 255 pref medium

nftables firewall configuration on rp1:

flush ruleset

define port_ssh = { 22, 900 }
define port_lmtp = 24
define port_smtp_relay = 25
define port_dns = 53
define port_http = 80
define port_snmp = 161
define port_snmp_trap = 162
define port_https = 443
define port_dhcpv6 = 546
define port_smtp_submission = 587
define port_imaps = 993
define port_vpn = 1194
define port_sasl = 2222
define port_pacemaker = 2224
define port_mysql = 3308
define port_gluster = { 24007, 24008 }
define port_gluster_brick = { 49152-49155 }

define service_mail = { $port_smtp_relay, $port_smtp_submission, $port_imaps }
define service_snmp = { $port_snmp, $port_snmp_trap }
define service_web = { $port_http, $port_https }
define service_gluster = { $port_gluster, $port_gluster_brick }

define int_native = "eth0"
define int_management = "eth0.11"
define int_replication = "eth0.12"
define int_public = "eth0.13"
define int_vpn = { "tun0", "tun1", "tun2" }

define ipv6_subnet_native = 2001:1234:abcd:1::/64
define ipv6_subnet_management = 2001:1234:abcd:11::/64
define ipv6_subnet_replication = 2001:1234:abcd:12::/64
define ipv6_subnet_public = 2001:1234:abcd:13::/64

define ipv4_subnet_native = 172.27.10.0/24
define ipv4_subnet_management = 172.27.11.0/24
define ipv4_subnet_replication = 172.27.12.0/24
define ipv4_subnet_public = 172.27.13.0/24

define ipv4_rfc3964 = {
        ::0.0.0.0/96, # IPv4 compatible
        ::ffff:0.0.0.0/96, # IPv4 mapped
        2002:0000::/24, # 0.0.0.0/8 (the system has no address assigned yet)
        2002:0a00::/24, # 10.0.0.0/8 (private class A (RFC 1918))
        2002:7f00::/24, # 127.0.0.0/8 (loopback)
        2002:ac10::/28, # 172.16.0.0/12 (private class B (RFC 1918))
        2002:c0a8::/32, # 192.168.0.0/16 (private class C (RFC 1918))
        2002:a9fe::/32, # 169.254.0.0/16 (IANA Assigned DHCP link-local)
        2002:e000::/19, # 224.0.0.0/4 (multicast), 240.0.0.0/4 (reserved and broadcast)
}

# 172.16.0.0/12, # private class B (RFC 1918)"
define bogon = {
        0.0.0.0/8, # self-identification (RFC 3330)"
        10.0.0.0/8, # private class A (RFC 1918)"
        127.0.0.0/8, # loopback (RFC 3330)"
        169.254.0.0/16, # link-local (RFC 3330)"
        192.168.0.0/16, # private class C (RFC 1918)"
        192.0.2.0/24, # test-net 1 (RFC 5737)"
        192.88.99.0/24, # 6to4 relay anycast (RFC 3068)"
        198.18.0.0/15, # BMWG testing (RFC 6815)"
        198.51.100.0/24, # test-net 2 (RFC 5737)"
        203.0.113.0/24, # test-net 3 (RFC 5737)"
        224.0.0.0/4, # private class D (multicast) (RFC 1112)"
}

table ip nat {
        chain nat_prerouting {
                type nat hook prerouting priority 100; policy accept;
        }

        chain nat_postrouting {
                type nat hook postrouting priority 100; policy accept;
                oifname $int_native ip saddr $ipv4_subnet_management ip daddr != $ipv4_subnet_management counter masquerade
        }
}
table inet filter {
        chain raw_prerouting {
                type filter hook prerouting priority 100; policy accept;
                icmpv6 type { nd-router-advert, nd-neighbor-solicit } accept comment "Accept neighbor discovery"
                meta nfproto ipv6 fib saddr . iif oif missing log prefix "RPFILTER_DROP: " drop comment "Strict reverse path filtering (RFC 3704)"
        }

        chain filter_input {
                type filter hook input priority 100; policy accept;
                ct state invalid drop
                meta l4proto ipv6-icmp icmpv6 type echo-request limit rate over 10/second burst 2 packets counter drop comment "Rate-limit ICMP echo-request"
                meta l4proto icmp icmp type echo-request limit rate over 10/second burst 2 packets counter drop comment "Rate-limit ICMP echo-request"
                ct state established,related accept
                iifname "lo" accept
                tcp dport $port_ssh counter accept comment "Accept SSH"
                iifname { $int_native, $int_vpn } ip6 saddr { $ipv6_subnet_native, $ipv6_subnet_management } ip6 daddr $ipv6_subnet_native ct state new jump native
                iifname { $int_native, $int_vpn } ip saddr { $ipv4_subnet_native, $ipv4_subnet_management } ip daddr $ipv4_subnet_native ct state new jump native
                iifname { $int_management, $int_vpn } ip6 saddr $ipv6_subnet_management ip6 daddr $ipv6_subnet_management ct state new jump management
                iifname { $int_management, $int_vpn } ip saddr $ipv4_subnet_management ip daddr $ipv4_subnet_management ct state new jump management
                iifname $int_replication ip6 saddr $ipv6_subnet_replication ip6 daddr $ipv6_subnet_replication ct state new jump replication
                iifname $int_replication ip saddr $ipv4_subnet_replication ip daddr $ipv4_subnet_replication ct state new jump replication
                iifname $int_public ip6 daddr $ipv6_subnet_public ct state new jump public
                iifname $int_public ip daddr $ipv4_subnet_public ct state new jump public
                ip6 daddr fe80::/64 udp dport $port_dhcpv6 ct state new accept comment "Accept DHCPv6"
                meta l4proto { ipv6-icmp, icmp } counter accept comment "Accept ICMP"
                log prefix "INPUT_REJECT: "
                counter reject with icmpx type admin-prohibited
        }

        chain filter_forward {
                type filter hook forward priority 100; policy accept;
                ct state invalid drop
                ct state established,related accept
                iifname "lo" accept
                iifname "tun*" oifname $int_native ip6 saddr $ipv6_subnet_management ct state new counter accept comment "Accept traffic initiated from VPN to access the Internet"
                iifname "tun*" oifname $int_native ip saddr $ipv4_subnet_management ct state new counter accept comment "Accept traffic initiated from VPN to access the Internet"
                ip6 daddr $ipv4_rfc3964 log prefix "6TO4_REJECT: " counter reject with icmpv6 type addr-unreachable comment "Reject 6to4 (RFC 3964)"
                ip daddr $bogon log prefix "BOGON_REJECT: " counter reject with icmp type host-unreachable comment "Reject bogon"
                log prefix "FORWARD_REJECT: "
                counter reject with icmpx type admin-prohibited
        }

        chain filter_output {
                type filter hook output priority 100; policy accept;
                ct state invalid drop
                oifname "lo" accept
                ip6 daddr $ipv4_rfc3964 log prefix "6TO4_REJECT: " counter reject with icmpv6 type addr-unreachable comment "Reject 6to4 (RFC 3964)"
        }

        chain native {
                tcp dport $port_ssh counter accept comment "Accept SSH"
                tcp dport $service_mail counter accept comment "Accept mail service"
                tcp dport $port_dns counter accept comment "Accept DNS"
                udp dport $port_dns counter accept comment "Accept DNS"
                tcp dport $service_web counter accept comment "Accept web service"
        }

        chain management {
                tcp dport $port_ssh counter accept comment "Accept SSH"
                tcp dport $service_web counter accept comment "Accept web service"
                udp dport $service_snmp counter accept comment "Accept SNMP service"
                tcp dport $port_pacemaker counter accept comment "Accept Pacemaker"
        }

        chain replication {
                tcp dport $port_lmtp counter accept comment "Accept LMTP"
                tcp dport $port_sasl counter accept comment "Accept SASL"
                tcp dport $port_mysql counter accept comment "Accept MySQL"
                tcp dport $service_gluster counter accept comment "Accept Gluster"
        }

        chain public {
                tcp dport $service_mail counter accept comment "Accept mail service"
                tcp dport $port_dns counter accept comment "Accept DNS"
                udp dport $port_dns counter accept comment "Accept DNS"
                tcp dport $service_web counter accept comment "Accept web service"
                tcp dport $port_vpn counter accept comment "Accept OpenVPN"
                udp dport $port_vpn counter accept comment "Accept OpenVPN"
        }
}

IPs on rt2:

[user@rt2] > /ipv6 address print
Flags: X - disabled, I - invalid, D - dynamic, G - global, L - link-local
 #    ADDRESS                                     FROM-POOL INTERFACE                                                                                                                                                                                                   ADVERTISE
 0  G 2001:1234:abcd:10::ffff/64                             br0                                                                                                                                                                                                         no
 1  G 2001:1234:abcd:12::ffff/64                             replication                                                                                                                                                                                                 no
 2  G 2001:1234:abcd:13::ffff/64                             public                                                                                                                                                                                                      no
 3 DL fe80::ce2d:e0ff:fe81:abe/64                           replication                                                                                                                                                                                                 no
 4 DL fe80::ce2d:e0ff:fe81:abe/64                           br0                                                                                                                                                                                                         no
 5 DL fe80::ce2d:e0ff:fe81:abe/64                           management                                                                                                                                                                                                  no
 6 DL fe80::ce2d:e0ff:fe81:abe/64                           public                                                                                                                                                                                                      no
 7  G 2001:1234:abcd:11::ffff/64                             management                                                                                                                                                                                                  no

rt2 configuration:

[user@rt2] > /export hide-sensitive
# dec/30/2020 12:20:30 by RouterOS 6.48
# software id = A1GI-TFVF
#
# model = 960PGS
# serial number = 89F90861A06A
/interface bridge
add admin-mac=CC:2D:E0:81:0A:BE auto-mac=no dhcp-snooping=yes ingress-filtering=yes name=br0 protocol-mode=mstp pvid=10 vlan-filtering=yes
/interface ethernet
set [ find default-name=ether2 ] poe-out=forced-on
set [ find default-name=ether3 ] poe-out=forced-on
set [ find default-name=ether4 ] poe-out=forced-on
set [ find default-name=ether5 ] poe-out=forced-on
set [ find default-name=sfp1 ] disabled=yes
/interface vlan
add interface=br0 name=management vlan-id=11
add interface=br0 name=public vlan-id=13
add interface=br0 name=replication vlan-id=12
/interface ethernet switch
set 0 name=sw1
/interface list
add comment=defconf name=WAN
add comment=defconf name=LAN
add name=external
add name=internal
/ip pool
add name=default-dhcp ranges=192.168.88.10-192.168.88.254
/interface bridge port
add bpdu-guard=yes bridge=br0 comment=rp1 edge=yes-discover hw=no ingress-filtering=yes interface=ether2 pvid=10
add bpdu-guard=yes bridge=br0 comment=rp2 edge=yes-discover hw=no ingress-filtering=yes interface=ether3 pvid=10
add bpdu-guard=yes bridge=br0 comment=rp3 edge=yes-discover hw=no ingress-filtering=yes interface=ether4 pvid=10
add bpdu-guard=yes bridge=br0 comment=rp4 edge=yes-discover hw=no ingress-filtering=yes interface=ether5 pvid=10
add bridge=br0 comment=rt1 frame-types=admit-only-untagged-and-priority-tagged hw=no ingress-filtering=yes interface=ether1 pvid=10 trusted=yes
/interface bridge settings
set use-ip-firewall=yes use-ip-firewall-for-vlan=yes
/ip neighbor discovery-settings
set discover-interface-list=none
/ip settings
set rp-filter=strict
/ipv6 settings
set accept-router-advertisements=yes
/interface bridge vlan
add bridge=br0 comment=native untagged=ether1,ether2,ether3,ether4,ether5 vlan-ids=10
add bridge=br0 comment=management tagged=br0,ether2,ether3,ether4,ether5 vlan-ids=11
add bridge=br0 comment=replication tagged=ether2,ether3,ether4,ether5 vlan-ids=12
add bridge=br0 comment=public tagged=ether2,ether3,ether4,ether5,br0 vlan-ids=13
/interface list member
add comment=defconf interface=br0 list=LAN
add comment=defconf interface=ether1 list=WAN
add interface=ether1 list=external
add interface=ether2 list=internal
add interface=ether3 list=internal
add interface=ether4 list=internal
add interface=ether5 list=internal
/ip address
add address=172.27.11.99/24 interface=management network=172.27.11.0
add address=172.27.12.1/24 interface=replication network=172.27.12.0
add address=172.27.13.1/24 interface=public network=172.27.13.0
/ip dhcp-client
add comment=defconf disabled=no interface=br0
/ip firewall address-list
add address=172.27.10.0/24 list=native
add address=172.27.11.0/24 list=management
add address=172.27.12.0/24 list=replication
add address=172.27.13.0/24 list=public
add address=0.0.0.0/8 comment="self-identification (RFC 3330)" list=bogon
add address=10.0.0.0/8 comment="private class A (RFC 1918)" list=bogon
add address=127.0.0.0/8 comment="loopback (RFC 3330)" list=bogon
add address=172.16.0.0/12 comment="private class B (RFC 1918)" disabled=yes list=bogon
add address=169.254.0.0/16 comment="link-local (RFC 3330)" disabled=yes list=bogon
add address=192.168.0.0/16 comment="private class C (RFC 1918)" list=bogon
add address=192.0.2.0/24 comment="test-net 1 (RFC 5737)" list=bogon
add address=192.88.99.0/24 comment="6to4 relay anycast (RFC 3068)" list=bogon
add address=198.18.0.0/15 comment="BMWG testing (RFC 6815)" list=bogon
add address=198.51.100.0/24 comment="test-net 2 (RFC 5737)" list=bogon
add address=203.0.113.0/24 comment="test-net 3 (RFC 5737)" list=bogon
add address=224.0.0.0/4 comment="private class D (multicast) (RFC 1112)" list=bogon
/ip firewall filter
add action=drop chain=forward comment="drop invalid" connection-state=invalid log=yes log-prefix=invalid
add action=accept chain=forward comment="accept established, related, untracked (external -> internal)" connection-state=established,related,untracked
add action=accept chain=forward comment="accept new (internal -> external)" connection-state=new dst-address-list=!bogon in-bridge-port-list=internal out-bridge-port-list=external
add action=accept chain=input comment="accept ssh (native) (remove later)" connection-state=new dst-address-list=native dst-port=22,900,4443 in-interface=br0 protocol=tcp
add action=accept chain=input comment="accept ssh (management) (remove later)" connection-state=new dst-address-list=management dst-port=22,900,4443 in-interface=management protocol=tcp
add action=accept chain=forward comment="accept ssh (forward) (remove later)" connection-state=new dst-port=22,900,4443 protocol=tcp
add action=jump chain=forward comment="jump to native rules" connection-state=new in-bridge-port-list=internal jump-target=native out-bridge-port-list=internal src-address-list=native
add action=jump chain=forward comment="jump to management rules" connection-state=new dst-address-list=management in-bridge-port-list=internal jump-target=management out-bridge-port-list=internal src-address-list=management
add action=jump chain=forward comment="jump to replication rules" connection-state=new dst-address-list=replication in-bridge-port-list=internal jump-target=replication out-bridge-port-list=internal src-address-list=replication
add action=jump chain=forward comment="jump to public rules" connection-state=new dst-address-list=public in-bridge-port-list=external jump-target=public out-bridge-port-list=internal
add action=accept chain=forward comment="accept dns (external -> internal)" connection-state=new dst-port=1024-65535 in-bridge-port-list=external out-bridge-port-list=internal protocol=udp src-port=53
add action=accept chain=forward comment="accept dhcp (external -> internal)" connection-state=new dst-port=68 in-bridge-port-list=external out-bridge-port-list=internal protocol=udp src-port=67
add action=accept chain=forward comment="accept vpn" dst-port=1194 protocol=tcp
add action=accept chain=forward comment="accept vpn" dst-port=1194 protocol=udp
add action=accept chain=native comment="accept ssh (remove later)" dst-port=22,900,4443 protocol=tcp
add action=accept chain=native comment="accept pacemaker (remove later)" dst-port=2224 protocol=tcp
add action=accept chain=native comment="accept mail relay, submission, imaps" dst-port=25,587,993 protocol=tcp
add action=accept chain=native comment="accept dns" dst-port=53,853 protocol=tcp
add action=accept chain=native comment="accept dns" dst-port=53,853 protocol=udp
add action=accept chain=native comment="accept http, https" dst-port=80,443 protocol=tcp
add action=accept chain=management comment="accept ssh" dst-port=22,900,4443 protocol=tcp
add action=accept chain=management comment="accept http, https" dst-port=80,443 protocol=tcp
add action=accept chain=management comment="accept snmp, snmp trap" dst-port=161,162 protocol=udp
add action=accept chain=management comment="accept pacemaker" dst-port=2224 protocol=tcp
add action=accept chain=replication comment="accept lmtp" dst-port=24 protocol=tcp
add action=accept chain=replication comment="accept sasl" dst-port=2222 protocol=tcp
add action=accept chain=replication comment="accept mysql" dst-port=3308 protocol=tcp
add action=accept chain=replication comment="accept gluster" dst-port=24007-24009,49152-49155 protocol=tcp
add action=accept chain=public comment="accept mail relay, submission, imaps" dst-port=25,587,993 protocol=tcp
add action=accept chain=public comment="accept dns" dst-port=53 protocol=tcp
add action=accept chain=public comment="accept dns" dst-port=53 protocol=udp
add action=accept chain=public comment="accept http, https" dst-port=80,443 protocol=tcp
add action=accept chain=forward comment="accept icmp" protocol=icmp
add action=accept chain=forward comment="accept broadcast" dst-address-type=broadcast
add action=accept chain=forward comment="accept multicast" dst-address-type=multicast
add action=drop chain=input comment="drop invalid" connection-state=invalid log=yes log-prefix=invalid
add action=accept chain=input comment="accept established, related, untracked" connection-state=established,related,untracked
add action=accept chain=input comment="accept to local loopback (for capsman)" dst-address=127.0.0.1
add action=accept chain=input comment="accept icmp" protocol=icmp
add action=accept chain=input comment="accept broadcast" dst-address-type=broadcast
add action=accept chain=input comment="accept multicast" dst-address-type=multicast
add action=reject chain=input log=yes reject-with=icmp-admin-prohibited
add action=reject chain=forward log=yes reject-with=icmp-admin-prohibited
add action=drop chain=output connection-state=invalid log=yes log-prefix=invalid
add action=accept chain=output
/ip service
set telnet disabled=yes
set ftp disabled=yes
set www disabled=yes
set ssh port=900
set api disabled=yes
set winbox disabled=yes
set api-ssl disabled=yes
/ip ssh
set strong-crypto=yes
/ipv6 address
add address=2001:1234:abcd:10::ffff advertise=no interface=br0
add address=2001:1234:abcd:12::ffff advertise=no interface=replication
add address=2001:1234:abcd:13::ffff advertise=no interface=public
add address=2001:1234:abcd:11::ffff advertise=no interface=management
/ipv6 firewall address-list
add address=::/96 comment="IPv4 compatible" list=ipv4_rfc3964
add address=::ffff:0.0.0.0/96 comment="IPv4 mapped" list=ipv4_rfc3964
add address=2002::/24 comment="0.0.0.0/8 (the system has no address assigned yet)" list=ipv4_rfc3964
add address=2002:a00::/24 comment="10.0.0.0/8 (private class A (RFC 1918))" list=ipv4_rfc3964
add address=2002:7f00::/24 comment="127.0.0.0/8 (loopback)" list=ipv4_rfc3964
add address=2002:ac10::/28 comment="172.16.0.0/12 (private class B (RFC 1918))" list=ipv4_rfc3964
add address=2002:c0a8::/32 comment="192.168.0.0/16 (private class C (RFC 1918))" list=ipv4_rfc3964
add address=2002:a9fe::/32 comment="169.254.0.0/16 (IANA Assigned DHCP link-local)" list=ipv4_rfc3964
add address=2002:e000::/19 comment="224.0.0.0/4 (multicast), 240.0.0.0/4 (reserved and broadcast)" list=ipv4_rfc3964
add address=2001:1234:abcd:10::/64 list=native
add address=2001:1234:abcd:11::/64 list=management
add address=2001:1234:abcd:12::/64 list=replication
add address=2001:1234:abcd:13::/64 list=public
/ipv6 firewall filter
add action=drop chain=forward comment="drop invalid" connection-state=invalid log=yes log-prefix=invalid
add action=accept chain=forward comment="accept established, related, untracked (external -> internal)" connection-state=established,related,untracked
add action=accept chain=forward comment="accept new (internal -> external)" connection-state=new dst-address-list=!ipv4_rfc3964 in-bridge-port-list=internal out-bridge-port-list=external
add action=accept chain=input comment="accept ssh (native) (remove later)" connection-state=new dst-address-list=native dst-port=22,900,4443 in-interface=br0 protocol=tcp
add action=accept chain=input comment="accept ssh (management) (remove later)" connection-state=new dst-address-list=management dst-port=22,900,4443 in-interface=management protocol=tcp
add action=jump chain=forward comment="jump to native rules" connection-state=new dst-address-list=native in-bridge-port-list=internal jump-target=native out-bridge-port-list=internal src-address-list=native
add action=jump chain=forward comment="jump to management rules" connection-state=new dst-address-list=management in-bridge-port-list=internal jump-target=management out-bridge-port-list=internal src-address-list=management
add action=jump chain=forward comment="jump to replication rules" connection-state=new dst-address-list=replication in-bridge-port-list=internal jump-target=replication out-bridge-port-list=internal src-address-list=replication
add action=jump chain=forward comment="jump to public rules" connection-state=new dst-address-list=public in-bridge-port-list=external jump-target=public out-bridge-port-list=internal
add action=accept chain=forward comment="accept dns (external -> internal)" connection-state=new dst-port=1024-65535 in-bridge-port-list=external out-bridge-port-list=internal protocol=udp src-port=53
add action=accept chain=forward comment="accept dhcp (external -> internal)" connection-state=new dst-port=68 in-bridge-port-list=external out-bridge-port-list=internal protocol=udp src-port=67
add action=accept chain=forward comment="accept vpn" dst-port=1194 protocol=tcp
add action=accept chain=forward comment="accept vpn" dst-port=1194 protocol=udp
add action=accept chain=native comment="accept ssh (remove later)" dst-port=22,900,4443 protocol=tcp
add action=accept chain=native comment="accept pacemaker (remove later)" dst-port=2224 protocol=tcp
add action=accept chain=native comment="accept mail relay, submission, imaps" dst-port=25,587,993 protocol=tcp
add action=accept chain=native comment="accept dns" dst-port=53,853 protocol=tcp
add action=accept chain=native comment="accept dns" dst-port=53,853 protocol=udp
add action=accept chain=native comment="accept http, https" dst-port=80,443 protocol=tcp
add action=accept chain=management comment="accept ssh" dst-port=22,900,4443 protocol=tcp
add action=accept chain=management comment="accept http, https" dst-port=80,443 protocol=tcp
add action=accept chain=management comment="accept snmp, snmp trap" dst-port=161,162 protocol=udp
add action=accept chain=management comment="accept pacemaker" dst-port=2224 protocol=tcp
add action=accept chain=replication comment="accept lmtp" dst-port=24 protocol=tcp
add action=accept chain=replication comment="accept sasl" dst-port=2222 protocol=tcp
add action=accept chain=replication comment="accept mysql" dst-port=3308 protocol=tcp
add action=accept chain=replication comment="accept gluster" dst-port=24007-24009,49152-49155 protocol=tcp
add action=accept chain=public comment="accept mail relay, submission, imaps" dst-port=25,587,993 protocol=tcp
add action=accept chain=public comment="accept dns" dst-port=53 protocol=tcp
add action=accept chain=public comment="accept dns" dst-port=53 protocol=udp
add action=accept chain=public comment="accept http, https" dst-port=80,443 protocol=tcp
add action=accept chain=forward comment="accept icmpv6" protocol=icmpv6
add action=accept chain=forward comment="accept multicast" dst-address-type=multicast
add action=drop chain=input comment="drop invalid" connection-state=invalid log=yes log-prefix=invalid
add action=accept chain=input comment="accept established, related, untracked" connection-state=established,related,untracked
add action=accept chain=input comment="accept to local loopback (for capsman)" dst-address=::1/128
add action=accept chain=input comment="accept icmpv6" protocol=icmpv6
add action=accept chain=input comment="accept multicast" dst-address-type=multicast
add action=reject chain=input log=yes reject-with=icmp-admin-prohibited
add action=reject chain=forward log=yes reject-with=icmp-admin-prohibited
add action=drop chain=output connection-state=invalid log=yes log-prefix=invalid
add action=accept chain=output
/system clock
set time-zone-name=Europe/Amsterdam
/system identity
set name=rt2
/system note
set note="UNAUTHORIZED ACCESS TO THIS NETWORK IS PROHIBITED"
/system ntp client
set enabled=yes primary-ntp=172.27.10.2 secondary-ntp=172.27.10.3
/tool bandwidth-server
set enabled=no
/tool mac-server
set allowed-interface-list=none
/tool mac-server mac-winbox
set allowed-interface-list=none
/tool mac-server ping
set enabled=no

Firewall logs on Mikrotik when OpenVPN client is connected:

12:51:10 firewall,info invalid forward: in:br0(ether1) out:management, src-mac 7c:ff:4d:57:a1:f3, proto TCP (SYN,ACK), [2001:888:2000:9a:face:b00c:0:a7]:443->[2001:985:ba48:11::7]:47360, len 40
12:51:11 firewall,info invalid forward: in:br0(ether1) out:management, src-mac 7c:ff:4d:57:a1:f3, proto TCP (SYN,ACK), [2a03:2880:f045:12:face:b00c:0:2]:443->[2001:985:ba48:11::7]:44618, len 40
12:51:11 firewall,info invalid forward: in:br0(ether1) out:management, src-mac 7c:ff:4d:57:a1:f3, proto TCP (SYN,ACK), [2a03:2880:f006:21:face:b00c:0:3]:443->[2001:985:ba48:11::7]:40680, len 40
2

When I assign the OpenVPN client a 2001:1234:abcd:13::7 address, the invalid forward lines are not showing up anymore. So that problem must be a (asymmetrical?) routing issue. However, my OpenVPN client still can’t connect to public IPv6 addresses outside of my own network. Perhaps that’s because of a 2000::/3 route missing on rt2? But after adding that route, nothing changed. ether1 is the interface which interconnects rt1 and rt2. What could be missing here?

[user@rt2] > /ipv6 route print
Flags: X - disabled, A - active, D - dynamic, C - connect, S - static, r - rip, o - ospf, b - bgp, U - unreachable
 #      DST-ADDRESS              GATEWAY                  DISTANCE
 0   S  2000::/3                 ether1                          1
3

Router rt2 is definitely missing a few static routes (but as well do check other routers - rt1 and rp1).

4

Could you please provide some more details?

5

Rp2 has a few IP addresses set to different VLAN interfaces. Implicitly thus it knows a few directly connected networks but doesn’t know anything about IPv6 networks beyond that. E.g. it would need default route (probably via rt1). And not sure if rp1 is transparent for traffic between rt2 and VPN client? If not, it would need a route via gateway.

The whole IPv6 subnet setup is not really clear to me nor exact role of rt2 in the whole setup so I can’t really give you a concrete advice. But definitely think of subnet boundaries (traffic passing any device over multiple IPv6 interfaces should be routed and for that routes with gateway are necessary).
