Hi,
we are planning hardware upgrade of the core router RB1100 to CCR1009.

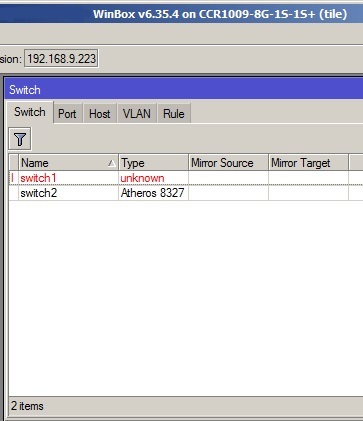

I take the backup file from RB1100 and did a restore on CCR1009, and it went ok, but I got invalid switch on CCR. I know the reason…RB1100 got two switch chip and CCR1009 just one, but how to remove the one that is invalid?

Thanks
mIRO

2

You cannot use backup on different device or different ros version. Reset the router to blank config and import exported configuration script instead. Don’t forget to modify it according to the type differences.
