Hi,
I am using RB750 for my lease line router with 192.168.1.1/24
I want to create internet access list for only IP Range 192.168.1.1-19
Please Help!
There are tons of ways to do that depending on your config… you could set your masq rule to only allow from specific computers… you could setup a forward rule to drop from specific computers, etc… Without seeing what your config is its hard to tell you what to do. Post your config.

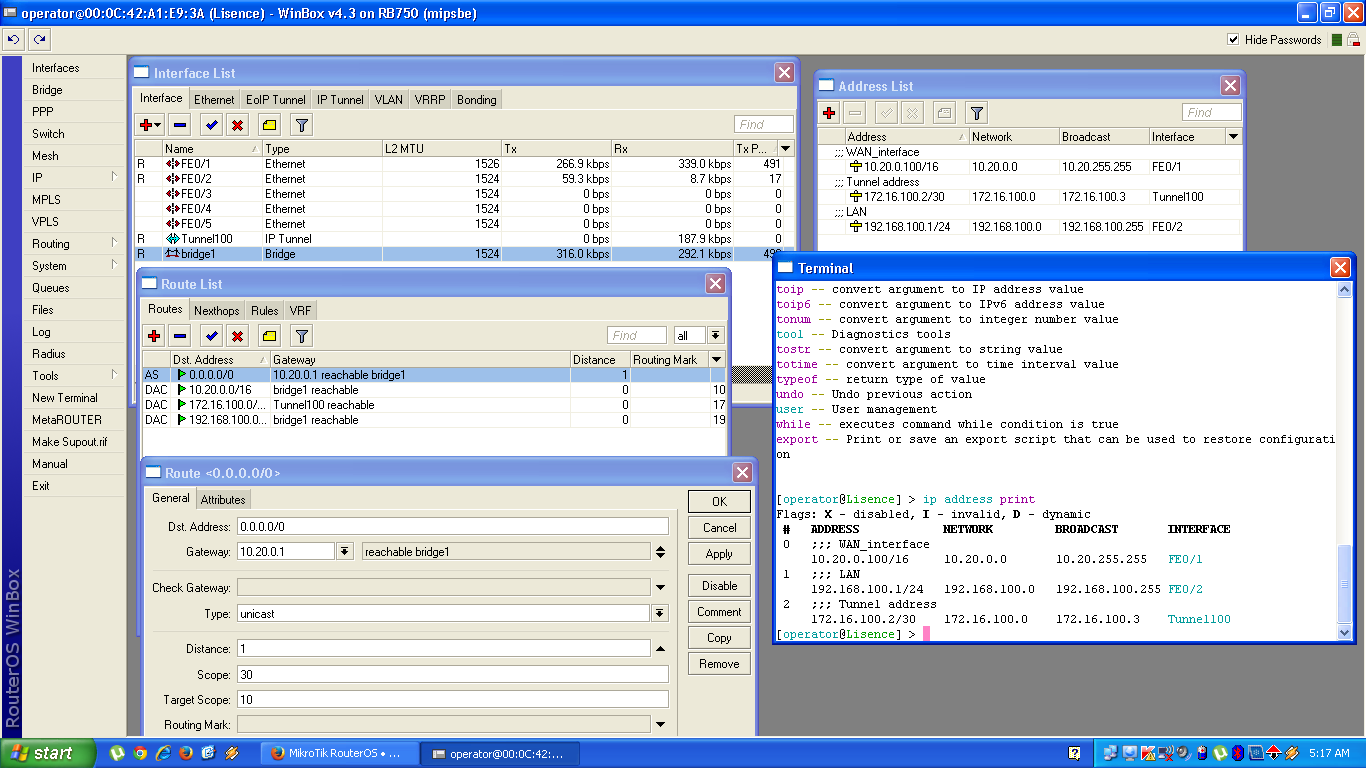

Please see below my config, did not use firewall and mangle…
Post the export instead of a screenshot. I’ll look when I get home
Sent from my SCH-I545 using Tapatalk
[operator@Lisence] > export
jan/02/1970 05:33:16 by RouterOS 4.3
software id = 1VP0-Z0NV
/interface bridge
add admin-mac=00:00:00:00:00:00 ageing-time=5m arp=enabled auto-mac=yes
comment=“” disabled=no forward-delay=15s l2mtu=1524 max-message-age=20s
mtu=1500 name=bridge1 priority=0x8000 protocol-mode=none
transmit-hold-count=6
/interface ethernet
set 0 arp=enabled auto-negotiation=yes comment=“” disabled=no full-duplex=yes
l2mtu=1526 mac-address=00:0C:42:A1:E9:3A mtu=1500 name=FE0/1 speed=
100Mbps
set 1 arp=enabled auto-negotiation=yes bandwidth=unlimited/unlimited comment=
“” disabled=no full-duplex=yes l2mtu=1524 mac-address=00:0C:42:A1:E9:3B
master-port=none mtu=1500 name=FE0/2 speed=100Mbps
set 2 arp=enabled auto-negotiation=yes bandwidth=unlimited/unlimited comment=
“” disabled=no full-duplex=yes l2mtu=1524 mac-address=00:0C:42:A1:E9:3C
master-port=none mtu=1500 name=FE0/3 speed=100Mbps
set 3 arp=enabled auto-negotiation=yes bandwidth=unlimited/unlimited comment=
“” disabled=no full-duplex=yes l2mtu=1524 mac-address=00:0C:42:A1:E9:3D
master-port=none mtu=1500 name=FE0/4 speed=100Mbps
set 4 arp=enabled auto-negotiation=yes bandwidth=unlimited/unlimited comment=
“” disabled=no full-duplex=yes l2mtu=1524 mac-address=00:0C:42:A1:E9:3E
master-port=none mtu=1500 name=FE0/5 speed=100Mbps
/interface ipip
add comment=“” disabled=no local-address=10.20.0.100 mtu=1514 name=Tunnel100
remote-address=10.20.0.1
/interface ethernet switch
set switch1 mirror-source=none mirror-target=none name=switch1
/ip ipsec proposal
set default auth-algorithms=sha1 comment=“” disabled=no enc-algorithms=3des
lifetime=30m name=default pfs-group=modp1024
/ppp profile
set default change-tcp-mss=yes comment=“” name=default only-one=default
use-compression=default use-encryption=default use-vj-compression=default
set default-encryption change-tcp-mss=yes comment=“” name=default-encryption
only-one=default use-compression=default use-encryption=yes
use-vj-compression=default
/queue type
set default kind=pfifo name=default pfifo-limit=50
set ethernet-default kind=pfifo name=ethernet-default pfifo-limit=50
set wireless-default kind=sfq name=wireless-default sfq-allot=1514
sfq-perturb=5
set synchronous-default kind=red name=synchronous-default red-avg-packet=1000
red-burst=20 red-limit=60 red-max-threshold=50 red-min-threshold=10
set hotspot-default kind=sfq name=hotspot-default sfq-allot=1514 sfq-perturb=
5
set default-small kind=pfifo name=default-small pfifo-limit=10
/routing bgp instance
set default as=65530 client-to-client-reflection=yes comment=“” disabled=no
ignore-as-path-len=no name=default out-filter=“” redistribute-connected=
no redistribute-ospf=no redistribute-other-bgp=no redistribute-rip=no
redistribute-static=no router-id=0.0.0.0 routing-table=“”
/routing ospf instance
set default comment=“” disabled=no distribute-default=never in-filter=ospf-in
metric-bgp=auto metric-connected=20 metric-default=1 metric-other-ospf=
auto metric-rip=20 metric-static=20 name=default out-filter=ospf-out
redistribute-bgp=no redistribute-connected=no redistribute-other-ospf=no
redistribute-rip=no redistribute-static=no router-id=0.0.0.0
/routing ospf area
set backbone area-id=0.0.0.0 comment=“” disabled=no instance=default name=
backbone type=default
/snmp
set contact=“” enabled=no engine-boots=0 engine-id=“” location=“”
time-window=15 trap-sink=0.0.0.0 trap-version=1
/snmp community
set public address=0.0.0.0/0 authentication-password=“”
authentication-protocol=MD5 encryption-password=“” encryption-protocol=
DES name=public read-access=yes security=none write-access=no
/system logging action
set memory memory-lines=100 memory-stop-on-full=no name=memory target=memory
set disk disk-file-count=2 disk-file-name=log disk-lines-per-file=100
disk-stop-on-full=no name=disk target=disk
set echo name=echo remember=yes target=echo
set remote bsd-syslog=no name=remote remote=0.0.0.0:514 src-address=0.0.0.0
syslog-facility=daemon syslog-severity=auto target=remote
/system routerboard settings
set boot-protocol=bootp cpu-frequency=400MHz force-backup-booter=no
set boot-protocol=bootp cpu-frequency=400MHz force-backup-booter=no
/user group
add comment=“” name=read policy=“local,telnet,ssh,reboot,read,test,winbox,pass
word,web,sniff,sensitive,!ftp,!write,!policy”
add comment=“” name=write policy=“local,telnet,ssh,reboot,read,write,test,winb
ox,password,web,sniff,sensitive,!ftp,!policy”
add comment=“” name=full policy=“local,telnet,ssh,ftp,reboot,read,write,policy
,test,winbox,password,web,sniff,sensitive”
/interface bridge port
add bridge=bridge1 comment=“” disabled=no edge=auto external-fdb=auto
horizon=none interface=FE0/1 path-cost=10 point-to-point=auto priority=
0x80
add bridge=bridge1 comment=“” disabled=no edge=auto external-fdb=auto
horizon=none interface=FE0/2 path-cost=10 point-to-point=auto priority=
0x80
/interface bridge settings
set use-ip-firewall=no use-ip-firewall-for-pppoe=no use-ip-firewall-for-vlan=
no
/interface ethernet switch port
set (unknown) vlan-mode=fallback
set (unknown) vlan-mode=fallback
set (unknown) vlan-mode=fallback
set (unknown) vlan-mode=fallback
/interface l2tp-server server
set authentication=pap,chap,mschap1,mschap2 default-profile=
default-encryption enabled=no max-mru=1460 max-mtu=1460 mrru=disabled
/interface ovpn-server server
set auth=sha1,md5 certificate=none cipher=blowfish128,aes128 default-profile=
default enabled=no keepalive-timeout=60 mac-address=FE:FD:37:AF:CD:AE
max-mtu=1500 mode=ip netmask=24 port=1194 require-client-certificate=no
/interface pptp-server server
set authentication=mschap1,mschap2 default-profile=default-encryption
enabled=no keepalive-timeout=30 max-mru=1460 max-mtu=1460 mrru=disabled
/ip accounting
set account-local-traffic=no enabled=no threshold=256
/ip accounting web-access
set accessible-via-web=no address=0.0.0.0/0
/ip address
add address=10.20.0.100/16 broadcast=10.20.255.255 comment=WAN_interface
disabled=no interface=FE0/1 network=10.20.0.0
add address=192.168.100.1/24 broadcast=192.168.100.255 comment=LAN disabled=
no interface=FE0/2 network=192.168.100.0
add address=172.16.100.2/30 broadcast=172.16.100.3 comment=“Tunnel address”
disabled=no interface=Tunnel100 network=172.16.100.0
/ip dhcp-server config
set store-leases-disk=5m
/ip dns
set allow-remote-requests=no cache-max-ttl=1w cache-size=2048KiB
max-udp-packet-size=512 primary-dns=0.0.0.0 secondary-dns=0.0.0.0
/ip firewall address-list
add address=192.168.100.0/24 comment=“” disabled=no list=drop_traffic
add address=192.168.0.0/24 comment=“” disabled=no list=drop_traffic
/ip firewall connection tracking
set enabled=yes generic-timeout=10m icmp-timeout=10s tcp-close-timeout=10s
tcp-close-wait-timeout=10s tcp-established-timeout=1d
tcp-fin-wait-timeout=10s tcp-last-ack-timeout=10s
tcp-syn-received-timeout=5s tcp-syn-sent-timeout=5s tcp-syncookie=no
tcp-time-wait-timeout=10s udp-stream-timeout=3m udp-timeout=10s
/ip firewall service-port
set ftp disabled=no ports=21
set tftp disabled=no ports=69
set irc disabled=no ports=6667
set h323 disabled=no
set sip disabled=no ports=5060,5061
set pptp disabled=no
/ip neighbor discovery
set FE0/1 discover=yes
set FE0/2 discover=yes
set FE0/3 discover=yes
set FE0/4 discover=yes
set FE0/5 discover=yes
set Tunnel100 discover=no
set bridge1 discover=yes
/ip proxy
set always-from-cache=no cache-administrator=webmaster cache-hit-dscp=4
cache-on-disk=no enabled=no max-cache-size=none max-client-connections=
600 max-fresh-time=3d max-server-connections=600 parent-proxy=0.0.0.0
parent-proxy-port=0 port=8080 serialize-connections=no src-address=
0.0.0.0
/ip route
add comment=“” disabled=no distance=1 dst-address=0.0.0.0/0 gateway=10.20.0.1
scope=30 target-scope=10
/ip service
set telnet address=0.0.0.0/0 disabled=no port=23
set ftp address=0.0.0.0/0 disabled=no port=21
set www address=0.0.0.0/0 disabled=no port=80
set ssh address=0.0.0.0/0 disabled=yes port=22
set www-ssl address=0.0.0.0/0 certificate=none disabled=yes port=443
set api address=0.0.0.0/0 disabled=yes port=8728
set winbox address=0.0.0.0/0 disabled=no port=8291
/ip socks
set connection-idle-timeout=2m enabled=no max-connections=200 port=1080
/ip traffic-flow
set active-flow-timeout=30m cache-entries=4k enabled=no
inactive-flow-timeout=15s interfaces=all
/ip upnp
set allow-disable-external-interface=yes enabled=no show-dummy-rule=yes
/mpls
set dynamic-label-range=16-1048575 propagate-ttl=yes
/mpls interface
add comment=“” disabled=no interface=all mpls-mtu=1508
/mpls ldp
set distribute-for-default-route=no enabled=no hop-limit=255 loop-detect=no
lsr-id=0.0.0.0 path-vector-limit=255 transport-address=0.0.0.0
use-explicit-null=no
/ppp aaa
set accounting=yes interim-update=0s use-radius=no
/queue interface
set FE0/1 queue=ethernet-default
set FE0/2 queue=ethernet-default
set FE0/3 queue=ethernet-default
set FE0/4 queue=ethernet-default
set FE0/5 queue=ethernet-default
set Tunnel100 queue=default
set bridge1 queue=default
/radius incoming
set accept=no port=3799
/routing mme
set bidirectional-timeout=2 gateway-class=none gateway-keepalive=1m
gateway-selection=no-gateway origination-interval=5s preferred-gateway=
0.0.0.0 timeout=1m ttl=50
/routing rip
set distribute-default=never garbage-timer=2m metric-bgp=1 metric-connected=1
metric-default=1 metric-ospf=1 metric-static=1 redistribute-bgp=no
redistribute-connected=no redistribute-ospf=no redistribute-static=no
routing-table=main timeout-timer=3m update-timer=30s
/store
add comment=“” disabled=no disk=system name=web-proxy1 type=web-proxy
/system clock
set time-zone-name=Asia/Kolkata
/system clock manual
set dst-delta=+00:00 dst-end=“jan/01/1970 00:00:00” dst-start=
“jan/01/1970 00:00:00” time-zone=+00:00
/system console
add disabled=no term=vt102
/system health
set
/system identity
set name=Lisence
/system logging
add action=memory disabled=no prefix=“” topics=info
add action=memory disabled=no prefix=“” topics=error
add action=memory disabled=no prefix=“” topics=warning
add action=echo disabled=no prefix=“” topics=critical
/system note
set note=“” show-at-login=yes
/system ntp client
set enabled=no mode=broadcast primary-ntp=0.0.0.0 secondary-ntp=0.0.0.0
/system upgrade mirror
set check-interval=1d enabled=no primary-server=0.0.0.0 secondary-server=
0.0.0.0 user=“”
/system watchdog
set auto-send-supout=no automatic-supout=yes no-ping-delay=5m watch-address=
none watchdog-timer=yes
/tool bandwidth-server
set allocate-udp-ports-from=2000 authenticate=yes enabled=yes max-sessions=
100
/tool e-mail
set from=<> password=“” server=0.0.0.0:25 username=“”
/tool graphing
set page-refresh=300 store-every=5min
/tool graphing interface
add allow-address=0.0.0.0/0 disabled=no interface=all store-on-disk=no
/tool mac-server
add disabled=no interface=all
/tool mac-server ping
set enabled=yes
/tool sms
set allowed-number=“” channel=0 keep-max-sms=0 receive-enabled=no secret=“”
/tool sniffer
set file-limit=10 file-name=“” filter-address1=0.0.0.0/0:0-65535
filter-address2=0.0.0.0/0:0-65535 filter-protocol=ip-only filter-stream=
yes interface=all memory-limit=10 memory-scroll=no only-headers=no
streaming-enabled=no streaming-server=0.0.0.0
/user aaa
set accounting=yes default-group=read interim-update=0s use-radius=no
[operator@Lisence] > print
Does your configuration work? I’m not sure how you have any Internet access with that configuration since there is no nat and those are private IP’s.
Sent from my SCH-I545 using Tapatalk
yes working fine…
I want to allow 192.168.100.1-20/24 only to access internet and the rest not to.
I there anyway to block the rest LAN IPs not to have access internet
