IP and route configuration for /28

RouterOS General
1

Good day everyone!

I’m sorry if this question is an obvious one but I’m a little bit confused on how to configure my router (CCR2004-16G-2S+) with a /28.

I have been given this information by my ISP:
(of course I changed some information not to share my actual IPs)

IP: 180.2.220.48/28
Useable IP: 180.2.220.50 to 180.2.220.62
Gateway: 180.2.220.49
Mask: 255.255.255.240
DNS：202.96.134.100/202.96.134.101

I have a single ethernet cable coming from what they call their NTU as I want to route all traffic to/from my servers through my router.

I wanted to assigned the IP 180.2.220.50 to my router and the rest of the IPs to machines connected to my router.

I first assigned the IP 180.2.220.50/32 with network 180.2.220.49 to my interface connected to their NTU.

I then created a bridge (called “WAN”) with IP address 180.2.220.48/28 (network 180.2.220.48).
That bridge includes all my ethernet ports for my servers as well as the interface connected to their NTU (with IP 180.2.220.50).

I then configured every connected machine to my router using either DHCP or manual configuration within the 180.2.220.51-180.2.220.62 range.
For my servers, I used this default route 0.0.0.0/0 with gateway 180.2.220.50.

It works but I have the feeling it’s not properly configured as some response time are very high.

Routes that are dynamically generated on my router look like this:
0.0.0.0/0 with gateway 180.2.220.49 (manually entered)
180.2.220.48/28 with gateway %WAN
180.2.220.49/28 with gateway %WAN

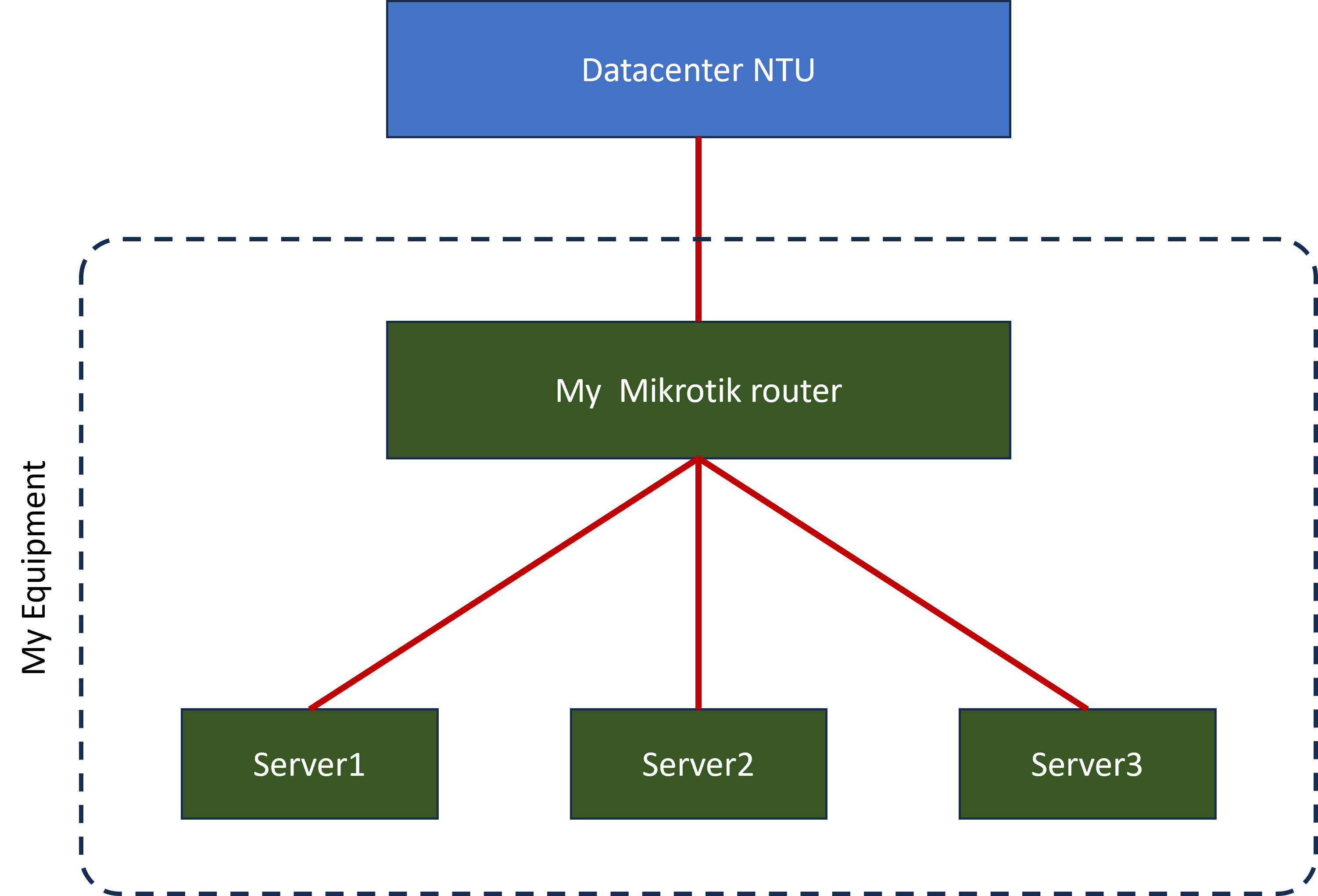

I made a small drawing to explain the physical connection.
Could anyone give me some feedback if I’m doing anything wrong?
Should I use one of my IPs (180.2.220.51-180.2.220.62 range) for the bridge or using 180.2.220.48/28 is appropriate?

This is a small drawing of my physical setup.
Thank you!

2

The standard way to set this up would be to assign 180.2.220.50/28 to your WAN bridge with a default route to 180.2.220.49. The servers would be assigned addresses of 180.2.220.51/28 (likewise .52, .53, etc. for additional servers) again with a default route to 180.2.220.49.

If you wish to firewall or rate-limit traffic this is one of the cases where /interface bridge settings use-ip-firewall=yes should be used.

3

from the Mikrotik router you can rotate the other IPs towards the servers, take a look at this discussion
http://forum.mikrotik.com/t/pool-public-29/154811/1

4

The way the datacentre is setup, you don’t need the router.

Set the Mikrotik up as a transparent firewall.

It would make more sense, especially for a datacentre to route the /28 to a single IP assigned to your router.

5

You need to clarify the basic ideas…

If the servers must each have their own PUBLIC IP, without increasing latency, you would have done better by putting a switch there and configuring each machine with its own IP 180.2.220.[50..62], subnet /28 (255.255.255.240) gateway 180.2.220.49, etc.

If the MikroTik device is to act as a firewall, with the same configuration specified in the previous point also for router, you must create the necessary firewalling rules.

I don’t seem to see the need for the device to act as a ROUTER/NAT…

6

@tdw This is what I ended up doing. Thank you!

I’m still struggling to have the firewall working. I did change /interface bridge settings use-ip-firewall=yes but the traffic is not filtered by the Firewall. I’m continuing to investigate!

7

Thank you! How would you do that? Can you point me to some documentation?
Now using tdw comment and some external help, everything is working quite nicely…

8

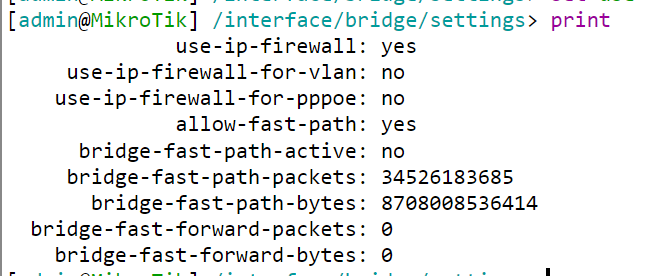

Should I change allow-fast-path to “no” or remove the Fast Forward option in the bridge to be able to filter the traffic with the Router firewall?

Thank you again!

9

Which part? But if it is working for you, great.

10

My transparent firewall, ether6 up-link, ether7 down-link.

/interface bridge
add name=bridge1
/interface bridge port
add bridge=bridge1 ingress-filtering=no interface=ether7
add bridge=bridge1 ingress-filtering=no interface=ether6
/interface bridge settings
set use-ip-firewall=yes




/ip firewall raw
add action=drop chain=prerouting src-address-list=Address-List
11

I’m struggling to have traffic filtered by the router.

Enabling
use-ip-firewall to yes
and
use-ip-firewall-for-vlan to yes still does not allow me to filter traffic.

Any idea why?
Forward traffic is going through the firewall but as soon as I enter destination IP, it’s not going through the firewall rule…

12

You must disable hardware offload on each port on the bridge.

13

Thank you!

Great help from the community, everything is now working as expected.

I understand that for most of you it's your main job (network) but for me it's a one time setup where I need/want to understand what is happening and although I did spend a good amount of time reading/getting trained, sometimes a small help like this makes a big difference!

Thank you again.
