Hi all!
I’ve a Mikrotik router communicating with a CISCO router out of my company, that has been set to form a IPsec VPN tunnel with one of my customers.
I managed to stablish phase 2, but I see no traffic on the tunnel. I went trough some existing posts here on the forum, but none of the solutions actually worked for me.

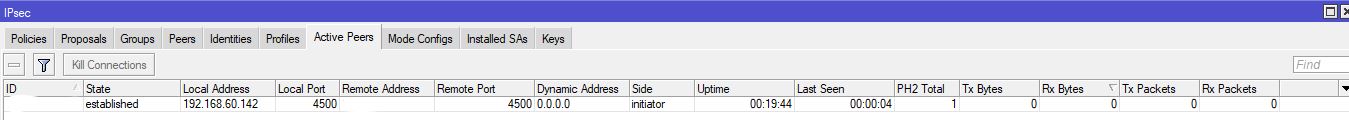

My PH2 Total shows 1, and the state shows “established”
The downside of this application is that I can’t debug the CISCO router, so I have only the Mikrotik to play with.
Can someone help me if I need to create additional firewall rules or NAT rules?
Thanks!!
Her is my code:
/ip ipsec profile
add dh-group=modp2048 enc-algorithm=aes-256 hash-algorithm=sha256 lifetime=1h name=VPNPh1 prf-algorithm=sha256
/ip ipsec peer
add address=PEER_IP/32 exchange-mode=ike2 name=VPNPeer profile=VPNPh1
/ip ipsec proposal
add auth-algorithms=sha256 enc-algorithms=aes-256-cbc lifetime=1d name=VPNPh2 pfs-group=modp2048
/ip pool
add name=dhcp ranges=192.168.1.10-192.168.1.254
/ip dhcp-server
add address-pool=dhcp disabled=no interface=bridge name=defconf
/interface bridge port
add bridge=bridge comment=defconf interface=ether2
add bridge=bridge comment=defconf interface=ether3
add bridge=bridge comment=defconf interface=ether4
add bridge=bridge comment=defconf interface=ether5
/ip neighbor discovery-settings
set discover-interface-list=LAN
/interface list member
add comment=defconf interface=bridge list=LAN
add comment=defconf interface=ether1 list=WAN
/ip address
add address=192.168.1.1/24 comment=defconf interface=bridge network=192.168.1.0
/ip dhcp-client
add comment=defconf disabled=no interface=ether1
/ip dhcp-server network
add address=192.168.1.0/24 comment=defconf dns-server=192.168.88.1 gateway=192.168.1.1 netmask=24
/ip dns
set allow-remote-requests=yes
/ip dns static
add address=192.168.1.1 comment=defconf name=router.lan
/ip firewall filter
add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
add action=accept chain=input comment="defconf: accept to local loopback (for CAPsMAN)" dst-address=127.0.0.1
add action=accept chain=input comment="IPsec Accept" protocol=ipsec-esp
add action=accept chain=forward comment="defconf: accept in ipsec policy" ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" ipsec-policy=out,ipsec
add action=drop chain=input comment="defconf: drop all not coming from LAN" in-interface-list=!LAN
add action=fasttrack-connection chain=forward comment="defconf: fasttrack" connection-state=established,related
add action=accept chain=forward comment="defconf: accept established,related, untracked" connection-state=established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid
add action=drop chain=forward comment="defconf: drop all from WAN not DSTNATed" connection-nat-state=!dstnat connection-state=new in-interface-list=WAN
/ip firewall nat
add action=masquerade chain=srcnat comment="defconf: masquerade" ipsec-policy=out,none out-interface-list=WAN
/ip ipsec identity
add peer=VPNPeer secret=PASSKEY
/ip ipsec policy
add dst-address=DEST_IP/32 peer=VPNPeer src-address=SRC_IP/32 tunnel=yes
