Hi, I’m setting up ipsec vpn between RB951Ui-2HnD with ROS v6.24 and Dlinl DFL-210.
Here is my config
ip ipsec export
# jan/13/2015 10:32:49 by RouterOS 6.24
# software id = QK0X-RM2Y
#
/ip ipsec policy group
add name=bit
/ip ipsec proposal
set [ find default=yes ] auth-algorithms=md5,sha1 enc-algorithms=des \
pfs-group=none
/ip ipsec peer
add address=xx.xx.xx.198/32 comment=bit dh-group=modp768 enc-algorithm=des \
nat-traversal=no secret=mysecret
/ip ipsec policy
add dst-address=192.168.111.0/26 sa-dst-address=xx.xx.xx.198 sa-src-address=\
xx.xx.xx.53 src-address=192.168.88.0/24 tunnel=yes

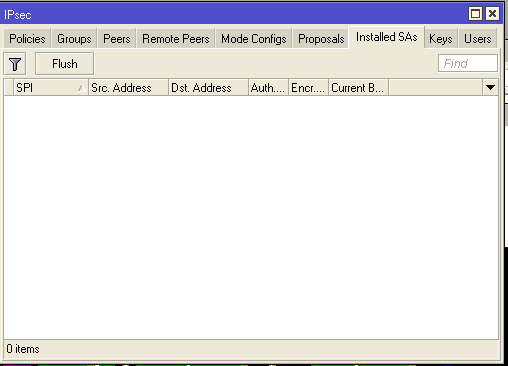

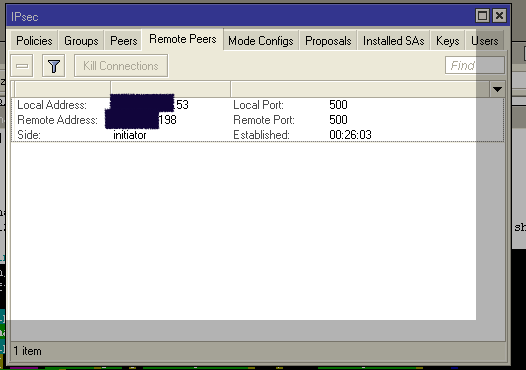

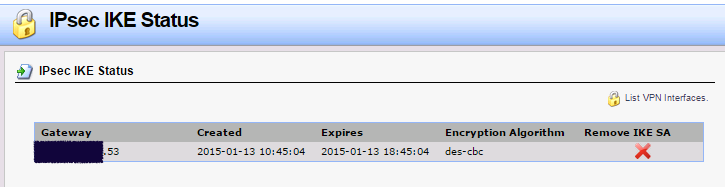

on the screenshots we can see that connection between peers is established, but no installed SAs and no routes between local end remote networks. mikrotik is connected to the internet via PPPOE session.
Please help! What should I do to make it work properly? Thank you.
