hi guys, just wanted to try and understand the best method to achieve my goal of forwarded both LAN&IPTV packets through PTP antennas

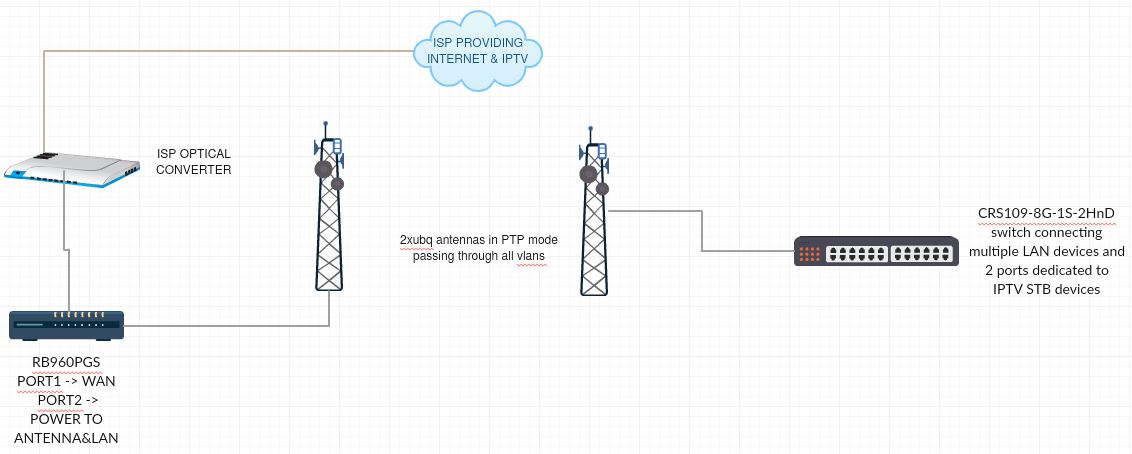

the setup i have looks like this (both mikrotik router/switch at latest versions)
1st router config looks like this:
[hooliz@home] > /interface print
Flags: D - dynamic, X - disabled, R - running, S - slave
# NAME TYPE ACTUAL-MTU L2MTU
0 R ether1 ether 1500 1598 ====> WAN INTERFACE WITH VLAN ASSIGNED (ether1-vlan6)
1 RS ether2 ether 1500 1598 ====> LAN INTERFACE in default bridge (assigned ether2-vlan6 while testing)
6 R bridge bridge 1500 1598
7 R bridge-vlan6 bridge 1500 1594 ====> bridge for both eth1/eth2 vlans
8 RS ether1-vlan6 vlan 1500 1594
9 RS ether2-vlan6 vlan 1500 1594
[hooliz@home] > /interface bridge print
Flags: X - disabled, R - running
0 R ;;; defconf
name="bridge" mtu=auto actual-mtu=1500 l2mtu=1598 arp=enabled arp-timeout=auto protocol-mode=rstp fast-forward=no igmp-snooping=no auto-mac=yes
ageing-time=5m priority=0x8000 max-message-age=20s forward-delay=15s transmit-hold-count=6 vlan-filtering=no
1 R name="bridge-vlan6" mtu=auto actual-mtu=1500 l2mtu=1594 arp=enabled arp-timeout=auto protocol-mode=rstp fast-forward=no igmp-snooping=no
auto-mac=yes ageing-time=5m priority=0x8000 max-message-age=20s forward-delay=15s transmit-hold-count=6 vlan-filtering=no
when i try DHCP-client on bridge-vlan6 on the first router i do get the proper IPTV address via vlan6 from my ISP and
i’d like my second switch to be able to get the IPaddress from vlan6, so both LAN and IPV6 packets should be forwarded somehow to my second switch,
The question here is how to achieve this and whether i should be using “/interface ethernet switch” capabilities here or any other methods to achive this ?
