Hi, guys!
Hardware RB951G-2HnD
Software MikroTik RouterOS 5.22
This time Router has a default config, but in ether1-gateway i assign a static IP from provider subnet
[admin@MikroTik] > int pri
Flags: D - dynamic, X - disabled, R - running, S - slave
# NAME TYPE MTU L2MTU MAX-L2MTU
0 R ether1-gateway ether 1500 1598 4074
1 R ether2-master-local ether 1500 1598 4074
2 ether3-slave-local ether 1500 1598 4074
3 ether4-slave-local ether 1500 1598 4074
4 ether5-slave-local ether 1500 1598 4074
5 wlan1 wlan 1500 2290
6 R bridge-local bridge 1500 1598
but this static ip only for a test time, normally this ip will assign from DHCP server.
How you are look in this int. list ether1-gateway is provider link. In ether2-master-local my PC. Further in ether5-slave-local will link to IPTV box.
This topic only for answer: How to isolate any igmp and DHCP request + traffic for/from iptv box from home internet? But leave a possibility for see IPTV from PC and wifi via VLC. Because i dont want out igmp traffic for IPTV box to any PC and see a led activity in any local interfaces.
And last, I dont want use in router any IGMP-proxy software emulation i need rule this in hardware ala bridging… its possible?
note: Zyxel Keenetic have a option in interface general list where 1 or more interfaces can be isolate from Home network only use for WAN → IPTV
Have no any idea?
I see in Bridge section #Bridge Brouting Facility# but in my CLI i cannot find this command. Dear developers, do not ignore me, please help me to configure my IPTV.
Not really sure what you are trying to accomplish but I can think of a few different ways to do this.
You could create another bridge and separate the interface that the IPTV is on into that bridge. Create a another DHCP pool and server to service that bridge and create the route for the bridge.
You could also turn on “Use IP Firewall” under the bridge settings and create rules to filter out the traffic that you don’t wan’t.
Hi!

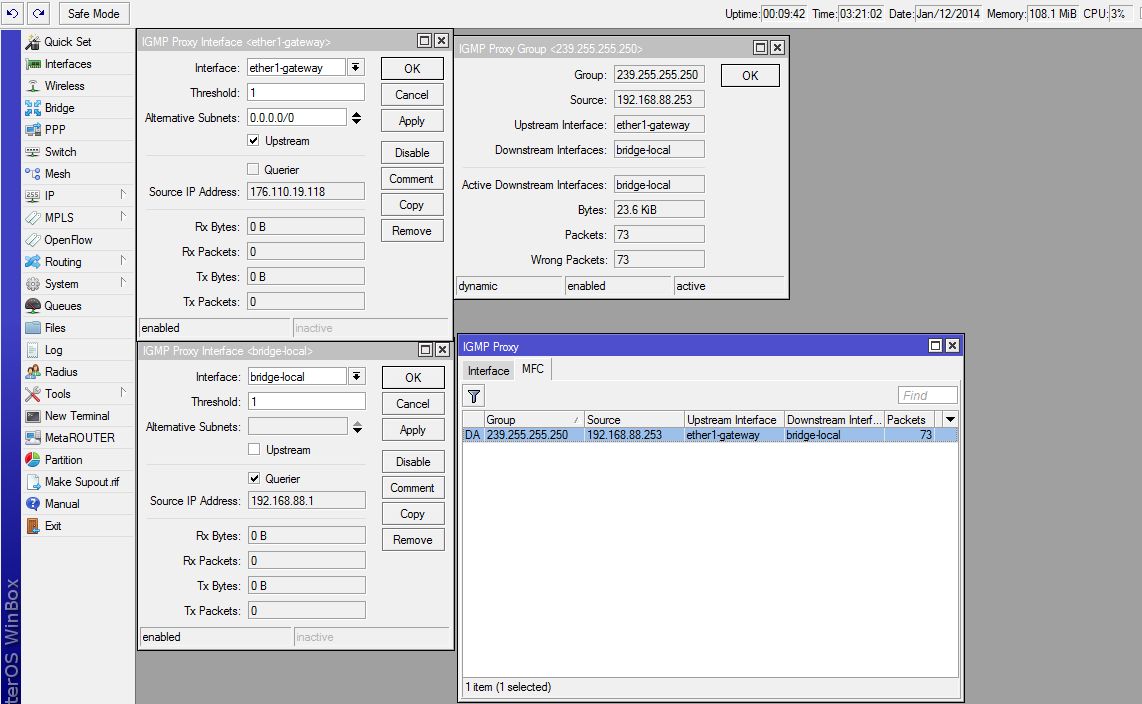

Well, I add package igmp-proxy and this work well.
But if restart a IPTV box ip for IPTV box from provider DHCP can’t be assign. DHCP server of Mikrotik router for ether5-slave-local not work this work only in router 2-4 ports.

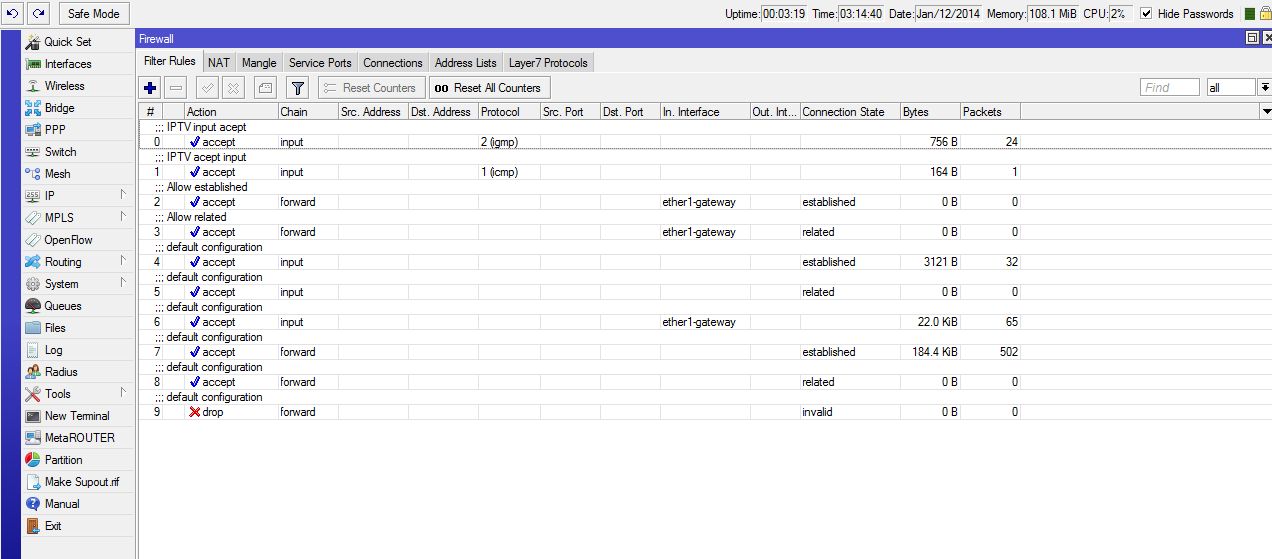

[admin@MikroTik] > ip fire fil pri
Flags: X - disabled, I - invalid, D - dynamic
0 ;;; default configuration
chain=input action=accept protocol=icmp
1 ;;; default configuration
chain=input action=accept connection-state=established
2 ;;; default configuration
chain=input action=accept connection-state=related
3 chain=forward action=accept protocol=igmp
[admin@MikroTik] > interface bridge port print
Flags: X - disabled, I - inactive, D - dynamic
# INTERFACE BRIDGE PRIORITY PATH-COST HORIZON
0 ether2-master-local bridge-local 0x80 10 none
1 I wlan1 bridge-local 0x80 10 none
Is there a specific reason you don’t want to route multicast and IGMP? Routed multicast is a best practice design for most IPTV networks - IGMP and IGMP proxy both work well in this setup.
I think you should add the interface towards your IPTV box and your ISP gateway to the IPTV bridge.
If and do DHCP-client/static assignment of your ISP to that bridge.
Than you IPTV box will get an IP from your ISP as well.
