Hello,
I am trying to build up a IPv6 lab environment and using GNS3 for that. Mikrotik OS i am using is 6.39rc68 (testing). IPv6 setup works fine with the CISCO OS configured in same LAB scenario but when after adding Mikrotik OS 6.39rc68 (testing) i discovered iBGP routes are showing unreachable. I found some old thread about the same issue and not sure its fixed by the OS i am using or i need other version. Please suggest me how to fix it.

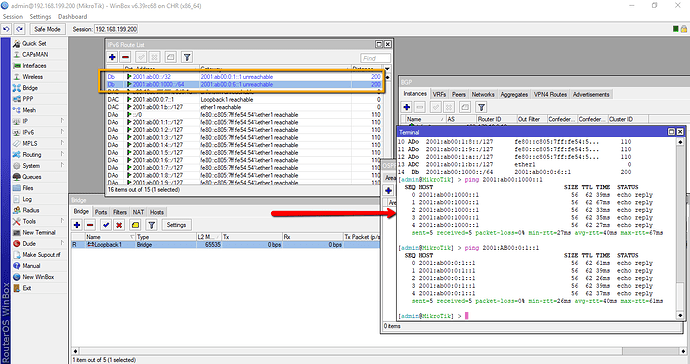

[admin@MikroTik] > ipv6 route print
Flags: X - disabled, A - active, D - dynamic,
C - connect, S - static, r - rip, o - ospf, b - bgp, U - unreachable
DST-ADDRESS GATEWAY DISTANCE
0 ADo ::/0 fe80::c805:7ff:fe54:5... 110
1 Db 2001:ab00::/32 2001:ab00:0:1::1 200
2 ADC 2001:ab00:0:7::1/128 Loopback1 0
3 ADo 2001:ab00:1:1::/127 fe80::c805:7ff:fe54:5... 110
4 ADo 2001:ab00:1:2::/127 fe80::c805:7ff:fe54:5... 110
5 ADo 2001:ab00:1:3::/127 fe80::c805:7ff:fe54:5... 110
6 ADo 2001:ab00:1:4::/127 fe80::c805:7ff:fe54:5... 110
7 ADo 2001:ab00:1:5::/127 fe80::c805:7ff:fe54:5... 110
8 ADo 2001:ab00:1:6::/127 fe80::c805:7ff:fe54:5... 110
9 ADo 2001:ab00:1:7::/127 fe80::c805:7ff:fe54:5... 110
10 ADo 2001:ab00:1:8::/127 fe80::c805:7ff:fe54:5... 110
11 ADo 2001:ab00:1:9::/127 fe80::c805:7ff:fe54:5... 110
12 ADo 2001:ab00:1:a::/127 fe80::c805:7ff:fe54:5... 110
13 ADC 2001:ab00:1:b::/127 ether1 0
14 Db 2001:ab00:1000::/64 2001:ab00:0:6::1 200
But when i ping
[admin@MikroTik] > ping 2001:ab00:1000::1
SEQ HOST SIZE TTL TIME STATUS
0 2001:ab00:1000::1 56 62 39ms echo reply
1 2001:ab00:1000::1 56 62 67ms echo reply
2 2001:ab00:1000::1 56 62 33ms echo reply
3 2001:ab00:1000::1 56 62 35ms echo reply
4 2001:ab00:1000::1 56 62 27ms echo reply
sent=5 received=5 packet-loss=0% min-rtt=27ms avg-rtt=40ms max-rtt=67ms
[admin@MikroTik] > ping 2001:AB00:0:1::1
SEQ HOST SIZE TTL TIME STATUS
0 2001:ab00:0:1::1 56 62 61ms echo reply
1 2001:ab00:0:1::1 56 62 39ms echo reply
2 2001:ab00:0:1::1 56 62 26ms echo reply
3 2001:ab00:0:1::1 56 62 39ms echo reply
4 2001:ab00:0:1::1 56 62 37ms echo reply
sent=5 received=5 packet-loss=0% min-rtt=26ms avg-rtt=40ms max-rtt=61ms
It seems i am getting ping reply.
Please suggest.
Thanks in advance
