IPv6 subnet unable to ping Internet

o4kly · February 21, 2022, 12:42pm

Hi,

I'll try to keep it short:
Network:
Modem - MT RB3011 - Ubiquiti UDM - LAN

I can ping IPv6 hosts on the internet from MT
I can't ping IPv6 on the internet from my client within the UDM-LAN

So I searched the forum and it seems to be a common IPv6-noob-issue, but I don't understand, what I have do add or change.

feb/21/2022 13:40:28 by RouterOS 6.49.3

software id = PD93-KWF3

model = RB3011UiAS

serial number = E7E60F55AF25

/ipv6 dhcp-server
add address-pool=IPv6Pool-nfc dhcp-option="" disabled=no interface=bridge lease-time=3d name=DHCPv6 preference=255 rapid-commit=yes route-distance=1 use-radius=no
/ipv6 pool
add name=IPv6Pool-nfc prefix=2001:db8:7501::/60 prefix-length=62
/ipv6 dhcp-client
add add-default-route=yes default-route-distance=1 dhcp-options="" disabled=no interface=pppoe-out1 pool-name=WANIPv6 pool-prefix-length=64 prefix-hint=::/0
request=prefix use-peer-dns=yes
/ipv6 firewall address-list
add address=::/128 comment="defconf: unspecified address" disabled=no dynamic=no list=bad_ipv6
add address=::1/128 comment="defconf: lo" disabled=no dynamic=no list=bad_ipv6
add address=fec0::/10 comment="defconf: site-local" disabled=no dynamic=no list=bad_ipv6
add address=::ffff:0.0.0.0/96 comment="defconf: ipv4-mapped" disabled=no dynamic=no list=bad_ipv6
add address=::/96 comment="defconf: ipv4 compat" disabled=no dynamic=no list=bad_ipv6
add address=100::/64 comment="defconf: discard only " disabled=no dynamic=no list=bad_ipv6
add address=2001:db8::/32 comment="defconf: documentation" disabled=no dynamic=no list=bad_ipv6
add address=2001:10::/28 comment="defconf: ORCHID" disabled=no dynamic=no list=bad_ipv6
add address=3ffe::/16 comment="defconf: 6bone" disabled=no dynamic=no list=bad_ipv6
add address=::224.0.0.0/100 comment="defconf: other" disabled=no dynamic=no list=bad_ipv6
add address=::127.0.0.0/104 comment="defconf: other" disabled=no dynamic=no list=bad_ipv6
add address=::/104 comment="defconf: other" disabled=no dynamic=no list=bad_ipv6
add address=::255.0.0.0/104 comment="defconf: other" disabled=no dynamic=no list=bad_ipv6
/ipv6 firewall filter
add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
add action=accept chain=input comment="defconf: accept ICMPv6" protocol=icmpv6
add action=accept chain=input comment="defconf: accept UDP traceroute" port=33434-33534 protocol=udp
add action=accept chain=input comment="defconf: accept DHCPv6-Client prefix delegation." dst-port=546 protocol=udp src-address=fe80::/10
add action=accept chain=input comment="defconf: accept IKE" dst-port=500,4500 protocol=udp
add action=accept chain=input comment="defconf: accept ipsec AH" protocol=ipsec-ah
add action=accept chain=input comment="defconf: accept ipsec ESP" protocol=ipsec-esp
add action=accept chain=input comment="defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=input comment="defconf: drop everything else not coming from LAN" in-interface-list=!LAN
add action=accept chain=forward comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid
add action=drop chain=forward comment="defconf: drop packets with bad src ipv6" src-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: drop packets with bad dst ipv6" dst-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: rfc4890 drop hop-limit=1" hop-limit=equal:1 protocol=icmpv6
add action=accept chain=forward comment="defconf: accept ICMPv6" protocol=icmpv6
add action=accept chain=forward comment="defconf: accept HIP" protocol=139
add action=accept chain=forward comment="defconf: accept IKE" dst-port=500,4500 protocol=udp
add action=accept chain=forward comment="defconf: accept ipsec AH" protocol=ipsec-ah
add action=accept chain=forward comment="defconf: accept ipsec ESP" protocol=ipsec-esp
add action=accept chain=forward comment="defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=forward comment="defconf: drop everything else not coming from LAN" in-interface-list=!LAN
/ipv6 nd
set [ find default=yes ] advertise-dns=yes advertise-mac-address=yes disabled=no hop-limit=unspecified interface=bridge managed-address-configuration=yes mtu=
unspecified other-configuration=no ra-delay=3s ra-interval=20s-1m ra-lifetime=30m reachable-time=unspecified retransmit-interval=unspecified
/ipv6 nd prefix default
set autonomous=yes preferred-lifetime=1w valid-lifetime=4w2d
/ipv6 settings
set accept-redirects=yes-if-forwarding-disabled accept-router-advertisements=yes forward=yes max-neighbor-entries=8192

What do I have do change / add?

Thank you,
Markus

mkx · February 21, 2022, 2:14pm

I don’t see IPv6 address being assigned to interface connecting to Ubiquiti …

o4kly · February 21, 2022, 3:02pm

Oh, ok. I thought this is done by this:

/ipv6 dhcp-server
add address-pool=IPv6Pool-nfc dhcp-option=“” disabled=no interface=bridge lease-time=3d name=DHCPv6 preference=255 rapid-commit=yes route-distance=1 use-radius=no
/ipv6 pool
add name=IPv6Pool-nfc prefix=2001:db8:7501::/60 prefix-length=62

with the Ubiquiti being connected to “bridge”.

How should this look like instead?

Sob · February 21, 2022, 3:24pm

Do you have another DHCPv6 server for clients? The one in RouterOS only provides prefixes, not addresses.

o4kly · February 21, 2022, 3:29pm

This is i.e. ip addr of a server behind the Ubiquiti:

5: bond0: <BROADCAST,MULTICAST,MASTER,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
link/ether a2:4c:88:38:94:c8 brd ff:ff:ff:ff:ff:ff
inet 192.168.119.4/24 brd 192.168.119.255 scope global bond0
valid_lft forever preferred_lft forever
inet6 2001:db8:7501:0:a04c:88ff:fe38:94c8/64 scope global dynamic mngtmpaddr noprefixroute
valid_lft 86173sec preferred_lft 86173sec
inet6 2001:db8:7501::13e/128 scope global dynamic noprefixroute
valid_lft 73948sec preferred_lft 73948sec
inet6 fd3e:ead1:1b15:48ad:a04c:88ff:fe38:94c8/64 scope global dynamic mngtmpaddr noprefixroute
valid_lft 1573sec preferred_lft 296sec
inet6 fe80::a04c:88ff:fe38:94c8/64 scope link
valid_lft forever preferred_lft forever

From what I see the IPv6 is being delegated to my subnet, right?
If I try to ping i.e. 2620:119:35::35 from my subnet, nothing happens:

ping6 2620:119:35::35

PING6(56=40+8+8 bytes) 2001:db8:7501:0:6d66:3d41:41b2:463d --> 2620:119:35::35
(nothing else)

Or maybe I do not get your question.

Best,
Markus

o4kly · February 21, 2022, 4:02pm

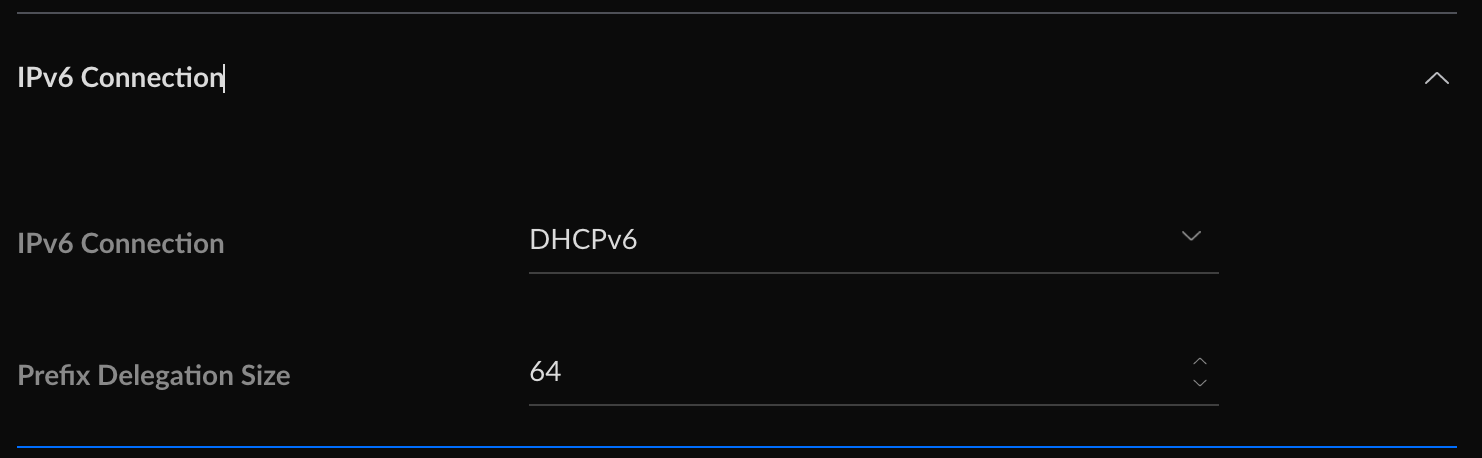

When connecting the Ubiquiti UDM to the MT RB3011, I only provide the info to the UDM, that it will get a delegation from the MT (pls find attached a screenshot of the UDM GUI), nothing else. So I guess my subnet clients are getting their IPv6 addresses “automatically”. I’m not quite sure, if this is part of IPv6 functionality or if it is handled by a DHCPv6.

o4kly · February 21, 2022, 7:38pm

I've worked on it without sucess ...
Here is the current IPv6 export

feb/21/2022 20:37:22 by RouterOS 6.49.3

software id = PD93-KWF3

model = RB3011UiAS

serial number = E7E60F55AF25

/ipv6 dhcp-server
add address-pool=IPv6Pool-nfc interface=bridge name=DHCPv6
/ipv6 pool
add name=IPv6Pool-nfc prefix=2001:db8:7501::/60 prefix-length=62
/ipv6 address
add from-pool=WANIPv6 interface=bridge
/ipv6 dhcp-client
add add-default-route=yes interface=pppoe-out1 pool-name=WANIPv6 request=prefix
/ipv6 firewall address-list
add address=::/128 comment="defconf: unspecified address" list=bad_ipv6
add address=::1/128 comment="defconf: lo" list=bad_ipv6
add address=fec0::/10 comment="defconf: site-local" list=bad_ipv6
add address=::ffff:0.0.0.0/96 comment="defconf: ipv4-mapped" list=bad_ipv6
add address=::/96 comment="defconf: ipv4 compat" list=bad_ipv6
add address=100::/64 comment="defconf: discard only " list=bad_ipv6
add address=2001:db8::/32 comment="defconf: documentation" list=bad_ipv6
add address=2001:10::/28 comment="defconf: ORCHID" list=bad_ipv6
add address=3ffe::/16 comment="defconf: 6bone" list=bad_ipv6
add address=::224.0.0.0/100 comment="defconf: other" list=bad_ipv6
add address=::127.0.0.0/104 comment="defconf: other" list=bad_ipv6
add address=::/104 comment="defconf: other" list=bad_ipv6
add address=::255.0.0.0/104 comment="defconf: other" list=bad_ipv6
/ipv6 firewall filter
add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
add action=accept chain=input comment="defconf: accept ICMPv6" protocol=icmpv6
add action=accept chain=input comment="defconf: accept UDP traceroute" port=33434-33534 protocol=udp
add action=accept chain=input comment="defconf: accept DHCPv6-Client prefix delegation." dst-port=546 protocol=udp src-address=fe80::/10
add action=accept chain=input comment="defconf: accept IKE" dst-port=500,4500 protocol=udp
add action=accept chain=input comment="defconf: accept ipsec AH" protocol=ipsec-ah
add action=accept chain=input comment="defconf: accept ipsec ESP" protocol=ipsec-esp
add action=accept chain=input comment="defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=input comment="defconf: drop everything else not coming from LAN" in-interface-list=!LAN
add action=accept chain=forward comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid
add action=drop chain=forward comment="defconf: drop packets with bad src ipv6" src-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: drop packets with bad dst ipv6" dst-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: rfc4890 drop hop-limit=1" hop-limit=equal:1 protocol=icmpv6
add action=accept chain=forward comment="defconf: accept ICMPv6" protocol=icmpv6
add action=accept chain=forward comment="defconf: accept HIP" protocol=139
add action=accept chain=forward comment="defconf: accept IKE" dst-port=500,4500 protocol=udp
add action=accept chain=forward comment="defconf: accept ipsec AH" protocol=ipsec-ah
add action=accept chain=forward comment="defconf: accept ipsec ESP" protocol=ipsec-esp
add action=accept chain=forward comment="defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=forward comment="defconf: drop everything else not coming from LAN" in-interface-list=!LAN
/ipv6 nd
set [ find default=yes ] interface=bridge
/ipv6 settings
set accept-router-advertisements=yes

o4kly · February 21, 2022, 7:58pm

SOLVED

I’ve removed the 2nd Pool and only worked the one and only provided from my ISP.
