is CCR1016-12G able to handle this?

Hardware MikroTik hardware general
1

is CCR1016-12G able to handle this?
the environment is hostel. so i have max 400 concurrent users.
i will using this router to do this jobs:
1)Load balancing with 4 X 20Mbps(Download/upload)-dynamic ip address from ISP
2)NAT
3)Qos
4)Hotspot authentication with limited time (all wireless access)
5)DHCP server
6)Equal bandwidth base on active users.
7)remote access

is CCR1016-12G able to handle this?
or any recommendation?

Need help configuring firewall rules for ccr1016-12g
2

I think this is the router for you.
Because we’ve done some similar projects and the amount of load is somewhat less than that, We don’t had problems with this router and the RB1100AHx2 been responsive.
But I think to ensure more and the ability to upgrade in the future better use of the CCR1036-12G-4S.

3

so you think 1pcs of router is enough or need split into 2?

if split into 2:
1st router jobs
1)Load balancing with 4 X 20Mbps(Download/upload)-dynamic ip address from ISP
2)NAT
3)DHCP server
4)remote access

2nd router jobs
1)Equal bandwidth base on active users.
2)Qos
3)Hotspot authentication with limited time (all wireless access)

may i know which will use more CPU?

4

Deleted because not related.

5

Hi Nelson,

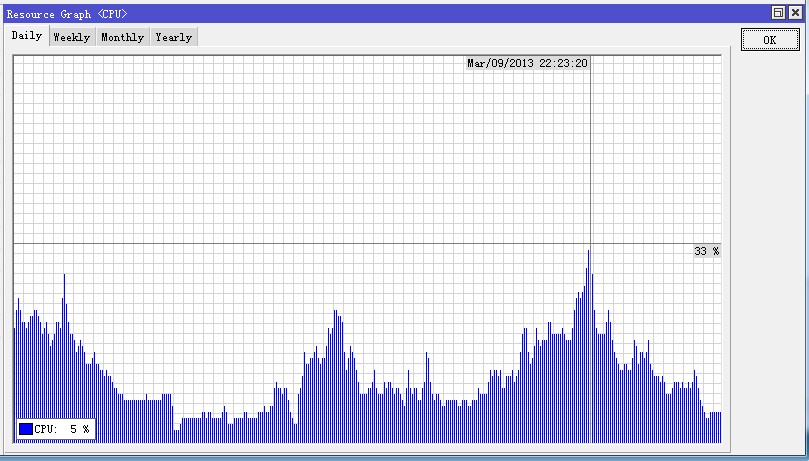

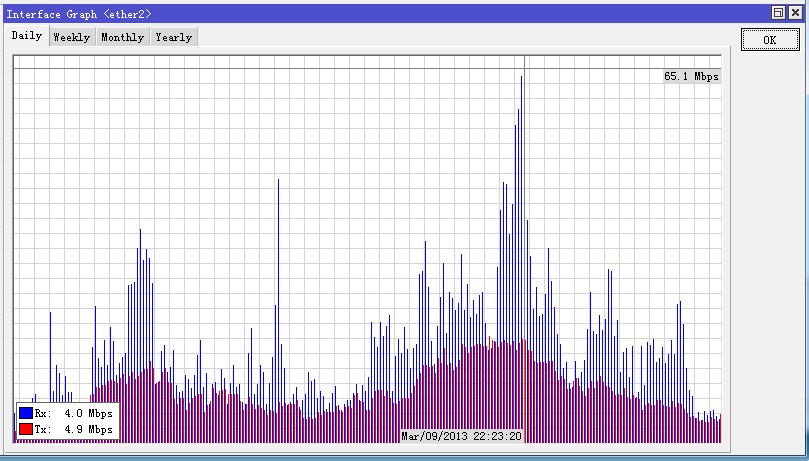

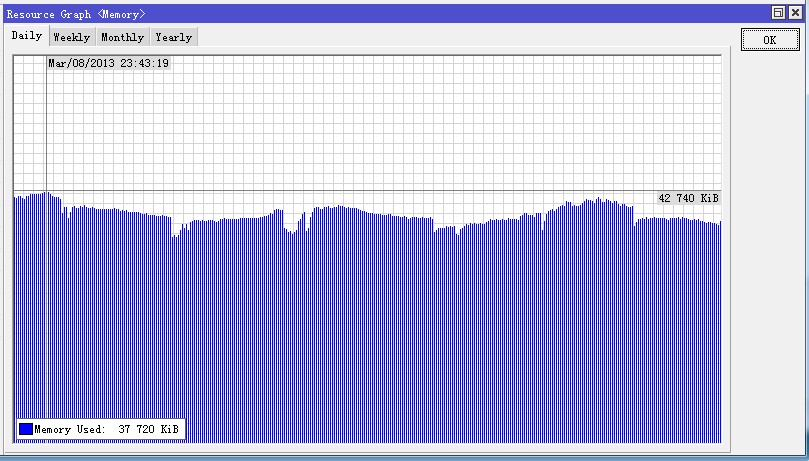

I think CCR series is better than RB series in your case. Here is an example which with 5x20Mbps load balance, policy route, about 100 users, hotspot and qos. It’s using x86 version ROS with an Intel E2140 1.6GHz x2 and 512MB RAM.

6

Hi nelson6069
I think if you use CCR1036, You can use all config in one router. You may even use CCR1016.
So I recommend CCR136 for that

7

Hello nelson6069,

the environment is hostel. so i have max 400 concurrent users.

Are they all at the same time online I suggest you also to take a bigger one
or you have the time to wait until all cores are smooth working on ROS
it would be the router for you I think, but the CCR1036 would be a better choice for you

1)Load balancing with 4 X 20Mbps(Download/upload)-dynamic ip address from ISP

Pretty sure it will.

2)NAT

Yes it will if you setting up a netfilter rule first and then a second one that tells
all other rules using the netfilter rule first, you also have SPI in the game! :wink:

3)Qos

If massively QoS rules will be used the entire router performance
can be really narrowed down, but this is also pending on the multi core
usage that is not really running now, as I see it.

4)Hotspot authentication with limited time (all wireless access)



5)DHCP server
6)Equal bandwidth base on active users.
7)remote access

No problem I think.
