Is it possible to make RouterOS reset settings to standard, by cutting the power for x amount of time?

RouterOS Scripting
1

Hello,

I recently got myself a ATL 5G R16 outdoor antenna with RouterOS on. I have this device mounted very high up, that is not easily accessed. Not only is it hard to get up there, it is also dangerous.

But what if I need to make a Reset, Power on - press and hold Reset button 5 sec. I'd have to climb all the way up there.

So I was wondering if there perhaps was another way?
Like activate the Reset procedure IF Unsafe Power Out (cut the power) AND waiting to Power on for x amount of minutes.

Or is there any other way to Reset the Router OS, if you cannot connect to it for some reason (most like me doing something that breaks it), so I can avoid killing myself from nasty fall.

Thanks.

3

poe with reset 2
poe with reset 2472×390 26.3 KB

recently i found another brand put the reset button on their PoE. perhaps MikroTik team can do observe and put this on the PoE products.

4

So, in your opinion, that reset button is used to reset the powered peripheral...
not the device itself...
This is nothing but an AI hallucination. I'd really like to see whether this is true or not...

In fact, to write this nonsense, you change accounts: prawira / prawira67.
Using the one with the "Trainers" icon was too much...

5

The SAFE MODE button/mode has been around for decades.
There are tools to avoid this, you just have to use them.

6

Safe Mode, thanks. That would be something Ill use in the future.

So there is no scenario where I'd have to use the Reset Button?

7

Netinstall...

8

Build some button pusher robot mounted on same mast and control it over some alternative network connection or RF. https://www.youtube.com/watch?v=emaWr7aDaEE& :slight_smile:

9

I wonder how you put it there the first time... Did you throw it? Did you bring it up with a drone?

10

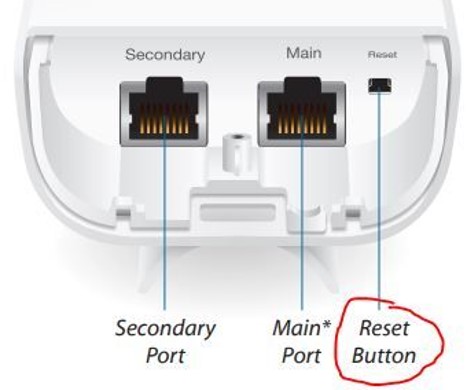

I don't think that photo in this post is a PoE injector. That looks like a NanoStation M2 radio.

However those did have remote factory reset via a reset button on the power injector.

See this and this more more technical details (these were from non-official reverse engineered posts).

11

Could you connect using MACconnection to that device?

12

Exactly, that is the point. i do not want the expose the exact brand that already implement it.

that reset button is not for power cycle, but to do factory reset of the hardware / radio connected to it. Perhaps MikroTik can do this too.

13

urlo_gatto
urlo_gatto173×260 23.5 KB

I don't believe it... I've never noticed any vendor implementing it...

Okay, insult me, I deserve it...

On my side, I have the user changing their account...
And the image has nothing to do with it...
Also because it's obvious it wasn't a PoE...
And I use that brand, but only the products with "white" PoE that do not have remote reset...

14

The idea of ​​using the device's power on/off sequence is truly stupid.
Inadvertent resets of these devices happen all the time when there's work on the power line.

The idea of ​​resetting using a patched cable, or using the PoE button, isn't so bad...

But already, if the chip has enough memory, you can create two partitions,
so that when you power down and power up, RouterBOOT will do the trick...

15

Well, one could have (in theory) a sort of SOS provision.

The probabiluty that works on electric line will produce (say) a:
· · · — — — · · ·
is rather remote, particularly if we give (still say) 0.5-1 second for dot and 2-3 seconds for dash, the whole thing will take some 15 seconds.

16

Then it would become like the reset button on MikroTik devices...
you would need a specific device that gives/removes power...
Maybe a script, or a button itself on winbox, would start the sequence in a PoE switch... :wink:

17

Yep, I would guess that making one with an ESP32 or similar and a relay shouldn't be that difficult, a manufactured device sold for (say) 40-50 bucks would IMHO sell like hotcakes to people managing outdoor devices mounted on difficult to reach places (poles/antennas/roofs/etc.

18

Thanks for all the replies.

@BartoszP That is also a great feature that I've used, but if something (most likely me) softbricked the device. I think perhaps Safe Mode will save me 90% of the time.

But I would definitely like a feature or device that would make it possible to trigger the Reset button remotely.
