Is this vlan setting correct?

Azman1993 · August 3, 2024, 10:42pm

Hi, im new on Mikrotik and i learn to create vlan and i watched tutorial on youtube and on forum mikrotik and i want the opinion of someone who knows about the topic and tell me if the vlan I am doing is correct

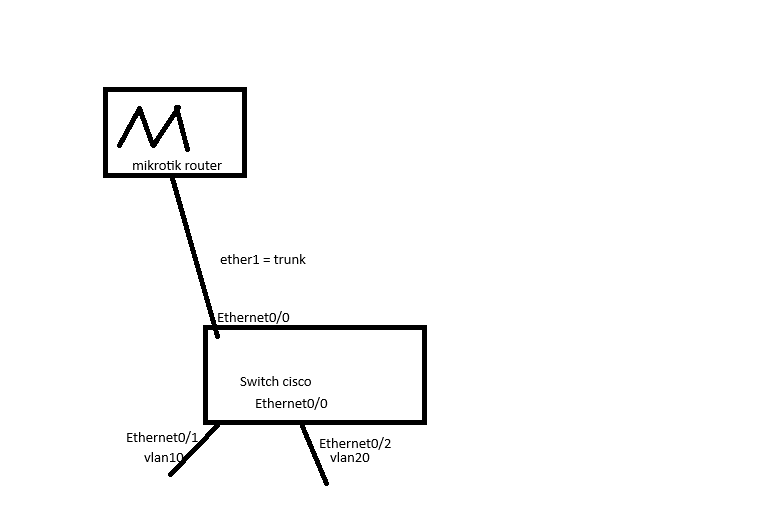

In attachments i give you my config router mikrotik and scheme
Thanks for all opinion

Switch configuration cisco

IOU1#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
IOU1(config)#interface Ethernet0/0
IOU1(config-if)#switchport trunk encapsulation dot1q
IOU1(config-if)#switchport mode trunk
IOU1(config-vlan)#name vlan10
IOU1(config-vlan)#exit
IOU1(config)#vlan 20
IOU1(config-vlan)#name vlan20
IOU1(config-vlan)#exit
IOU1(config)#interface Ethernet0/1
IOU1(config-if)#switchport mode access
IOU1(config-if)#switchport access vlan10
IOU1(config-if)#exit
IOU1(config)#interface Ethernet0/2
IOU1(config-if)#switchport mode access
IOU1(config-if)#switchport access vlan20

mikrotik

# 2024-08-03 22:30:07 by RouterOS 7.11.2
# software id =
#
/interface bridge
add name=bridge vlan-filtering=yes
/interface ethernet
set [ find default-name=ether1 ] disable-running-check=no
set [ find default-name=ether2 ] disable-running-check=no
set [ find default-name=ether3 ] disable-running-check=no
set [ find default-name=ether4 ] disable-running-check=no
set [ find default-name=ether5 ] disable-running-check=no
set [ find default-name=ether6 ] disable-running-check=no
set [ find default-name=ether7 ] disable-running-check=no
set [ find default-name=ether8 ] disable-running-check=no
/interface vlan
add interface=ether1 name=vlan10 vlan-id=10
add interface=ether1 name=vlan20 vlan-id=20
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip pool
add name=pool0 ranges=10.0.10.1-10.0.10.254
add name=pool1 ranges=10.0.20.1-10.0.20.254
/ip dhcp-server
add address-pool=pool0 interface=vlan10 name=vlan10dhcp
add address-pool=pool1 interface=vlan20 name=vlan20dhcp
/port
set 0 name=serial0
/interface bridge port
add bridge=bridge interface=ether1
/interface bridge vlan
add bridge=bridge tagged=ether1,bridge vlan-ids=10
add bridge=bridge tagged=ether1,bridge vlan-ids=20
/ip address
add address=10.0.10.1/24 interface=vlan10 network=10.0.10.0
add address=10.0.20.1/24 interface=vlan20 network=10.0.20.0
/ip dhcp-client
# DHCP client can not run on slave or passthrough interface!
add interface=ether1
/ip dhcp-server network
add address=10.0.10.0/24 gateway=10.0.10.1
add address=10.0.20.0/24 gateway=10.0.20.1
/ip firewall filter
add action=drop chain=forward dst-address=10.0.10.0/24 src-address=\
    10.0.20.0/24
/system note
set show-at-login=no

conf_router.rsc (1.71 KB)

gigabyte091 · August 4, 2024, 3:50am

Hello and welcome to the forum

Please use code function for Mikrotik configuration as well.

Configuration is wrong, you are missing firewall rules, you are running DHCP client on trunk port etc.

Start here: http://forum.mikrotik.com/t/using-routeros-to-vlan-your-network/126489/1 and I can suggest you to watch TheNetworkBerg videos on VLANs.

rplant · August 4, 2024, 4:06am

Some minor changes.

cisco

interface Ethernet0/0
description trunk from mikrotik
switchport trunk encapsulation dot1q
switchport trunk allowed vlan 10,20
switchport mode trunk

#mikrotik

(Use bridge instead of ether1)

/interface vlan
add interface=bridge name=vlan10 vlan-id=10
add interface=bridge name=vlan20 vlan-id=20

Give lan access at least initially.

/interface list member
add interface=vlan10 list=LAN
add interface=vlan20 list=LAN

Azman1993 · August 4, 2024, 9:26am

# 2024-08-04 09:23:27 by RouterOS 7.11.2
# software id =
#
/interface bridge
add name=bridge vlan-filtering=yes
/interface ethernet
set [ find default-name=ether1 ] disable-running-check=no
set [ find default-name=ether2 ] disable-running-check=no
set [ find default-name=ether3 ] disable-running-check=no
set [ find default-name=ether4 ] disable-running-check=no
set [ find default-name=ether5 ] disable-running-check=no
set [ find default-name=ether6 ] disable-running-check=no
set [ find default-name=ether7 ] disable-running-check=no
set [ find default-name=ether8 ] disable-running-check=no
/interface vlan
add interface=bridge name=vlan10 vlan-id=10
add interface=bridge name=vlan100 vlan-id=100
add interface=bridge name=vlan200 vlan-id=200
/interface list
add name=LAN
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip pool
add name=dhcp_pool0 ranges=10.0.10.2-10.0.10.254
add name=dhcp_pool1 ranges=10.0.100.2-10.0.100.254
add name=dhcp_pool2 ranges=10.0.200.2-10.0.200.254
/ip dhcp-server
add address-pool=dhcp_pool0 interface=vlan10 name=dhcp1
add address-pool=dhcp_pool1 interface=vlan100 name=dhcp2
add address-pool=dhcp_pool2 interface=vlan200 name=dhcp3
/port
set 0 name=serial0
/interface bridge port
add bridge=bridge interface=ether1
add bridge=bridge interface=ether2
/interface bridge vlan
add bridge=bridge tagged=ether1,bridge untagged=ether2 vlan-ids=10
add bridge=bridge tagged=ether1,bridge vlan-ids=100
add bridge=bridge tagged=ether1,bridge vlan-ids=200
/interface list member
add interface=vlan10 list=LAN
/ip address
add address=10.0.10.1/24 interface=vlan10 network=10.0.10.0
add address=10.0.100.1/24 interface=vlan100 network=10.0.100.0
add address=10.0.200.1/24 interface=vlan200 network=10.0.200.0
/ip dhcp-client
# DHCP client can not run on slave or passthrough interface!
add interface=ether1
/ip dhcp-server network
add address=10.0.10.0/24 gateway=10.0.10.1
add address=10.0.100.0/24 gateway=10.0.100.1
add address=10.0.200.0/24 gateway=10.0.200.1
/system note
set show-at-login=no

I’m watched the tutorial of TheNetworkBerg of vlan. Can you please take a look at this?

gigabyte091 · August 4, 2024, 9:29am

Remove DHCP client from ether1, you are using that port for trunk towards cisco. What is function of that router ? Are you getting internet access trough it ? What device are you using ?

Azman1993 · August 4, 2024, 9:39am

This is cloud hosted router mikrotik i use gns3 for configure that bcs i want learn vlans on mikrotik
Ether1 is connected from router to switch
I know i can add firewall masquerade if i want to access to internet but I care more about the vlan configuration itself

gigabyte091 · August 4, 2024, 9:43am

Okay, so remove DHCP client from ether1 then, on Mikrotik side everything looks good.

Did you try to connect some clients ?

Azman1993 · August 4, 2024, 9:45am

I removed client ether1 from dhcp-clients. Ye i connected client and i get ip from pool dhcp

gigabyte091 · August 4, 2024, 10:33am

So that’s it, if you want to block interVLAN traffic you can do that using firewall rules.

Azman1993 · August 4, 2024, 10:51am

Oke, thanks for help all
Have nice day
