ISP --> netPower Lite 8P, Port SFP2
netPower Lite 8P, Port 2 --> hAP ax³, Port 1 (PoE)
netPower Lite 8P, Port 1 --> ReoLink PoE Camera
netPower Lite 8P, Port 3-8, SFP1 --> dumb IPTVs from ISP

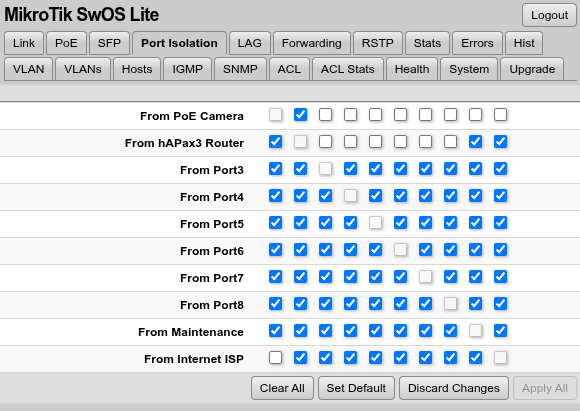

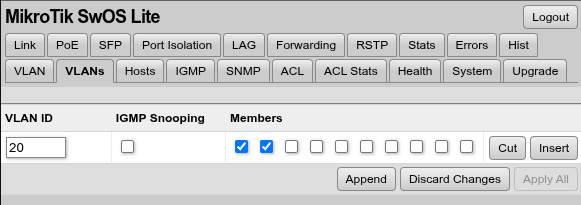

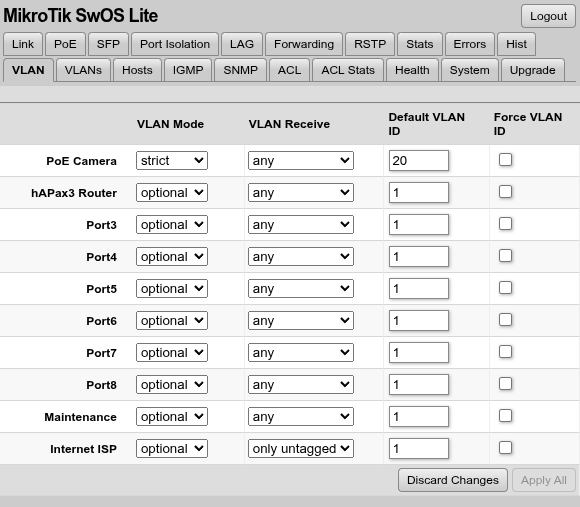

I want "netPower Lite 8P, Port 1" to appear as a device behind the hAP ax³'s NAT instead of beside the WAN, that includes having the ReoLink PoE Camera fetch a DHCP address as if it were plugged into any one of the NATed ports 2-5 on the hAP ax³. I already have the Port Isolation setup on the netPower Lite 8P so that Port 1 can only communicate with Port 2 and Port 2 can only communicate with SFP2 and Port 1. I'm considering using VLANs for this process. Would Policy Routing be the way to go? I am not sure of what is best. I’ve enclosed my hAP ax³ config as it was before I messed around with any solution.
# 2026-01-10 19:25:26 by RouterOS 7.20.7
# software id = UAZ3-2HCI
#
# model = C53UiG+5HPaxD2HPaxD
# serial number = HJD0A31JHRX
/interface bridge
add admin-mac=F4:1E:57:F3:7A:C3 auto-mac=no comment=defconf name=bridge
/interface wifi
set [ find default-name=wifi1 ] channel.skip-dfs-channels=10min-cac configuration.mode=ap .ssid=WiFi5 disabled=no security.authentication-types=\
wpa2-psk,wpa3-psk .ft=yes .ft-over-ds=yes
set [ find default-name=wifi2 ] channel.skip-dfs-channels=10min-cac configuration.mode=ap .ssid=WiFi2 disabled=no security.authentication-types=\
wpa2-psk,wpa3-psk .ft=yes .ft-over-ds=yes
add configuration.ssid=BeMyGuest5 disabled=no mac-address=F6:1E:57:F3:7A:C7 master-interface=wifi1 name=wifi3
add configuration.ssid=BeMyGuest2 disabled=no mac-address=F6:1E:57:F3:7A:C8 master-interface=wifi2 name=wifi4
/interface wireguard
add comment=back-to-home-vpn listen-port=47660 mtu=1420 name=back-to-home-vpn
/interface list
add comment=defconf name=WAN
add comment=defconf name=LAN
/ip pool
add name=dhcp ranges=192.168.1.30-192.168.1.254
/ip dhcp-server
add address-pool=dhcp interface=bridge name=defconf
/zerotier
set zt1 disabled=no disabled=no
/zerotier interface
add instance=zt1 name=zerotier1 network={redacted}
/disk settings
set auto-media-interface=bridge auto-media-sharing=yes auto-smb-sharing=yes
/interface bridge filter
add action=drop chain=forward in-interface=wifi3
add action=drop chain=forward out-interface=wifi3
add action=drop chain=forward in-interface=wifi4
add action=drop chain=forward out-interface=wifi4
/interface bridge port
add bridge=bridge comment=defconf interface=ether2
add bridge=bridge comment=defconf interface=ether3
add bridge=bridge comment=defconf interface=ether4
add bridge=bridge comment=defconf interface=ether5
add bridge=bridge comment=defconf interface=wifi1
add bridge=bridge comment=defconf interface=wifi2
add bridge=bridge interface=wifi3
add bridge=bridge interface=wifi4
/ip neighbor discovery-settings
set discover-interface-list=LAN
/interface detect-internet
set detect-interface-list=all
/interface list member
add comment=defconf interface=bridge list=LAN
add interface=ether1 list=WAN
/ip address
add address=192.168.1.1/24 comment=defconf interface=bridge network=192.168.1.0
/ip cloud
set back-to-home-vpn=enabled ddns-enabled=yes
/ip dhcp-client
add comment=defconf interface=ether1
/ip dhcp-server network
add address=192.168.1.0/24 comment=defconf dns-server=192.168.1.1 gateway=192.168.1.1 netmask=24
/ip dns
set allow-remote-requests=yes cache-size=20480KiB servers=1.1.1.1
/ip dns adlist
add ssl-verify=no url=https://raw.githubusercontent.com/StevenBlack/hosts/master/hosts
/ip dns static
add address=192.168.1.1 comment=defconf name=router.lan type=A
/ip firewall filter
add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
add action=accept chain=input comment="defconf: accept to local loopback (for CAPsMAN)" dst-address=127.0.0.1
add action=drop chain=input comment="defconf: drop all not coming from LAN" in-interface-list=!LAN
add action=accept chain=forward comment="defconf: accept in ipsec policy" ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" ipsec-policy=out,ipsec
add action=fasttrack-connection chain=forward comment="defconf: fasttrack" connection-state=established,related hw-offload=yes
add action=accept chain=forward comment="defconf: accept established,related, untracked" connection-state=established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid
add action=drop chain=forward comment="defconf: drop all from WAN not DSTNATed" connection-nat-state=!dstnat connection-state=new in-interface-list=WAN
/ip firewall nat
add action=masquerade chain=srcnat comment="defconf: masquerade" ipsec-policy=out,none out-interface-list=WAN
/ipv6 firewall address-list
add address=::/128 comment="defconf: unspecified address" list=bad_ipv6
add address=::1/128 comment="defconf: lo" list=bad_ipv6
add address=fec0::/10 comment="defconf: site-local" list=bad_ipv6
add address=::ffff:0.0.0.0/96 comment="defconf: ipv4-mapped" list=bad_ipv6
add address=::/96 comment="defconf: ipv4 compat" list=bad_ipv6
add address=100::/64 comment="defconf: discard only " list=bad_ipv6
add address=2001:db8::/32 comment="defconf: documentation" list=bad_ipv6
add address=2001:10::/28 comment="defconf: ORCHID" list=bad_ipv6
add address=3ffe::/16 comment="defconf: 6bone" list=bad_ipv6
/ipv6 firewall filter
add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
add action=accept chain=input comment="defconf: accept ICMPv6" protocol=icmpv6
add action=accept chain=input comment="defconf: accept UDP traceroute" dst-port=33434-33534 protocol=udp
add action=accept chain=input comment="defconf: accept DHCPv6-Client prefix delegation." dst-port=546 protocol=udp src-address=fe80::/10
add action=accept chain=input comment="defconf: accept IKE" dst-port=500,4500 protocol=udp
add action=accept chain=input comment="defconf: accept ipsec AH" protocol=ipsec-ah
add action=accept chain=input comment="defconf: accept ipsec ESP" protocol=ipsec-esp
add action=accept chain=input comment="defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=input comment="defconf: drop everything else not coming from LAN" in-interface-list=!LAN
add action=fasttrack-connection chain=forward comment="defconf: fasttrack6" connection-state=established,related
add action=accept chain=forward comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid
add action=drop chain=forward comment="defconf: drop packets with bad src ipv6" src-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: drop packets with bad dst ipv6" dst-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: rfc4890 drop hop-limit=1" hop-limit=equal:1 protocol=icmpv6
add action=accept chain=forward comment="defconf: accept ICMPv6" protocol=icmpv6
add action=accept chain=forward comment="defconf: accept HIP" protocol=139
add action=accept chain=forward comment="defconf: accept IKE" dst-port=500,4500 protocol=udp
add action=accept chain=forward comment="defconf: accept ipsec AH" protocol=ipsec-ah
add action=accept chain=forward comment="defconf: accept ipsec ESP" protocol=ipsec-esp
add action=accept chain=forward comment="defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=forward comment="defconf: drop everything else not coming from LAN" in-interface-list=!LAN
/system clock
set time-zone-name=America/Denver
/system package update
set channel=long-term
/system routerboard mode-button
set enabled=yes on-event=dark-mode
/system routerboard wps-button
set enabled=yes on-event=wps-accept
/system script
add comment=defconf dont-require-permissions=no name=dark-mode owner=*sys policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source="\r\
\n :if ([system leds settings get all-leds-off] = \"never\") do={\r\
\n /system leds settings set all-leds-off=immediate \r\
\n } else={\r\
\n /system leds settings set all-leds-off=never \r\
\n }\r\
\n "
add comment=defconf dont-require-permissions=no name=wps-accept owner=*sys policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source="\r\
\n :foreach iface in=[/interface/wifi find where (configuration.mode=\"ap\" && disabled=no)] do={\r\
\n /interface/wifi wps-push-button \$iface;}\r\
\n "
/tool mac-server
set allowed-interface-list=LAN
/tool mac-server mac-winbox
set allowed-interface-list=LAN
