japanese localization (device names show as boxes)

RouterOS The Dude
1

hi

i’m thinking about the practicalities of doing a japanese localization, which doesn’t seem to have been attempted yet

the menus seem to show up ok in utf-8, but device names don’t appear to want to display as japanese characters, only as boxes

have i missed something?

2

further to the above, if anybody viewing this thread could tell me, i’d be very grateful:

is the name field for the device, as shown on a map, capable of displaying all utf-8 characters?

i’d like to know if anyone using any other non-roman alphabet has got this to work

thanks

3

Hello
nice meet you.
i make for Korean language file about 30%…
you must download base language files and then Convert to UTF-8
Link : http://download.mikrotik.com/dude/4.0beta3/strings-4.0beta3.txt

and I upload a Korean Dude capture..
I have a same problem
And I want you to also support Japanese and Korean New Dude…
this opinion pass on MikroTik…
Please..


4

hi there

thanks for your reply & the information

i can see you are having the same problem as i am …

i’ve marked this post as a bug report in the hope that someone from MikroTik Technical Support will see it and respond

regards

urnacotalteronsolepi

5

I found solution!!

first, upload a some font in Dude
and go to the Setting-> map->Device Appearance
and then Change the Font…!

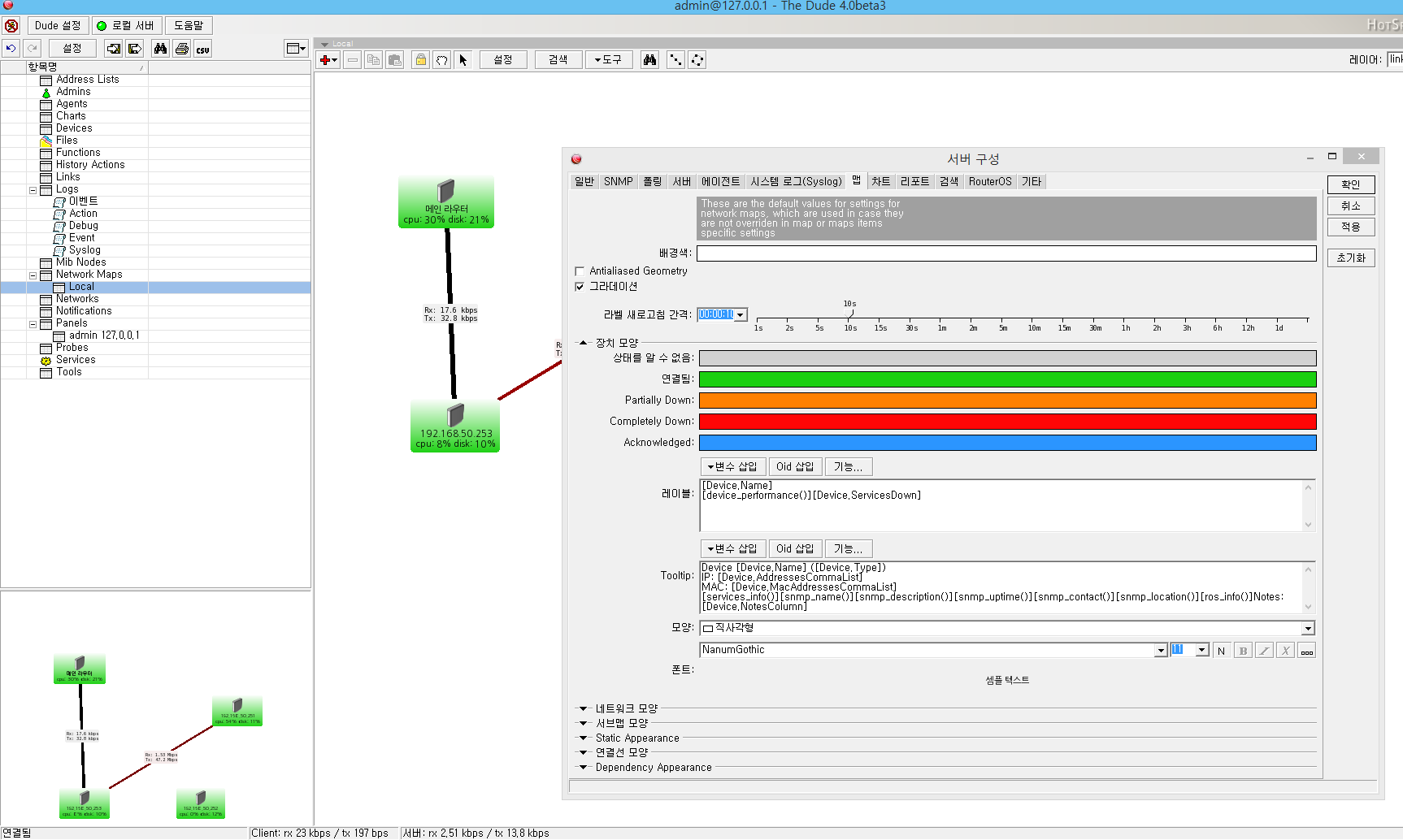

Here is resolved capture.
Have a Good Luck…!

PS. Also change the font in another tab makes completely


6

leetw302

thanks very much for the information

i’m trying to add a font but the dude doesn’t seem to like it :frowning:

i’ll keep trying

all the best!

urnacotalteronsolepi

7

I run on ROS 6.37.4 and it works for short time.
When I restart system or reconnect with dude-client in 2 or 3 times, the uploaded font file is disappear again.
Does anyone have the solutions?
Thanks a lot!
