Hello,


I am the proud owner of a Knot LR8 since a few days. I’ve searched and searched, but I can’t find any precise information about the LEDs on the side of the case. The meaning of some are obvious (power…); for others it’s more cryptic, and even more so if you take into account the fixed or flashing states.

Do you know where I can find information on this subject?

2

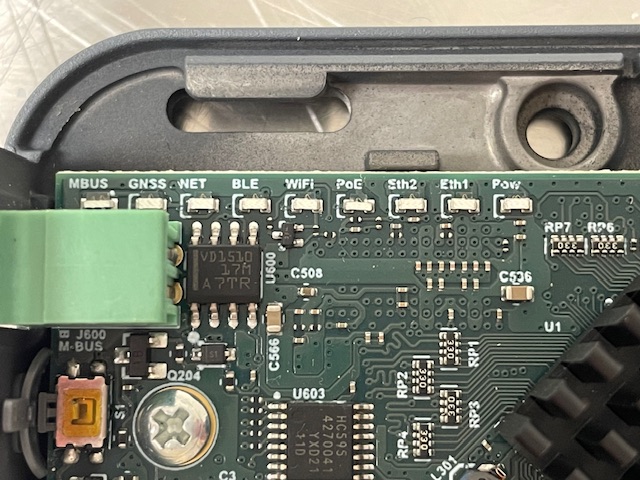

I spent some time trying to figure it out. Ultimately I opened the device, and it was written on the PCB. It turns out that the one I could not guess is ModBus.
