l2tp/ipsec +win10 [tested and working]

RouterOS General
1

As many on this forum I’ve run into multiple issues trying to figure out howto make a win10 machine to auth to a mikrotik l2tp/ipsec server.

P.S. this setup allow both: android + win10 clients to auth.


“Official” Mikrotik tutorials => failed miserable
Others sources => partially success

So, after mixing all the info together:

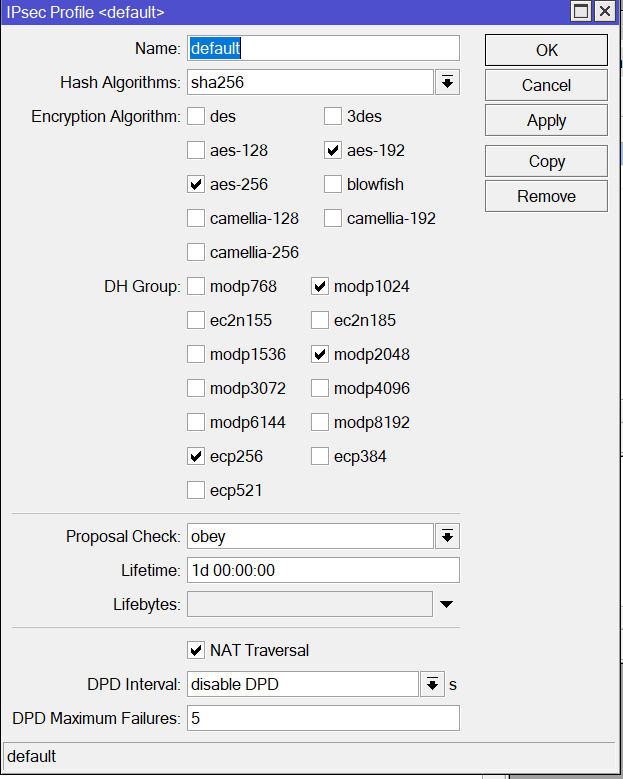

Now, 2ndpart => after creating the vpn configuration ( enable strong algorithms) NO SHA1::

Start powershell( Administrator mode)

Set-VpnConnectionIPsecConfiguration -AuthenticationTransformConstants SHA256128 -CipherTransformConstants AES256 -ConnectionName <name_of_vpn_connection> -DHGroup ECP256 -EncryptionMethod AES256 -IntegrityCheckMethod SHA256 -PfsGroup ECP256

..and WORKING !!
