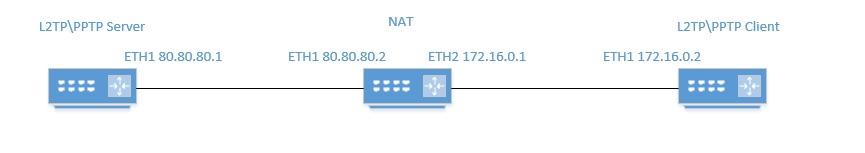

Greetings. I have issue with Mikrotik acting as a PPTP\L2TP client when it is behind NAT. Here is my setup(ITS a test environment with CHR’s on VirtualBox):
The problem is that Client wont connect to Server. When i try to monitor connections on a NAT router there is nothing. Literally. No connections to 80.80.80.1 from 172.16.0.2. The PPTP\L2TP interface receive strange ip’s
2 D 10.64.64.89/32 10.112.112.137 l2tp-out1
LOG output
09:29:57 l2tp,ppp,info l2tp-out1: initializing...
09:29:57 l2tp,ppp,debug l2tp-out1: IPCP demandUp
09:29:57 l2tp,ppp,info l2tp-out1: waiting for packets...
Debug log
09:34:47 route,debug,event Interface change
09:34:47 route,debug,event interface=l2tp-out1
09:34:47 route,debug,event status=UP,RUNNING
09:34:47 route,debug,event mtu=1500
09:34:47 route,debug,event Interface change
09:34:47 route,debug,event interface=l2tp-out1
09:34:47 route,debug,event status=UP,RUNNING
09:34:47 route,debug,event mtu=1500
09:34:47 route,debug,calc Begin calculation
09:34:47 route,debug,event Link up
09:34:47 route,debug,event interface=l2tp-out1
09:34:47 route,debug,event Update
09:34:47 route,debug,event interface=l2tp-out1
09:34:47 route,debug,event Added candidate route
09:34:47 route,debug,event dst-prefix=0.0.0.0/0
09:34:47 route,debug,event attributes
09:34:47 route,debug,event protocol=DYNAMIC
09:34:47 route,debug,event distance=3
09:34:47 route,debug,event scope=30
09:34:47 route,debug,event target-scope=10
09:34:47 route,debug,event next-hop= address=10.112.112.136
09:34:47 route,debug,event origin-type=DYNAMIC
09:34:47 route,debug,calc Select route
09:34:47 route,debug,calc dst-address=0.0.0.0/0
09:34:47 route,debug,calc attributes
09:34:47 route,debug,calc protocol=STATIC
09:34:47 route,debug,calc distance=1
09:34:47 route,debug,calc scope=30
09:34:47 route,debug,calc target-scope=10
09:34:47 route,debug,calc next-hop= address=172.16.0.1
09:34:47 route,debug,calc comment=
09:34:47 route,debug,calc origin-type=STATIC
09:34:47 route,debug,calc End calculation
09:34:47 route,debug Begin redistribution
09:34:47 route,debug Skip update 0.0.0.0/0
09:34:47 route,debug End redistribution
09:34:48 route,debug,calc Begin calculation
09:34:48 route,debug,event Address added or changed
09:34:48 route,debug,event local=10.64.64.88
09:34:48 route,debug,event network=10.112.112.136/32
09:34:48 route,debug,event interface=l2tp-out1
09:34:48 route,debug,event Added candidate route
09:34:48 route,debug,event dst-prefix=10.112.112.136/32
09:34:48 route,debug,event attributes
09:34:48 route,debug,event protocol=CONNECT
09:34:48 route,debug,event distance=0
09:34:48 route,debug,event scope=10
09:34:48 route,debug,event target-scope=0
09:34:48 route,debug,event connected-net= address=10.64.64.88/32 interface=l2tp-out1
09:34:48 route,debug,event routing-mark=main
09:34:48 route,debug,event table=main
09:34:48 route,debug,event origin-type=CONNECTED
09:34:48 route,debug,calc Tag next hop for recalculation
09:34:48 route,debug,calc address=10.112.112.136
09:34:48 route,debug,calc Select route
09:34:48 route,debug,calc dst-address=10.112.112.136/32
09:34:48 route,debug,calc attributes
09:34:48 route,debug,calc protocol=CONNECT
09:34:48 route,debug,calc distance=0
09:34:48 route,debug,calc scope=10
09:34:48 route,debug,calc target-scope=0
09:34:48 route,debug,calc connected-net= address=10.64.64.88/32 interface=l2tp-out1
09:34:48 route,debug,calc routing-mark=main
09:34:48 route,debug,calc table=main
09:34:48 route,debug,calc origin-type=CONNECTED
09:34:48 route,debug,calc Next hop resolved
09:34:48 route,debug,calc address=10.112.112.136
09:34:48 route,debug,calc route=10.112.112.136/32
09:34:48 route,debug,calc immediate-address=10.112.112.136
09:34:48 route,debug,calc interface=l2tp-out1
09:34:48 route,debug,calc Select route
09:34:48 route,debug,calc dst-address=0.0.0.0/0
09:34:48 route,debug,calc attributes
09:34:48 route,debug,calc protocol=STATIC
09:34:48 route,debug,calc distance=1
09:34:48 route,debug,calc scope=30
09:34:48 route,debug,calc target-scope=10
09:34:48 route,debug,calc next-hop= address=172.16.0.1
09:34:48 route,debug,calc comment=
09:34:48 route,debug,calc origin-type=STATIC
09:34:48 route,debug,calc End calculation
09:34:48 route,debug Begin redistribution
09:34:48 route,debug Accept add 10.112.112.136/32
09:34:48 route,debug Skip update 0.0.0.0/0
09:34:48 route,debug Commit prefix 10.112.112.136/32
09:34:48 route,debug End redistribution

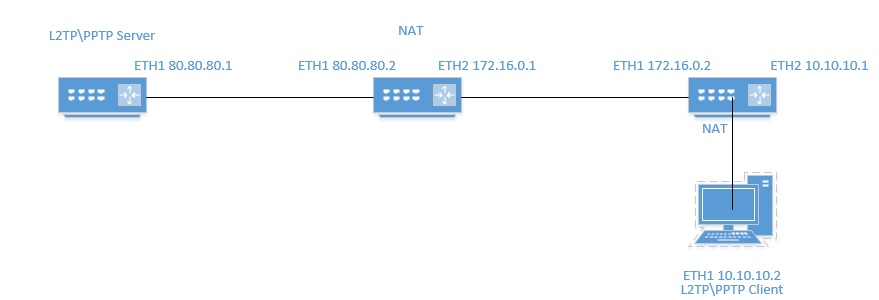

To see if the issue is in Mikrotik L2TP\PPTP client i have added a windows PC as a client.
Now the setup looks like this.
And it works just fine! I am able to connect, receive ip address and to ping the other end of the tunnel.
All routers is set to ACCEPT 0.0.0.0/0 on INPUT.
Settings for L2TP mikrotik client:
/interface l2tp-client
add allow=mschap1,mschap2 connect-to=80.80.80.1 dial-on-demand=yes disabled=no ipsec-secret=test mrru=\
1500 name=l2tp-out1 password=ppp1 profile=test_profile use-ipsec=yes user=ppp1
/ppp profile
add change-tcp-mss=yes name=test_profile use-encryption=yes use-mpls=no
/ppp profile print
Flags: * - default
0 * name="default" use-mpls=default use-compression=default use-encryption=default only-one=default
change-tcp-mss=yes use-upnp=default address-list="" on-up="" on-down=""
1 name="test_profile" use-mpls=no use-compression=default use-encryption=yes only-one=default
change-tcp-mss=yes use-upnp=default address-list="" on-up="" on-down=""
Mikrotik Server config
/interface l2tp-server server
set authentication=mschap1,mschap2 enabled=yes ipsec-secret=test use-ipsec=yes
ppp secret print detail
Flags: X - disabled
0 name="ppp1" service=l2tp caller-id="" password="ppp1" profile=default-encryption local-address=192.168.10.1
remote-address=192.168.10.2 routes="" limit-bytes-in=0 limit-bytes-out=0 last-logged-out=dec/09/2016 10:28:11
ppp profile print
Flags: * - default
0 * name="default" use-mpls=default use-compression=default use-encryption=default only-one=default change-tcp-mss=yes use-upnp=default
address-list="" on-up="" on-down=""
1 * name="default-encryption" use-mpls=default use-compression=default use-encryption=yes only-one=default change-tcp-mss=yes
use-upnp=default address-list="" on-up="" on-down=""
Can someone help me to resolve this problem? Trying to figure this out for a few days now. PPTP Client acts the same. It’s just as it is not even trying to connect. When I “Torch” the interface ETH2 on NAT router there is no packets for 80.80.80.1. Firewall->Connections shows nothing too.
