L2TP VPN not working after change to CCR2116 and ROS7.17rc6

RouterOS General
1

With ROS 7.17rc6 i can’t connect L2TP with PSK to MikroTik router CCR2116-12G-4S+.
I can connect to other MT routers with that verion, but NOT to CCR2116 with VLAN interfaces(see attached screenschot).
VLAN1- is WAN, VLAN3- LAN. CCR2116 is connected to CRS305 with SFF interfaces.

LOG from CCR2116:
respond new phase 1 (Identity Protection): 83.xxx.xxx.xxx[500]<=>37.47.xxx.xxx[8730]
ISAKMP-SA established 83.xxx.xxx.xxx[4500]-37.xxx.xxx.xxx[16146] spi:cc6366dae0274db6:4ef419c203705487
first L2TP UDP packet received from 37.xxx.xxx.xxx
first L2TP UDP packet received from 37.xxx.xxx.xxx
<37.xxx.xxx.xxx>: authentication failed: peer didn’t respond to CHAP challenge
purging ISAKMP-SA 83.xxx.xxx.xxx[4500]<=>37.xxx.xxx.xxx[16146] spi=cc6366dae0274db6:4ef419c203705487.
ISAKMP-SA deleted 83.xxx.xxx.xxx[4500]-37.xxx.xxx.xxx[16146] spi:cc6366dae0274db6:4ef419c203705487 rekey:1

Please help. L2TP VPN is very important for me.

2

Something is wrong with IPSEC at ROS 7.17rc6…

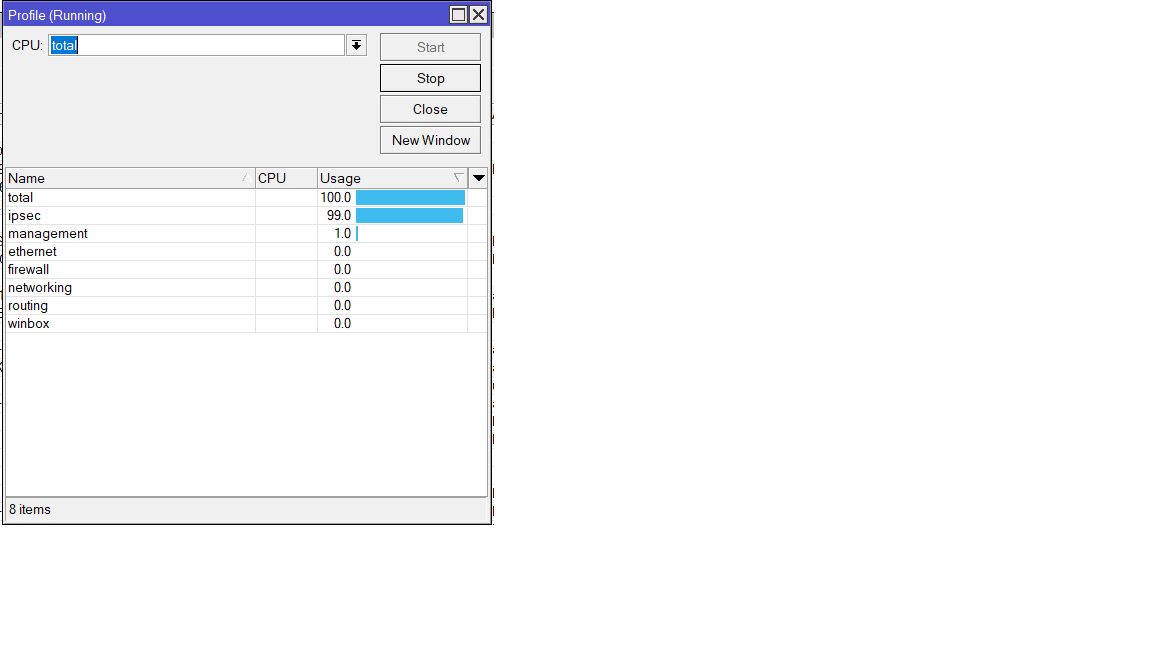

At another machine (x86) with ROS 7.17rc6 - there is non-stop 100% CPU (see screenschot) - when there is no VPN or any other IPSEC connetion to that router!!!
Does anyone has problem with VPN’s on taht ROS version?

3

MikroTik team repaired that problem, and now at ROS ver 7.17rc8 it works (L2TP with IPSEC on CCR2116). Thank You MikroTik!

4

Good day

I am having problems when I try to use IPsec with a L2TP connection, I have ports 4500,500,1701, protocol 50 (ipsec-esp) and 51 (ipsec-ah), phase 1 never passes. If I disable IPsec, the VPN works.
I’m not sure what’s going on with this new version of RouterOS.

I really appreciate your help.
