LAN to WAN - HAPlite

RouterOS General
1

Hi,

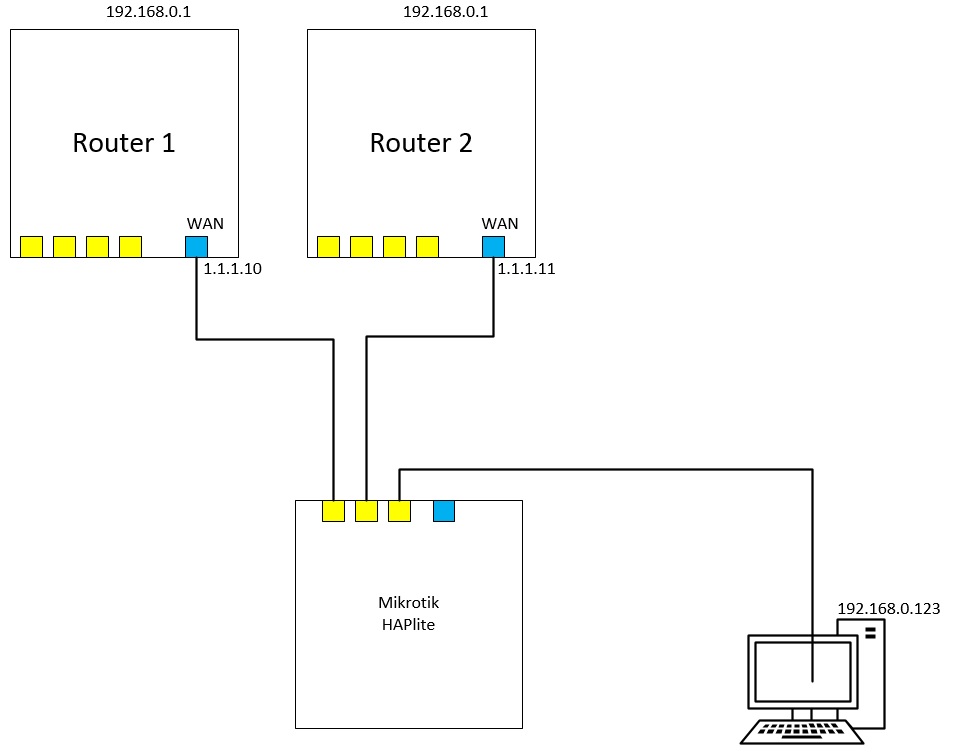

Please could have a look at the attached diagram and let me know if t’s
possible to access Router 1’s and Router 2’s main configuration web
page i.e. on the PC if I key in http://1.1.1.10 (via IE/Chrome), can I
get access to Router 1’s configuration page? It should be similar to
what i would see if the PC were linked directly to Router1/Router2 and
entering 192.168.0.1 on IE/Chrome.

Constraint/Requirement: I cannot alter/pre configure router 1’s & 2’s settings.

Is it possible to configure HAPlite in this manner?

Thanks in advance.



James.

2

If router1 and router2 are in default hAP/hEX configuration where the firewall only allows management connection from LAN ports, or if the administrator has configured their firewall and has done it properly, there is no way to gain web or other management access to them via WAN ports.
