Latvia Bite 3G on routerboard 411

RouterOS Beginner Basics
1

Hi!
Can someone to help
I trying to configure 3g connection for Latvia Bite mobile carrier.
Model: routerboard 411u
3g Modem: Sierra Wireless MC8790(supported) (pci card)
RouterOS: 6,22
Bios 3,18
If I enter

system resource usb print

command in terminal I see

 # DEVICE VENDOR                   NAME                  SPEED
 0 2:1    Linux 3.3.5 ohci_hcd     RB400 OHCI            12 Mbps
 1 2:2    Sierra Wireless, Inco... Mini Card             12 Mbps
 2 1:1    Linux 3.3.5 ehci_hcd     RB400 EHCI            480 Mbps

Does it means that RouterOS correctly identified my 3g modem?

I don’t know what ppp client parametrs I have to use to make connection

/interface ppp-client export




# nov/23/2014 10:57:03 by RouterOS 6.22
# software id = 9BXB-AY0W
#
/interface ppp-client
add add-default-route=yes allow=pap,chap,mschap1,mschap2 apn=internet \
    data-channel=0 default-route-distance=0 dial-command="" dial-on-demand=no \
    disabled=yes info-channel=0 keepalive-timeout=10 max-mru=1500 max-mtu=\
    1500 modem-init="" mrru=disabled name=gsm null-modem=no password="" \
    phone=*99***1# pin="" port=usb2 profile=default use-peer-dns=yes user=""

IMEI is clear. PIN code removed from sim card. 3g work if I insert it on mobile phone.

If I try use SCAN button It doesn’t see anything.

2

scan command might not work on all the 3g modems.
Try to check which port is responding to the AT commands
here look at this reference manual section:
http://wiki.mikrotik.com/wiki/Option_Globetrotter_HSDPA_USB_Modem
Also make sure you specify the correct APN.

3

Yes I read this manual but when I try

[admin@MikroTik] > /port print
Flags: I - inactive
 #   DEVICE NAME                     CHANNELS USED-BY                   BAUD-RATE
 0          serial0                         1 Serial Console            auto
 1   2:2    usb2                            7 PPP <gsm>                 9600

As I understand 7th port should response? But no response starting from 0 till 8 port I see

/system serial-terminal usb2 channel=1

[Ctrl-A is the prefix key]



[Q - quit connection]      [B - send break]
[A - send Ctrl-A prefix]   [R - autoconfigure rate]



Welcome back!

or

/system serial-terminal usb2 channel=9
failure: no such channel
4

APN = internet Phone=*99# those now approved by gsm operator They said those are enough
Now my parametrs

/interface ppp-client export
# nov/23/2014 13:02:26 by RouterOS 6.22
# software id = 9BXB-AY0W
#
/interface ppp-client
add add-default-route=yes allow=pap,chap,mschap1,mschap2 apn=internet \
    data-channel=0 default-route-distance=0 dial-command="" dial-on-demand=no \
    disabled=no info-channel=0 keepalive-timeout=10 max-mru=1500 max-mtu=1500 \
    modem-init="" mrru=disabled name=gsm null-modem=no password="" phone=*99# \
    pin="" port=usb2 profile=default use-peer-dns=yes user=""
5

If it doesn’t reply and dont show anything /system serial-terminal usb2 channel command may be something wrong with hardware

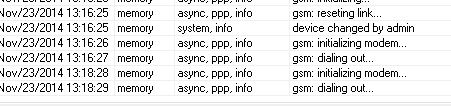

When I changed Data chanel = 3 on log I see on logs (capture 3)

6

Which 3g model can you recoment to use in my case? I need it be connected via MiniPCI-e
Or I can choose any from official hcl where no any coments?
Thanks

7

try to test the channels from 0-6 to check which of them answers the simple AT command when you use /system serial-terminal.
After that specify those working channels for the info/data channels in the ppp-client. You maybe need to try multiple of them to check which can be used as a info and which as a data channel.
Also try to enable the async,debug logging in the system logging so you would see mode detailed debug information when the the interface tries to connect.

8
/system serial-terminal usb2 channel=0
failure: port's channel is already in use
/system serial-terminal usb2 channel=1
failure: port's channel is already in use
/system serial-terminal usb2 channel=2
failure: port's channel is already in use
/system serial-terminal usb2 channel=3
failure: port's channel is already in use

When I try channels started from 4 Terminal don’t show anything until I press Ctrl+A and Q after. But by the manual command should give gsm module name

 /system serial-terminal usb2 channel=4

[Ctrl-A is the prefix key]



[Q - quit connection]      [B - send break]
[A - send Ctrl-A prefix]   [R - autoconfigure rate]



Welcome back!

The same situation with channels 5,6,7

I enabled async logging

09:18:19 async,ppp,info gsm: initializing modem...
09:18:20 async,ppp,info gsm: dialing out...
09:18:20 async,debug usb2:3: sent AT+CGDCONT=1,"IP","internet"
09:18:20 async,debug usb2:3: rcvd OK
09:18:20 async,debug usb2:3: sent *99#
09:20:20 async,debug usb2:3: dial timeout
09:20:20 async,debug usb2:3: resetting modem
09:20:21 async,debug usb2:3: sent ATH
09:20:21 async,debug usb2:3: rcvd OK
09:20:21 async,ppp,info gsm: initializing modem...
09:20:22 async,ppp,info gsm: dialing out...
09:20:22 async,debug usb2:3: sent AT+CGDCONT=1,"IP","internet"
09:20:22 async,debug usb2:3: rcvd OK
09:20:22 async,debug usb2:3: sent *99#
09:22:22 async,debug usb2:3: dial timeout
09:22:22 async,debug usb2:3: resetting modem
09:22:23 async,debug usb2:3: sent ATH
09:22:23 async,debug usb2:3: rcvd OK
09:22:23 async,ppp,info gsm: initializing modem...
09:22:24 async,ppp,info gsm: dialing out...
09:22:24 async,debug usb2:3: sent AT+CGDCONT=1,"IP","internet"
09:22:24 async,debug usb2:3: rcvd OK
9

I don’t know what a magic but now I have status connected Yeeeeaaah :slight_smile: Thanks for help to all

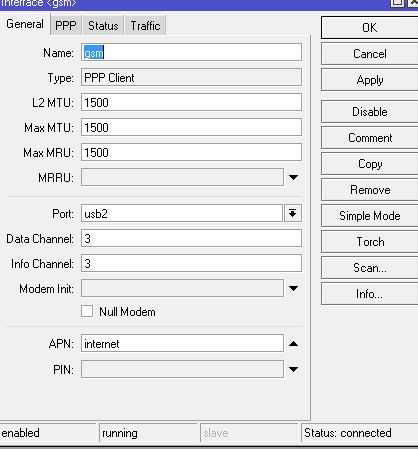

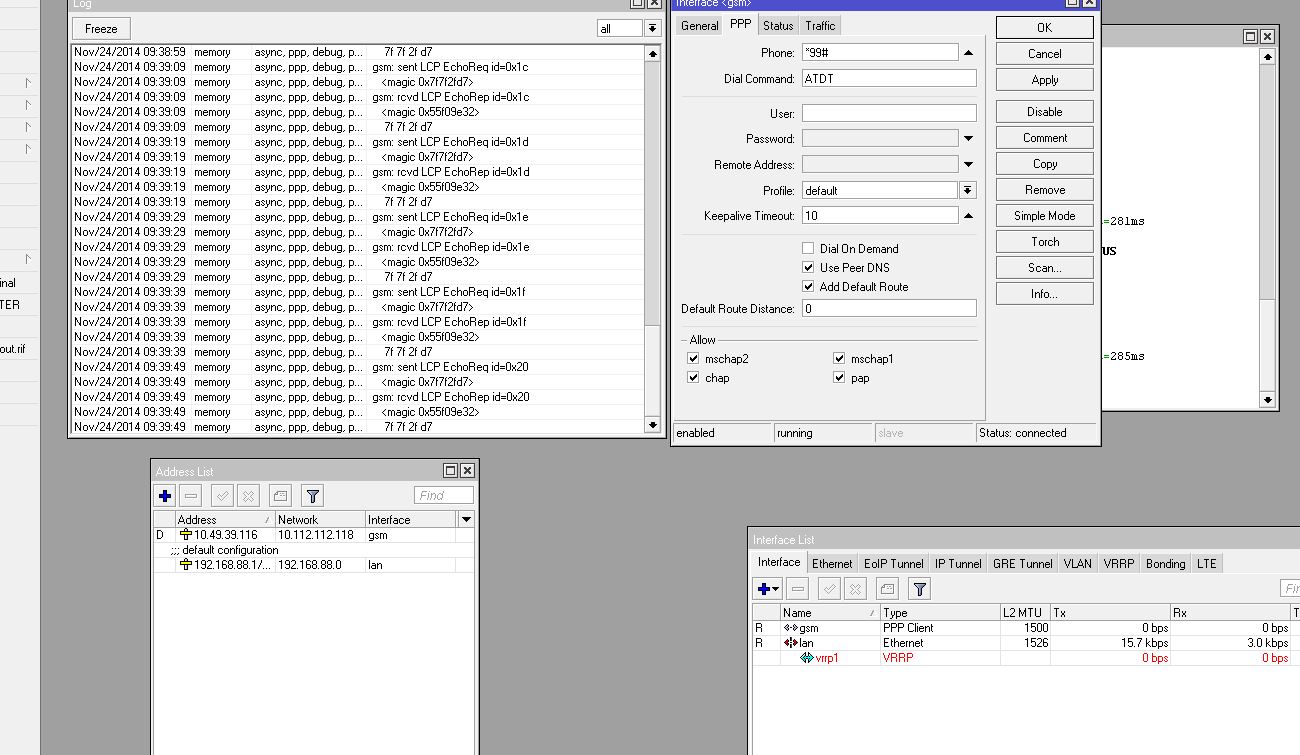

Current setting you can see on screenshots May be info will be usefull for others

10

do you still working with bite on modem + mikrotik
