Hi,
Currently we have a Mikrotik with its WAN on VLAN 1000 going to an access point, which then provides wireless internet.
The same person who setup the wireless access point, has now put some cameras linking in to an access point, which then links directly to the access point which connects to the Mikrotik WAN. this traffic is carried across VLAN 3000.
I can see the camera IP’s with a multicast destination on the Mikrotik, but cannot access them. (Attached as torch_VLAN3000)
What we aim to do is below, What we have tried to do is the following: (Attached as Bridge_Setup)
LAN IP=192.168.5.0/24
/interface bridge settings
set use-ip-firewall=yes
set use-ip-firewall-for-vlan=yes
No-NAT’ed the local traffic
Added VLAN 3000 into the current bridge, and also to ether1 (WAN)

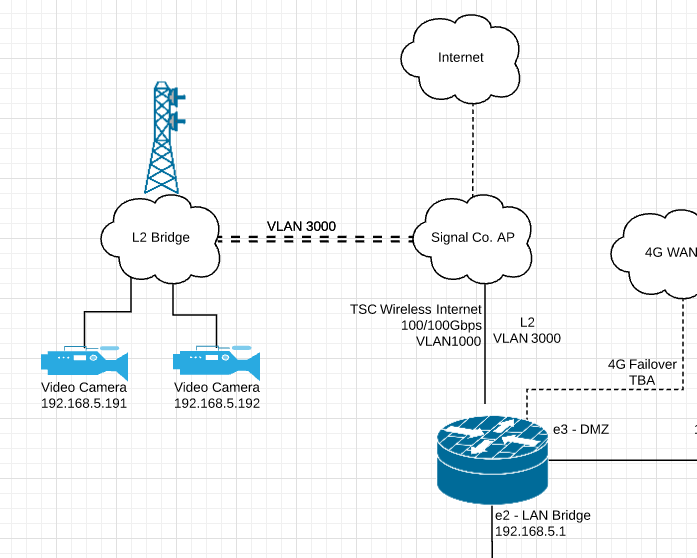

What we would like to have working is attached as (VLAN_Setup)
