LHG 5AC

Hi

Any opinions?
I deployed one at night (replaced one SXT Lite5 on p2p link) and on stock ROS it was unusable - rebooted each time i changed somenthing in wireless and loosed these changes.
On current 6.41 is better i see higher latency but it can be related to interferences.
Signals looks better than on SXT more symetric and stable, on btest it can transfer more in N :wink:

Tomorrow i replace second SXT.

Please Test NV2
What IPQ is used for LHG ac?

Wireless (Atheros IPQ4019)
Currently i use nstreme.
On 6.41 i have issues too with reboot and unsaved changes on wireless interface modifications. It worked on lab if wireless is not connected but after deployment and link connect i cant change settings.

Second LHG 5AC on lab is working perfect but wireless interface is not connected, will see tomorrow.

inform us about performance plz :slight_smile:
at what distance do you use them?
i currently run atom boards, but comparing to IPQ CPU seems it should be better

Distance: ~330m

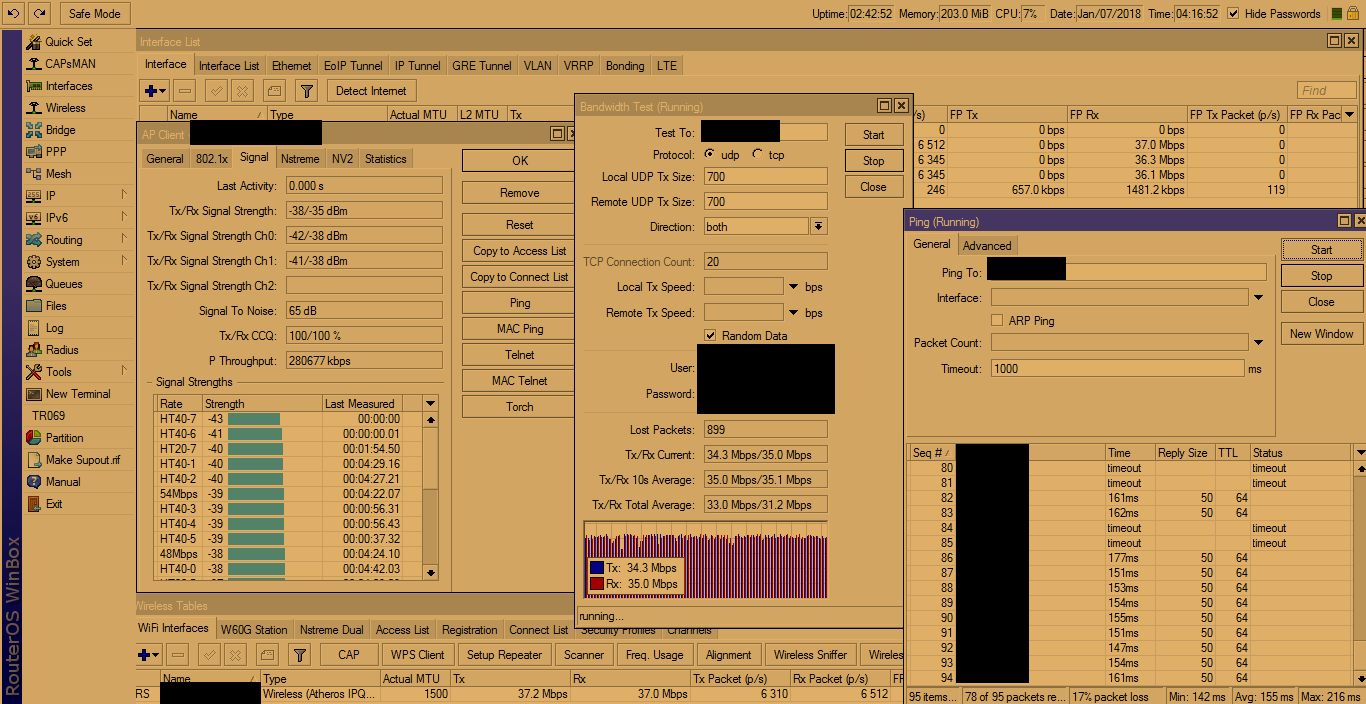

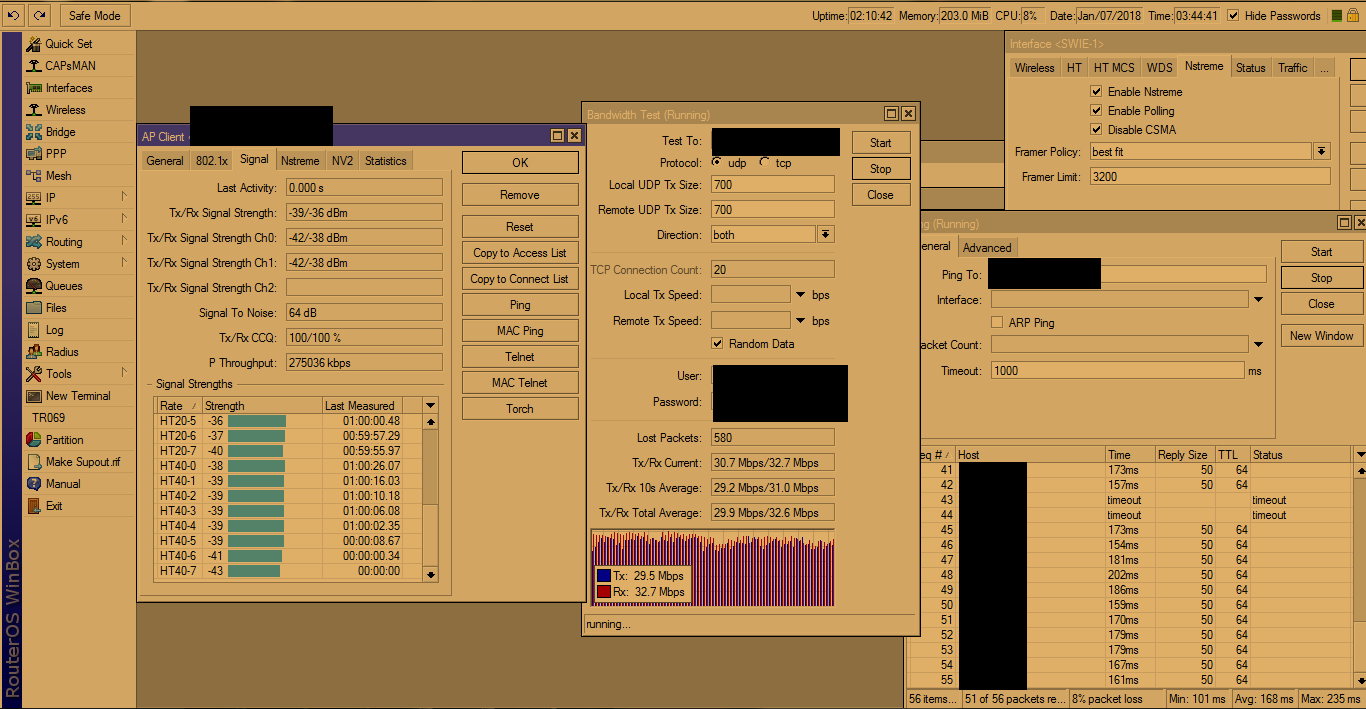

btest LHG AC β†’ wireless n nstreme β†’ SXT Lite5 β†’ switch tplink β†’ gigabit fiber β†’ switch tplink β†’ rb750r2
ping LHG AC β†’ wireless n nstreme β†’ SXT Lite5 β†’ switch tplink β†’ omnitik
Small real traffic and OSPF communication goes thru link in parallel with btest, fiber have more free badhwith than needed :wink:

35Mbps? Well that sucks :frowning:

With 802.11 n device on one side, this tells nothing…

very bad :frowning:

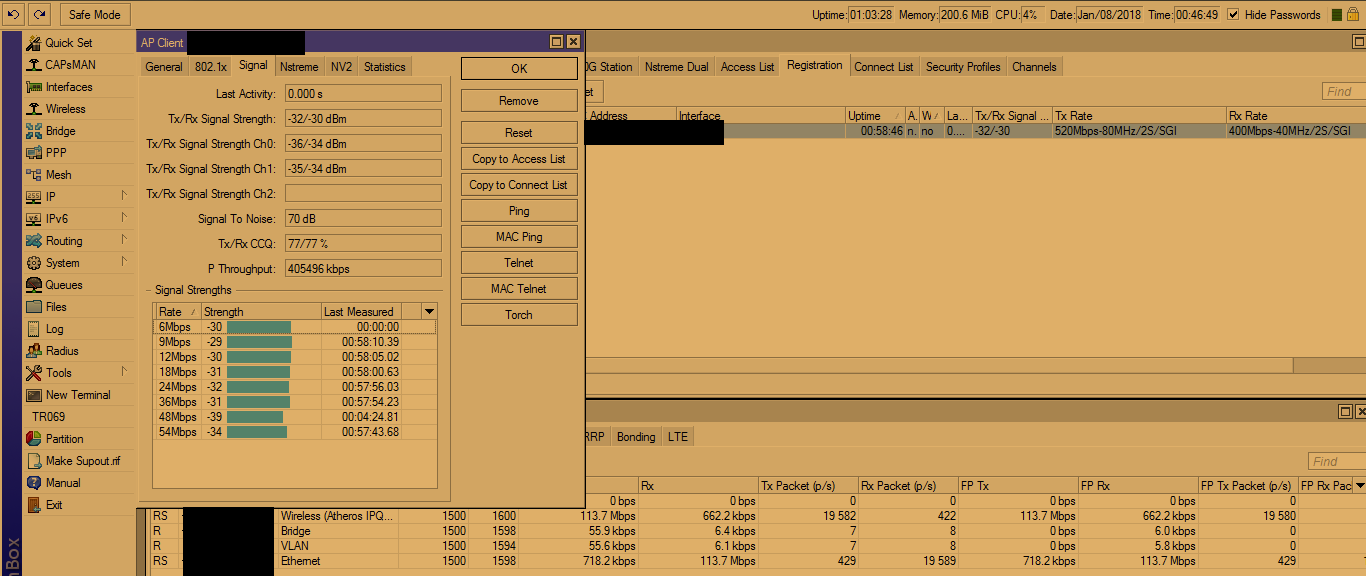

Ok i replaced second sxt:
Due to bugs in ROS: channel, tx power etc is not optimized. On current channel we have many interferences.

MT Support recommended to update to 6.42rc4 i updated to 6.42rc6 and change wireless settings works now. I tested nstreme, nv2 and 802.11 in AC on nstreme and nv2 it was unstable - frequent and random disconnections, traffic stops and wireless tx 6M.

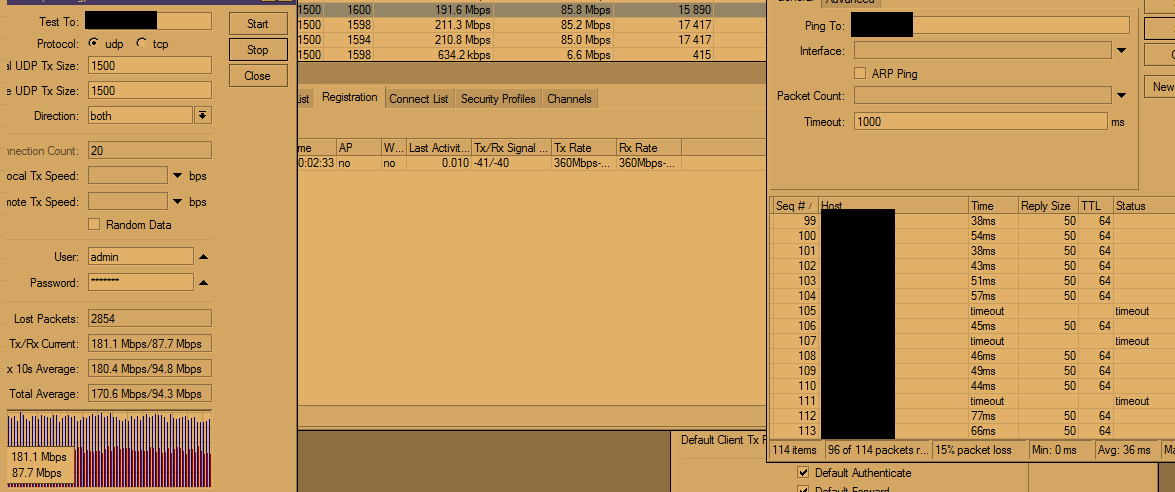

In attachment test on 802.11 AC 20/40

Limit you Power about 12-15db to get -55 / -55
And test speed again!
