Links between neighbor devices

RouterOS The Dude
1

Hi!

May be it’s a newbie question, but I didn’t find how i can make auto addition of links between neighbor devices. They are only connected to subnet cloud.
Is it possible?

Thanks in advance=)

2

but are they directly connected, or they are connected to switch? I think correct way is to display them as on the same network, not connected together.

3

Thanks for quick reply!

Devices are connected to the switch and some devices between each other. But how can i see topology and through which interfaces they are connected?

4

I’ve found the topic http://forum.mikrotik.com/t/cant-get-links-to-show-automatically-between-switches/54469/1 that duplicates mine. And people say that The Dude don’t support auto addition of links between devices, only to ip cloud. Is it right?

5

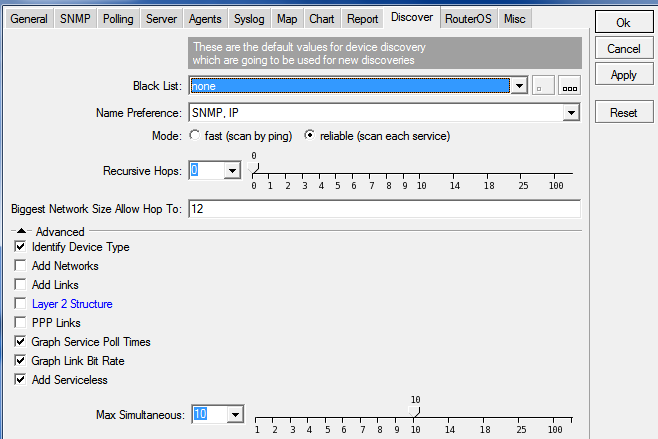

Did you check auto discover settings? What does add networks add links and layer 2 structure do? Sorry I don’t use auto discover so you might need to do some testing.
HTH,
Lebowski

6

I think normis says right in general, but i thought may some feature exists like Cisco CDP. I saw topic in which people upload their network maps. Are they manually add links between network devices or not i don’t understand. Will try to ask there=)

7

I have always added the links between devices manually. I used autodiscover once or twice when I first started using The Dude but only got the devices connecting to a subnet as you have experienced.
