Looking for advice on port forwarding for a web-server

RouterOS General
1

Hi guys,

I have a Mikrotik RB4011iGS+ router and we have a public IP (static). We have a CentOS server (local) which is connected to the Mikrotik. We want to host some websites locally and let people access them from external networks.

According to the CyberPanel (on the CentOS server), we need to open the following ports for everything to work properly.

  • TCP: 8090 for CyberPanel
    TCP: 80, TCP: 443 and UDP: 443 for webserver
    TCP: 21 and TCP: 40110-40210 for FTP
    TCP: 25, TCP: 587, TCP: 465, TCP: 110, TCP: 143 and TCP: 993 for mail service
    TCP: 53 and UDP: 53 for DNS service

I have added this in the router but no one seems to be able to connect to port 80, 443 from external networks. Am I doing something wrong ?
PS. I’m a software engineer and I do not have too much experience in networking.
Thanks in advance.

own3r1138 2


3

Thanks mate. Apparently the issue was with my ISP. They were blocking port 80 & 443. I was able to get everything to work by calling the ISP and unlocking the ports.

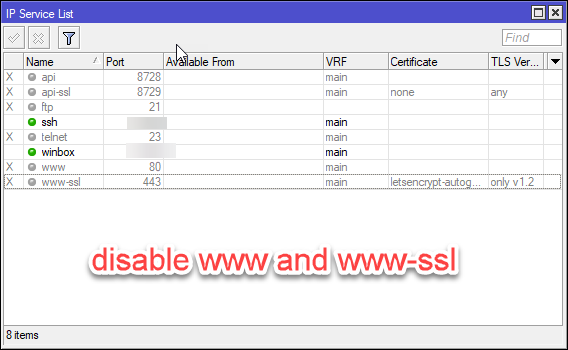

But the screenshots you provided were accurate and works well.
